Steel wheel rim production line for passenger car, tractors, truck and so on
PRODUCTION LINE FOR STEEL WHEEL RIMS
This production line is including several separate machines as below, special for producing wheel rims for cars, trucks, etc.
Voltage: 380V, 3Phase, 50Hz. ±2%

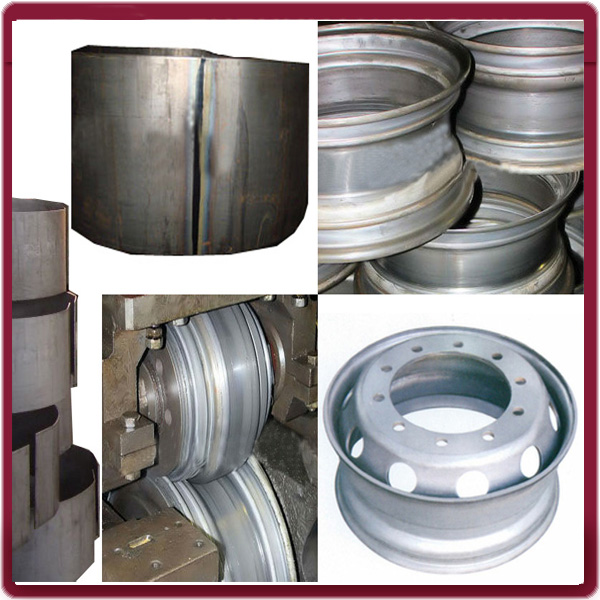

Suitable range of rim:
Diameter: 17.5-25 inch
Width: 200-500mm
Thickness: 4-8mm
Production program
Rounding & flattening →butt welding → trimming (scraping sediment → pressing weld → end cutting) → re-rounding → flaring →roll forming (three steps) → expanding→ air-leakage inspecting → punching air valve hole→ rim disc spinning machine
Machine Description

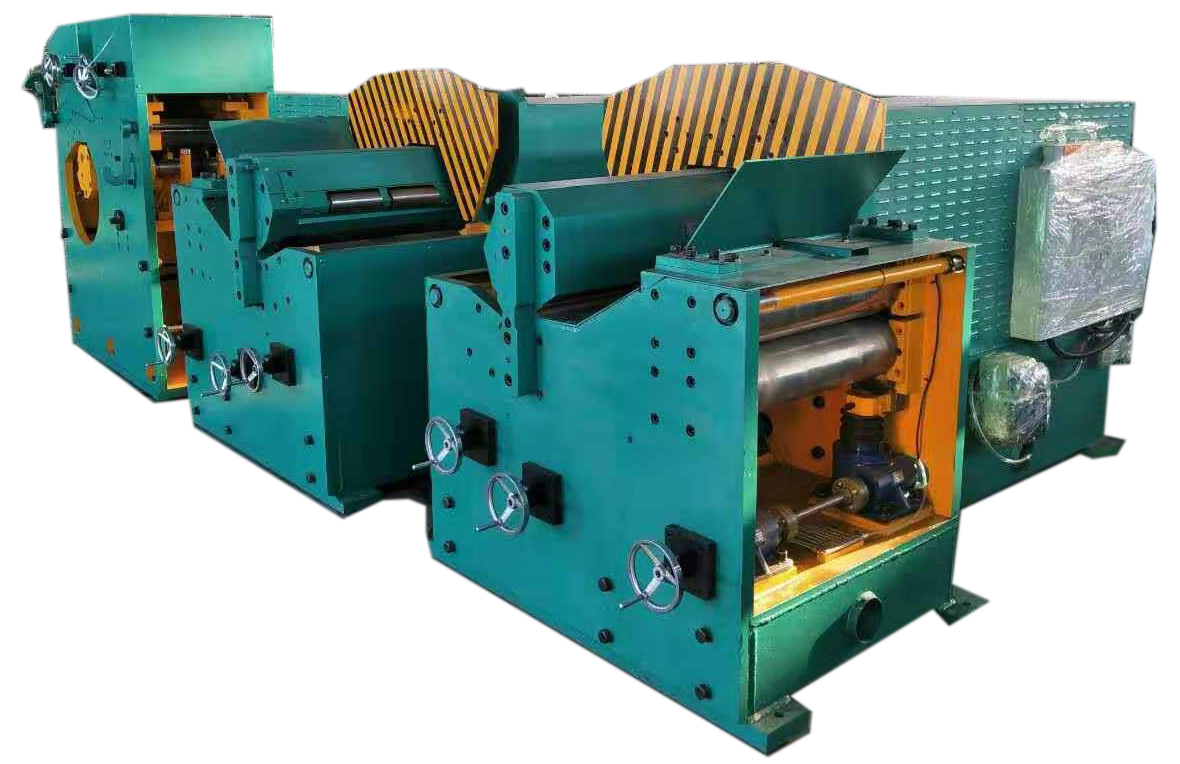

1. Rounding machine (including mark stamping & flattening device)

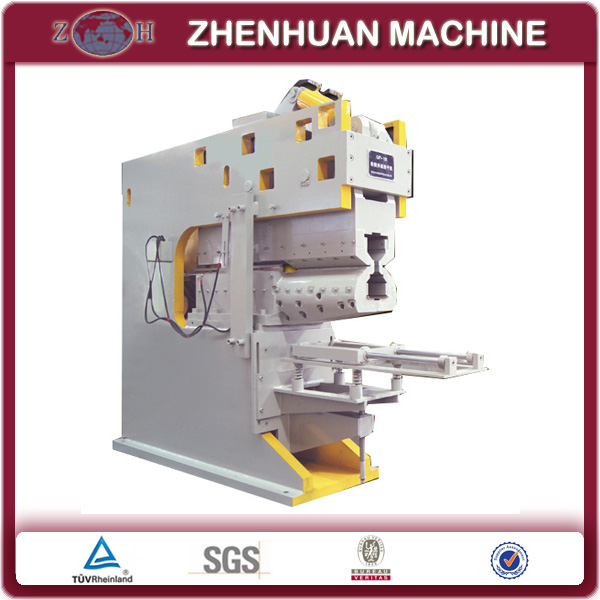

2. Trimming machine (Planisher/side cutter)
2.1 Description
This machine is used for trimming welding slag before roll forming.
This machine is including trimming, planishing and side cutting function.
3. Re-rounding machine
3.1 Description
This machine is used for re-rounding two sides of welding parts.
It is made of machine body, hydraulic, lubrication and electric system.
3.2 Main technical data
Name
Data
Nominal pressure
2000KN
Max. working pressure
25MPa
Max. distance from slider to bench
900mm
Max. slider stroke
400mm
Working bench size
750 x 600mm (L x W)
Power
11kW
PLC
Siemens S7-1200 series
Touch screen
Siemens
Low voltage component
Schneider
Button & indicator light
Schneider
Machine dimension
2200 x 1600 x 2500mm
Machine weight
About 3.8 T

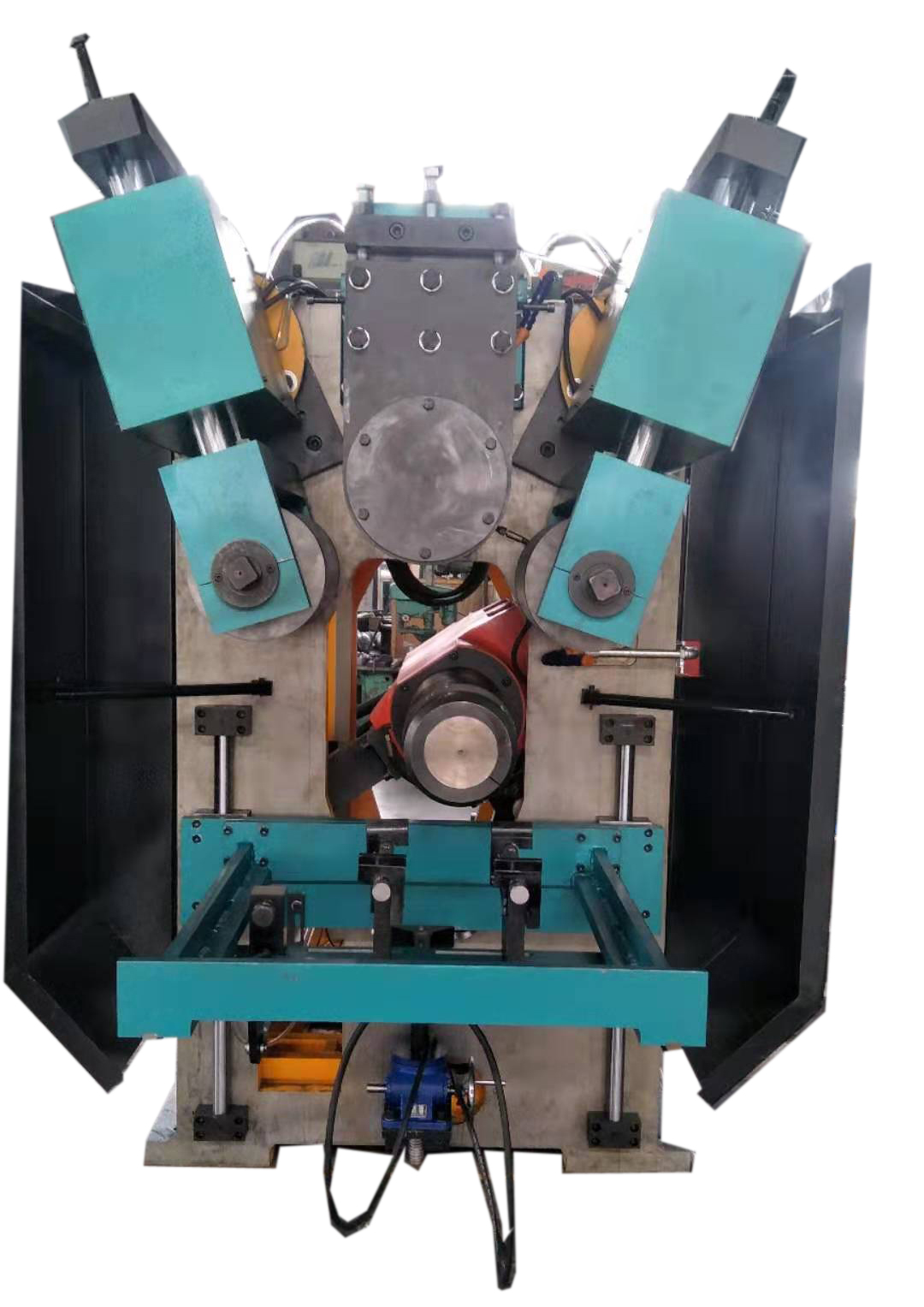

4. Roll forming machine
4.1 Description
This machine is specially designed for forming flared rims into final shape. Usually there need 3 sets of same machines with different forming rollers for this processing.
It is made of machine body, bracket and hydraulic system, pneumatic system, electric system.
4.2 Main configurations:
No.
Name
Data
1
Total power
124.025 kW
2
Output
12-18seconds/pcs
3
Main spindle parameter
Roll forming force
230KN
Spindle torque
900 N-m
The length for installing mold
600mm
The diameter for installing mold
200mm,
key width is 32mm
Total rotary speed for up & down spindle
130rpm( adjustable)
Dip angel for two spindle
±0.5°
4
Material parameter
Tensile strength for materials
540～650Mpa
5
The range of thickness for raw materials
5mm～8mm
6
Yield strength for materials
More than 540Mpa
7
Main machine
Runout for up & down rolls
≤0.1mm
8
Hydraulic system
Voltage for motor
AC 380 V, 50Hz
9
Brand
ABB
10
Power
55+55+11 kW
11
Rotary speed
1450 rpm
12
The model of hydraulic motor
NAM-1450
13
The numbers of hydraulic motor
2
14
The model for lifting oil cylinder
D100/R63-S70 FA
15
Flattening oil cylinder numbers
1 pcs
24
Hydraulic motor
Max. working pressure
12.5Mpa
16
Max. working flow
235L/min
17
Max. output torque
2857Nm (adjustable)
18
Max. rotate speed
160rpm
19
Fast forward for lifting oil cylinder
Max. working pressure
4Mpa
20
Max. working flow
135L/min
21
Max. reaching out for oil cylinder
90mm/s (non-adjustable)
22
Max. thrust output
8 T
23
Feeding for lifting oil cylinder
Max. working pressure
21 MPa
24
Max. working flow
27 L/min
25
Max. reaching out for oil cylinder
18 mm/s (adjustable)
26
Max. thrust output
90T
27
Working temperature
25℃-65℃
28
Cooling method
AC freezer( LYD120)
29
Solenoid valve
DC 24 V
30
Effective volume for oil tank
3000 L
31
Pneumatic system
Air compressor ( by buyer)
Pressure: ≥0.6 Mpa
Degassing:≥100 L/min
32
The model for pushing cylinder
D125/R80-S800 x 1
33
Max. reaching out speed for cylinder
300 mm/s( adjustable)
34
Max. retracting speed
500 mm/s( adjustable)
35
Thrust output for pushing cylinder
(When pressure is 0.6MPa)
0.74 T
36
Force output for pushing cylinder
(When pressure is 0.6MPa)
0.43T
37
The model of guide cylinder
D125/R80-S300
38
The number of guide cylinder
1
39
Thrust output for guide cylinder
(When pressure is 0.6MPa)
0.74 T
40
Force output for guide cylinder
(When pressure is 0.6MPa)
0.43T
48
Lubrication system
Rated voltage
AC 220 V,50Hz
51
Power
25 W
52
Rated pressure
1.5 MPa
53
Rated flow
150 ml/min
54
Rated volume
4 L
55
Electrical System
PLC
Siemens S7-1200 series
56
Touch screen
Siemens
57
Low voltage component
Schneider
58
Button & indicator light
Schneider
59
Machine dimension
About 3400 x 1400 x 2700mm:
60
Machine weight
About 14 tons
