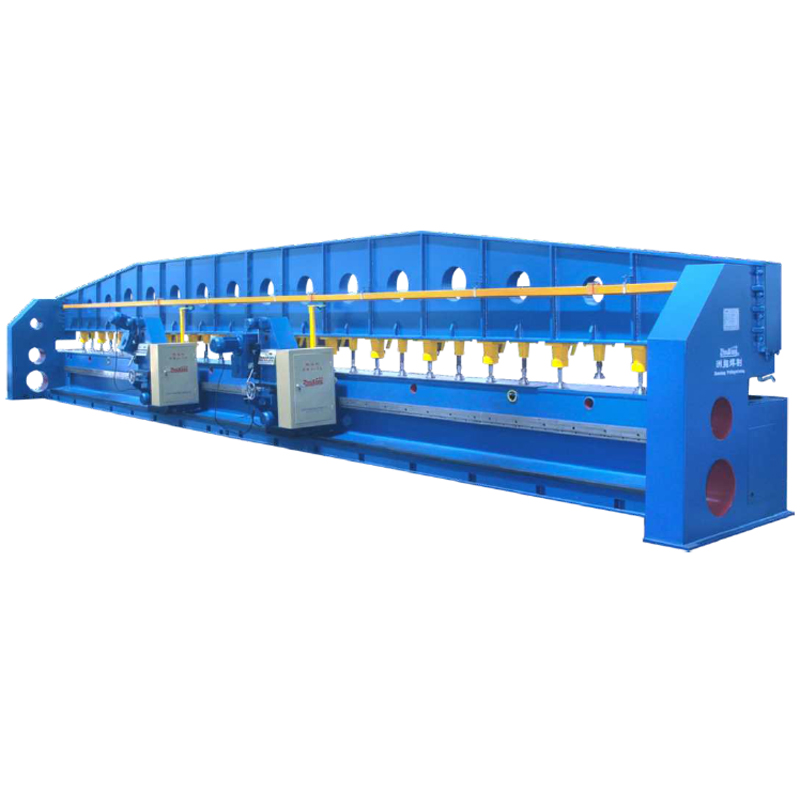

Edge milling machine
WUXI ZHOUXIANG COMPLETE SET OF WELDING EQUIPMENT CO., LTD
See what’s includedHide breakdown
- FOB goods (100)
- $3,700,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $129,502
- Section 301 tariff (25.0%)
- $925,013
- Customs fees (MPF/HMF)
- $5,260
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $3,700,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $129,502
- Section 301 tariff (25.0%)
- $925,013
- Customs fees (MPF/HMF)
- $5,260
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Edge milling machine
WUXI ZHOUXIANG COMPLETE SET OF WELDING EQUIPMENT CO., LTDSee what’s includedHide breakdown
- FOB goods (100)
- $3,700,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $129,502
- Section 301 tariff (25.0%)
- $925,013
- Customs fees (MPF/HMF)
- $5,260
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $3,700,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $129,502
- Section 301 tariff (25.0%)
- $925,013
- Customs fees (MPF/HMF)
- $5,260
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: steel, aluminum and iron
- Size: 14200*2610*2300mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: steel, aluminum and iron
- Size: 14200*2610*2300mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | steel, aluminum and iron |
|---|---|
| Size | 14200*2610*2300mm |
| Color | Zhouxiang standard blue |
Product details
| Materials | steel, aluminum and iron |
|---|---|
| Size | 14200*2610*2300mm |
| Color | Zhouxiang standard blue |
From the supplier

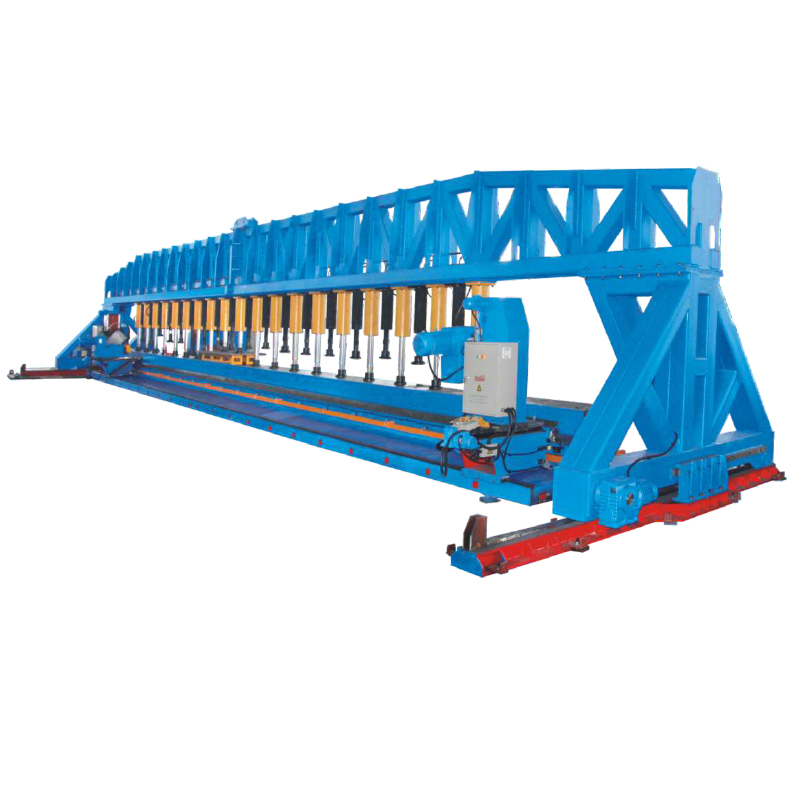

This machine is an advance milling machine which adopt new technology, it is widely used in industries of pressure vessel, boiler, ship building, electric power and chemical industry and mechanical and so on. Before welding, the plate should be in processing straight edge, bevel edge and U type groove.
It has the following advantages:
- The machine body is welding parts, after welding; the workpiece was backfired in high temperature and stress-released to avoid deformation.
- The arrangement of guide rail is the combination of suspending type and base type, this combination has greatly improved the stability than common suspending type, and also can reduce the vibration during work.
- guide rail is adopt high quality 45﹟ steel, it is after forging and planning and aligning, and then precise treatment, quenching and precise milling, then fixed by screw on the body, so that can improve guide rails’ precision and wearability..
- Each feeding structure of milling head is driving by one frequency motor.
- the facer of milling head is adopt common facer
- There’s workpiece-guard device to make the positioning fast and convenient, then greatly improved efficiency.
- There’s a throat hole at end beam, when milling super-long workpiece, can extend to another face then continue work.
- The panel adopts safe slip-touch cables, which is safe and beautiful.
This machine is composed of 1.main machine body 2.press beam 3. slitting plate and column beam 4.main shaft box 5. Feeding box 6.hydraulic system 7. electrical control box and operation box.
Technical parameter
- Max length of workpiece：6m, 12m, 18m
- Milling thickness：6-80mm
- Max depth of milling：3mm
- Milling angle：0～45°
- Model of milling head： 1TX32 ×2 sets
- Power of milling head motor：2×5.5KW，turning speed:1420 r/min
- Suitable diameter of milling cutter：D＝200 mm
- Turning speed of main shaft：80～400 r/min
- Expansion length of main shaft：63 mm
- Milling forward speed：0.2 m/min~0.6m/min﹑
- Forward motor power：1.5 kw
- Quick forward and return speed of milling: V=1.2 m/min
- Power of hydraulic system:5.5 kw
- Pressure of hydraulic system:≤3.5 Mpa
From the supplier
This machine is an advance milling machine which adopt new technology, it is widely used in industries of pressure vessel, boiler, ship building, electric power and chemical industry and mechanical and so on. Before welding, the plate should be in processing straight edge, bevel edge and U type groove.
It has the following advantages:
- The machine body is welding parts, after welding; the workpiece was backfired in high temperature and stress-released to avoid deformation.
- The arrangement of guide rail is the combination of suspending type and base type, this combination has greatly improved the stability than common suspending type, and also can reduce the vibration during work.
- guide rail is adopt high quality 45﹟ steel, it is after forging and planning and aligning, and then precise treatment, quenching and precise milling, then fixed by screw on the body, so that can improve guide rails’ precision and wearability..
- Each feeding structure of milling head is driving by one frequency motor.
- the facer of milling head is adopt common facer
- There’s workpiece-guard device to make the positioning fast and convenient, then greatly improved efficiency.
- There’s a throat hole at end beam, when milling super-long workpiece, can extend to another face then continue work.
- The panel adopts safe slip-touch cables, which is safe and beautiful.
This machine is composed of 1.main machine body 2.press beam 3. slitting plate and column beam 4.main shaft box 5. Feeding box 6.hydraulic system 7. electrical control box and operation box.
Technical parameter
- Max length of workpiece：6m, 12m, 18m
- Milling thickness：6-80mm
- Max depth of milling：3mm
- Milling angle：0～45°
- Model of milling head： 1TX32 ×2 sets
- Power of milling head motor：2×5.5KW，turning speed:1420 r/min
- Suitable diameter of milling cutter：D＝200 mm
- Turning speed of main shaft：80～400 r/min
- Expansion length of main shaft：63 mm
- Milling forward speed：0.2 m/min~0.6m/min﹑
- Forward motor power：1.5 kw
- Quick forward and return speed of milling: V=1.2 m/min
- Power of hydraulic system:5.5 kw
- Pressure of hydraulic system:≤3.5 Mpa
