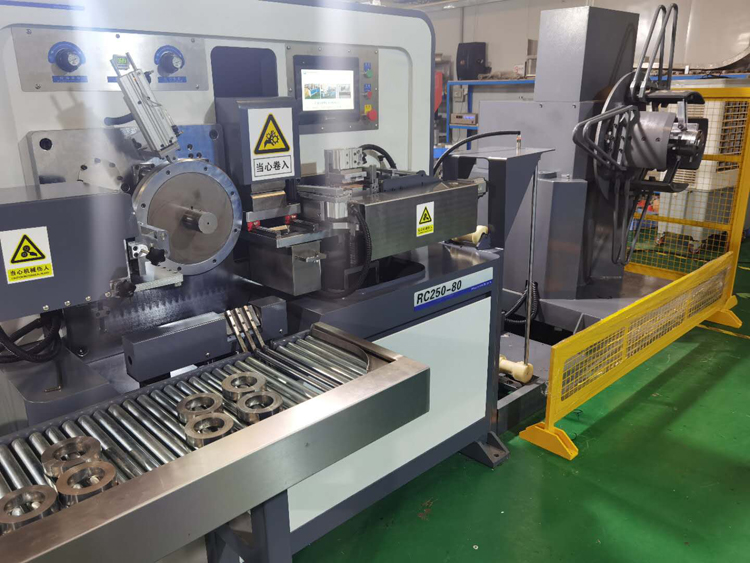

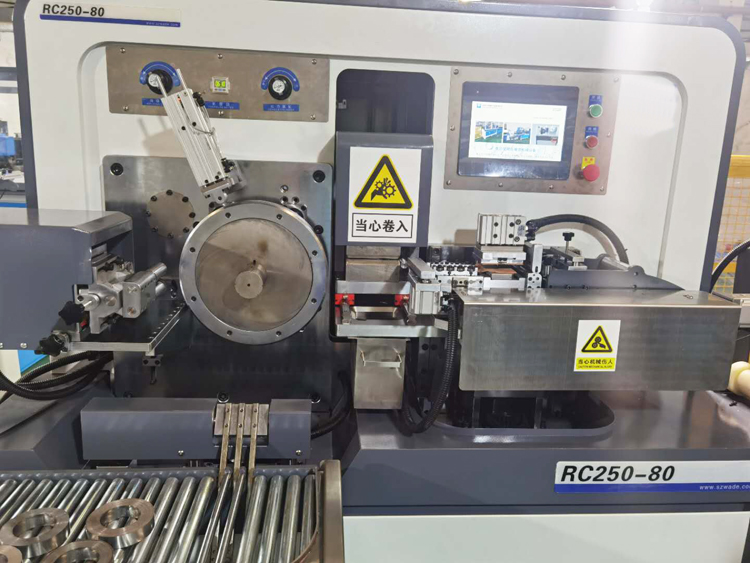

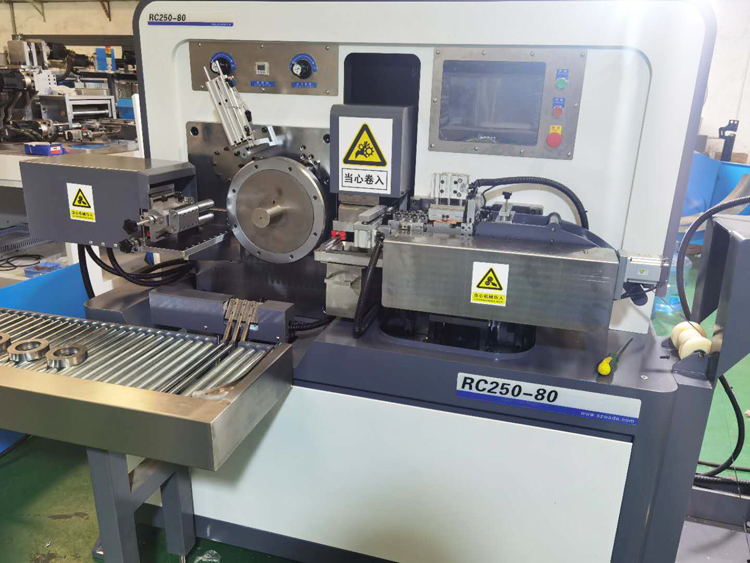

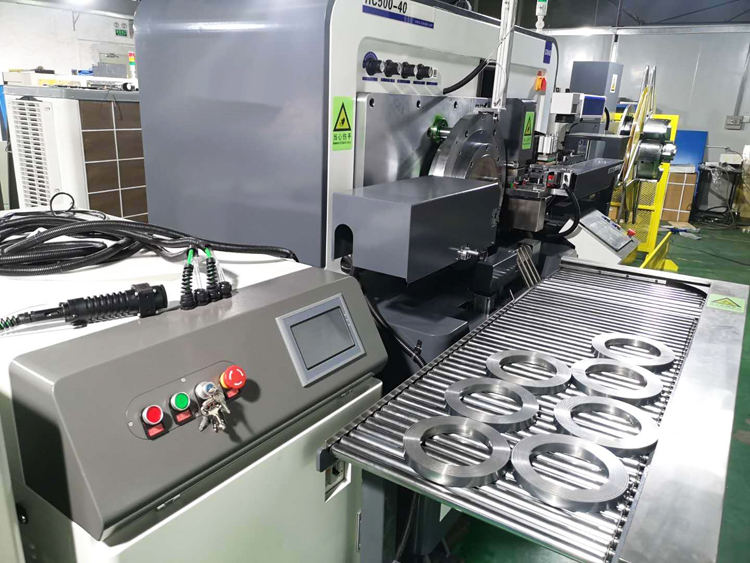

This machine is specially designed for winding toroidal cores from CRGO electrical silicon steel full automatically.
This machine stops Panasonic PLC control system, full closed-loop control all the procedure, including clamping, fixing, pressing, winding, cutting, welding, releasing, etc.
This machine adopts 5 servo motors driving:
- - Servo motor for cutting device tracking (non-stop)
- - Servo motor for cutting down CRGO strips with max. thickness 0.35mm (with reducer)
- - Servo motor for spindle winding (with reducer)
- - Servo motor for flapping & ejecting finished cores
- - Servo motor for clamping & feeding strip to pin on spindle
Main features
-- Auto feeding, auto winding, auto cutting, auto welding, auto releasing
-- PLC control, HMI operation, simple and convenient
-- Laser welding, very small damage to CRGO strip
-- Motorized elevating worktable, adjustable for different toroidal core diameter
-- Adopting special heat exchanger for cooling control cabinet, longer life of electric/electronic components
- Carbide alloy cutting blade, more than 3 million cuts
- Auto decoiling CRGO strips
Main technical data
Item
Data
Suitable ribbon width
8-80mm
Suitable ribbon thickness
CRGO/CRNGO
0.12~0.35mm
Permoalloy
0.1~0.35mm
Suitable magnet core ID
Min. 10 mm / Max. 160mm
Max. magnet core OD
200mm
Main spindle speed
Max. 3000rpm
Magnet core ID/OD tolerance
+/-0.5mm
Magnet core height evenness
+/-0.1mm
Total electric power
1.4kW
Max. ribbon reel weight
200kg
Machine dimension
About 1750 x 850 x 1600mm
Machine weight
About 850kg
