No template tank head flanging machine
NANTONG ZHENHUAN TRADE CO., LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
No template tank head flanging machine
NANTONG ZHENHUAN TRADE CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier

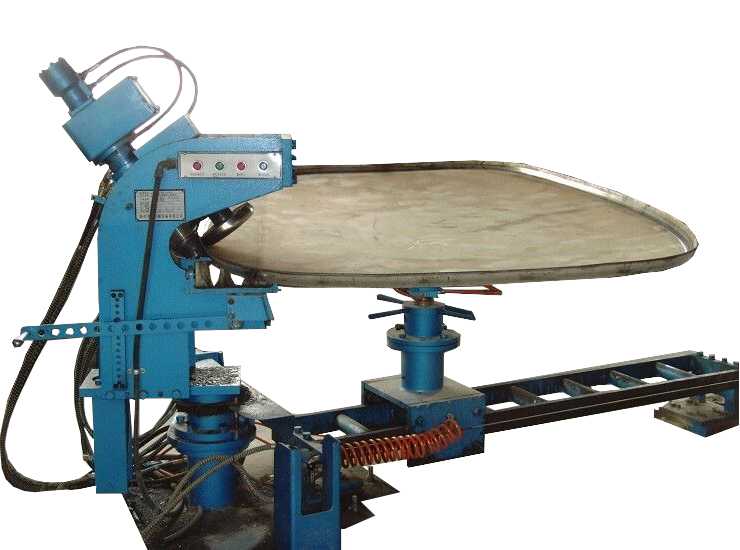

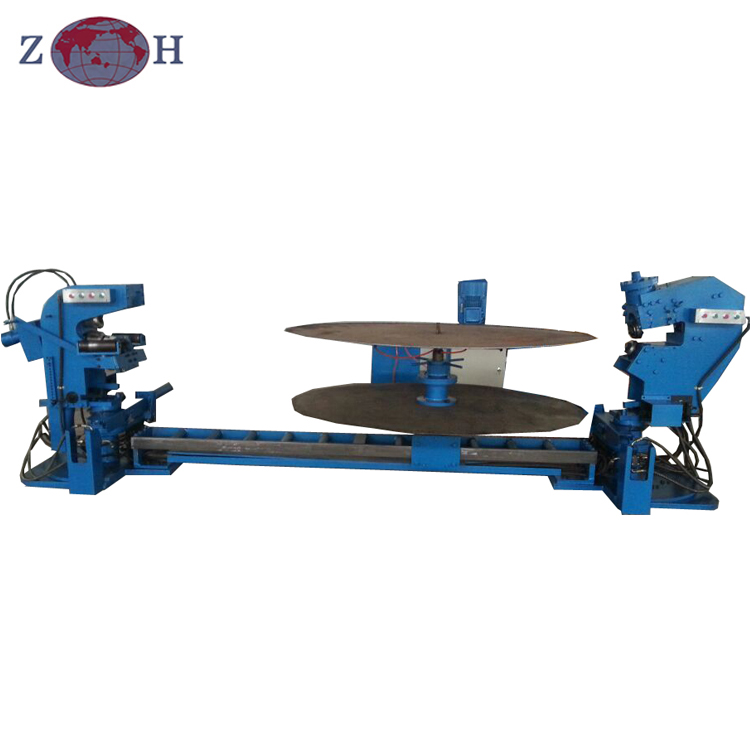

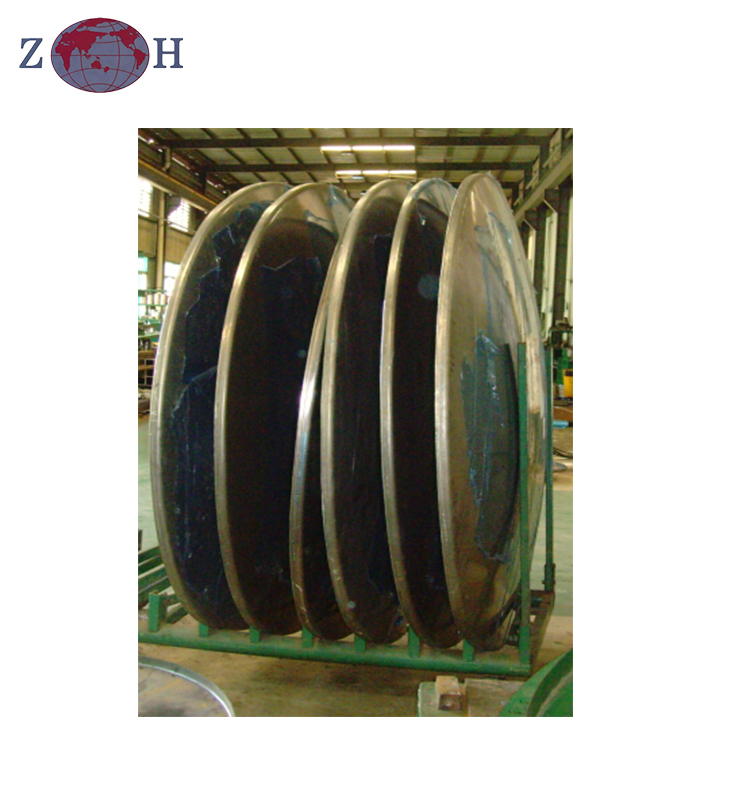

This is tank head flanging machine adopting spinning principle, this machine will make blank work piece from drum machine into flat-bottom end, dish end, and single-direction end, etc.
I Main technical data
NO.
Item
Technical data
1
Diameter of finished dish end
800-3500mm
2
Material thickness
Max. 8mm (carbon steel)
Max.6mm (stainless steel)
Max. 12mm (aluminum steel)
3
Height of flange (6mm thickness)
50mm
4
Flange
R 20mm
5
Min. R of work piece
R300mm
6
Speed
0-2500mm/min
7
Main machine size
3600x1300x1200mm (L x W x H)
8
Total power
11kW
9
Suitable temperature
-10℃～47.5℃
10
Relative Humidity
max. 90%
11
Voltage
380V, 3P, 50Hz, it can be customized
12
Sucker lifting up and down mode
Hydraulic tracking, automatic up and down
II Configuration
- l Main flanging machine: one set
- l Pulley: one set
- l Forming system: one set
- l Hydraulic system: one set
- l Vacuum system: one set
From the supplier
This is tank head flanging machine adopting spinning principle, this machine will make blank work piece from drum machine into flat-bottom end, dish end, and single-direction end, etc.
I Main technical data
NO.
Item
Technical data
1
Diameter of finished dish end
800-3500mm
2
Material thickness
Max. 8mm (carbon steel)
Max.6mm (stainless steel)
Max. 12mm (aluminum steel)
3
Height of flange (6mm thickness)
50mm
4
Flange
R 20mm
5
Min. R of work piece
R300mm
6
Speed
0-2500mm/min
7
Main machine size
3600x1300x1200mm (L x W x H)
8
Total power
11kW
9
Suitable temperature
-10℃～47.5℃
10
Relative Humidity
max. 90%
11
Voltage
380V, 3P, 50Hz, it can be customized
12
Sucker lifting up and down mode
Hydraulic tracking, automatic up and down
II Configuration
- l Main flanging machine: one set
- l Pulley: one set
- l Forming system: one set
- l Hydraulic system: one set
- l Vacuum system: one set
