From the supplier

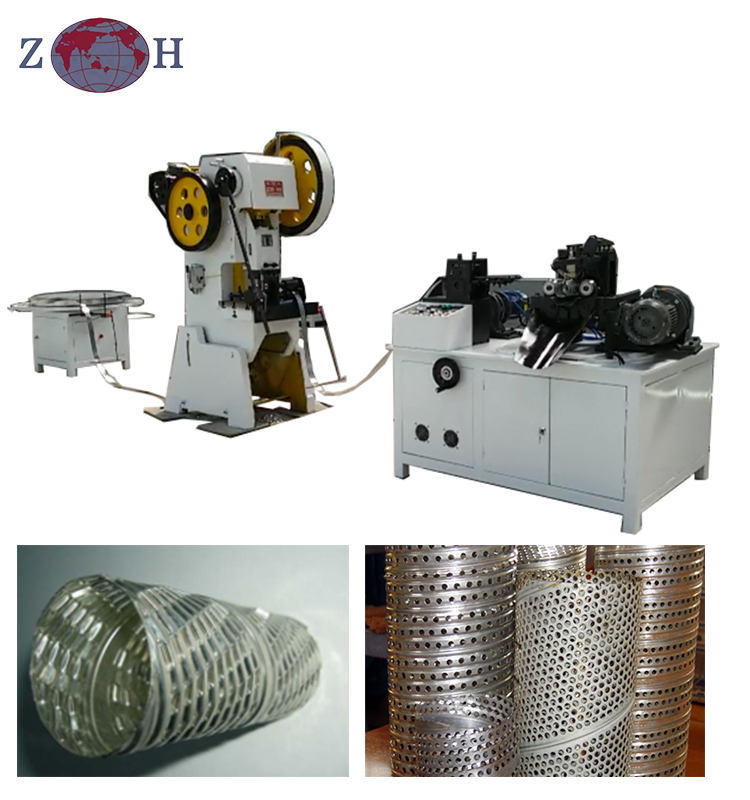

This machine is specially designed for producing spiral filter cores used in automotive filters.
Basically, this machine can produce below two kind of filter cores:
- Slotted type
- Round hole type
Main technical data
No.
Item
Data
1
Suitable filter core diameter range (OD)
Ф32- Ф140mm
2
Suitable filter core length
Unlimited
3
Suitable raw material
Stainless steel, carbon steel
4
Raw material strip width
45mm
5
Raw material thickness
0.5-0.8mm
6
Strip linear feeding speed
14m/min
7
Production speed
About 4m/min
8
Main motor power
8.5kW
9
Dimension
About 2900 x 950 x 1750mm
10
Machine weight
About 1500kg
11
Locking type
Inner locking
From the supplier
This machine is specially designed for producing spiral filter cores used in automotive filters.
Basically, this machine can produce below two kind of filter cores:
- Slotted type
- Round hole type
Main technical data
No.
Item
Data
1
Suitable filter core diameter range (OD)
Ф32- Ф140mm
2
Suitable filter core length
Unlimited
3
Suitable raw material
Stainless steel, carbon steel
4
Raw material strip width
45mm
5
Raw material thickness
0.5-0.8mm
6
Strip linear feeding speed
14m/min
7
Production speed
About 4m/min
8
Main motor power
8.5kW
9
Dimension
About 2900 x 950 x 1750mm
10
Machine weight
About 1500kg
11
Locking type
Inner locking
