From the supplier

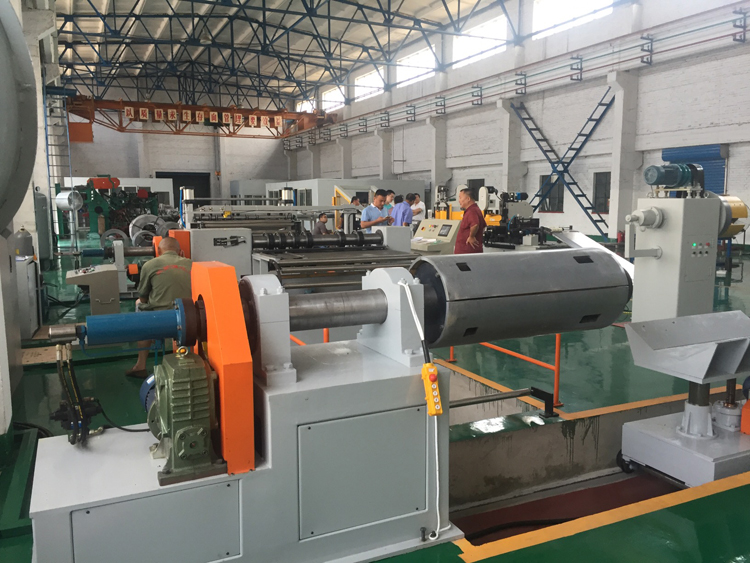

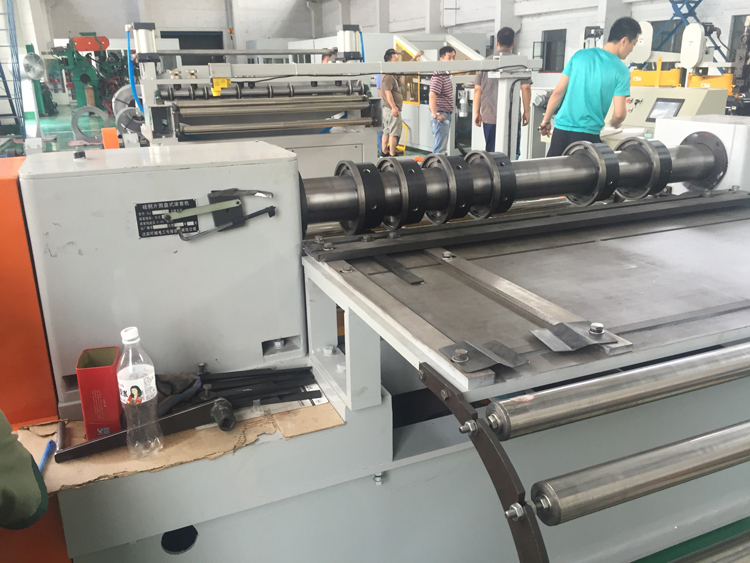

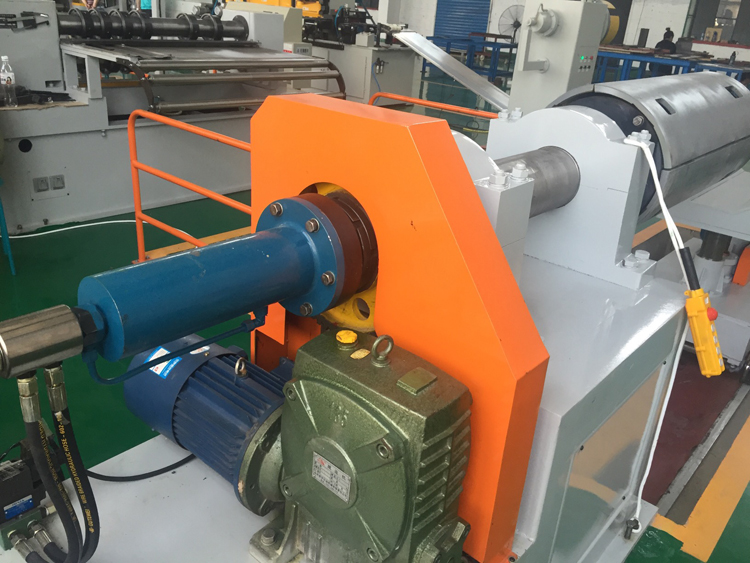

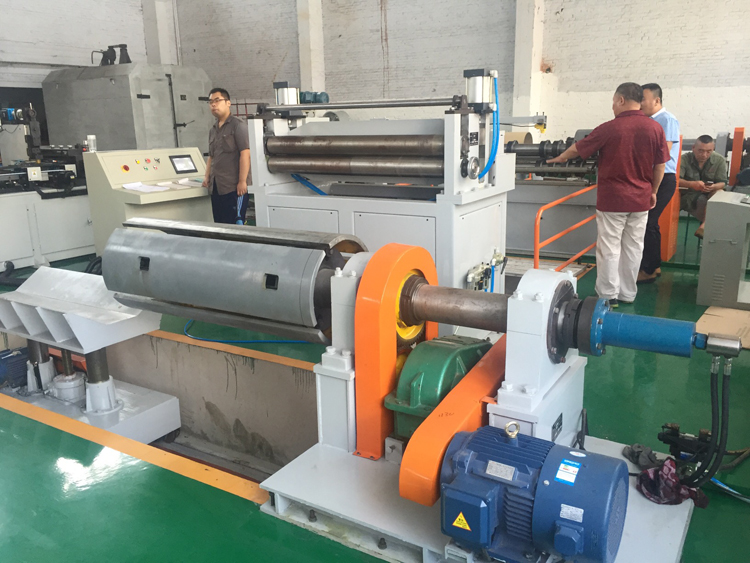

This slitting line is special for cutting big silicon steel coil into strips for silicon steel cores used in transformer, current/voltage transformer and other electric apparatus.
This line is improved with automatic detecting system for whole line synchronization. Line speed adjustment can be easily achieved by rotating only one knob on control panel.

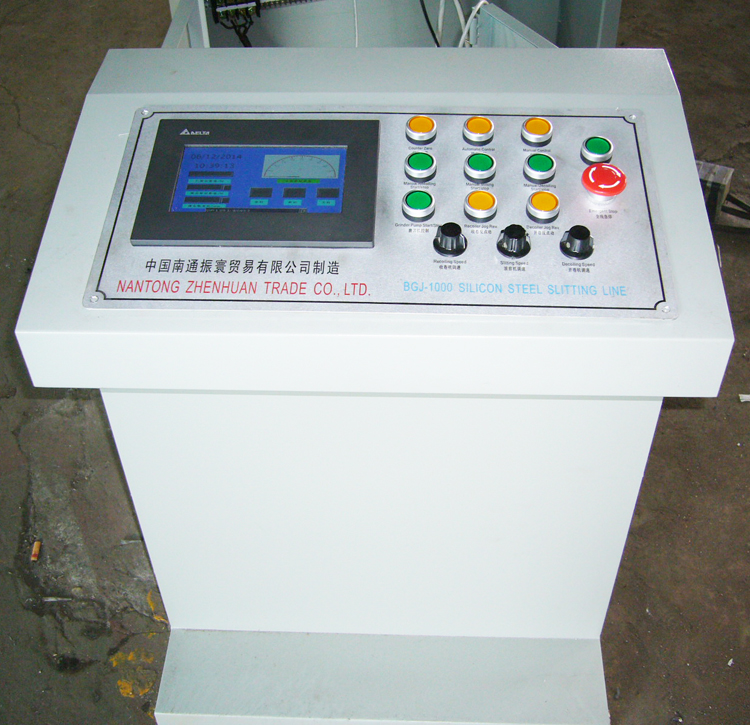

Control panel is equipped with PLC and HMI, simple and convenient operation. HMI will display pre-set length and length under recoiling.
Control panel is equipped with powerful cooling fan, suitable for high ambient temperature.
This line is equipped with encoder for length measuring.
Main technical data:
No.
Item
Data
1
Suitable silicon steel thickness
0.18-0.37mm
2
Suitable silicon steel coil width
1250mm
3
Suitable silicon steel coil weight
Max. 6T
4
Suitable silicon steel coil ID
500mm, variable range 460-520mm
5
Suitable silicon steel coil OD
Max. 1200mm
6
Slitting speed
10-70m/min
7
Slitting burr height
Less than 0.02mm
8
Number of slitting strips
Max. 20 pieces
9
Min. slitting strip width
40mm
10
Slitting blade material
Carbide alloy
11
Slitting blade life
More than 100km before grinding
12
Slitting blade size
ID 120- OD198.45-T18mm
13
Slitting accuracy in width
Less than +/- 0.2mm
14
Slitting strip linear precision
Less than +/- 0.5mm/m
15
Recoiling coil ID
500mm, variable range 460-520mm
16
Total weight of recoiled strips
Max. 6T
17
Total electric power
About 26kW
18
Total length of the machine
11m
19
Machine occupying area
55 square meters
20
Total machine weight
About 11 tons
21
Line working height
1m
