I Description

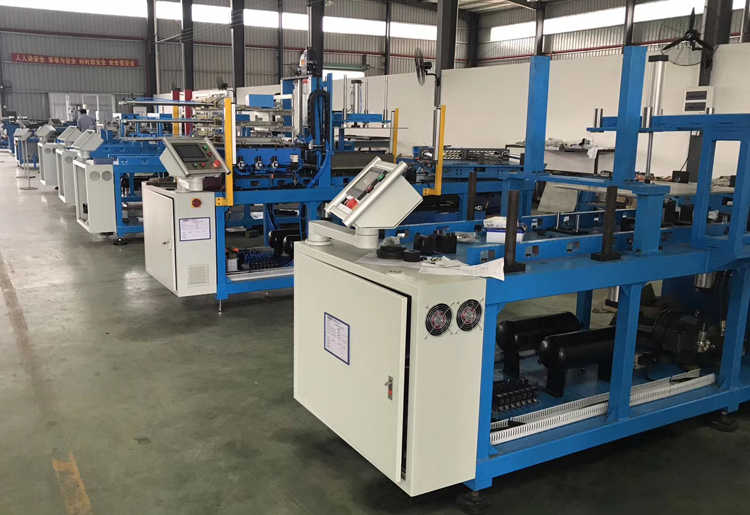

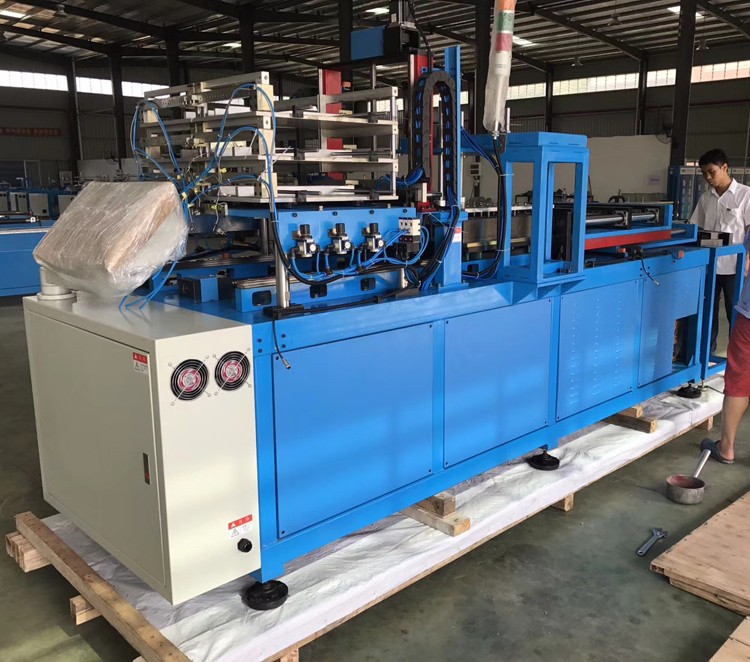

This machine is specially designed for assembling refrigerator evaporator cores and deep freezer evaporator cores full automatically.
The machine will automatically select fins, insert fins and expand tubes, thus finish a core for refrigerator or deep freezer.
II Main technical data
No.
Item
Data
1
Applicable evaporator core
refrigerator, deep freezer
2
Applicable evaporator core length
100~600mm
3
Applicable aluminum tube diameter
Φ8mm
4
Number of U tube rows
2 / 3
5
Aluminum fin width
50mm (60mm) / 75mm
6
Max. hole numbers in each row
14 / 7
7
Hole pitch
38.1mm
8
Row pitch
22mm
9
Fin stacking method
Servo motor driving,pneumatic absorbing
10
Fin stacking speed
2~3 seconds per fin
11
Tube inserting method
Manually pre-loaded, hydraulic pushing
12
Tube inserting speed
400mm/s
13
Hydraulic pump motor power
5HP
14
Hydraulic pressure
5~7MPa
15
Machine dimension
About 10 x 1.2 x 1.5m
16
Machine weight
About 1500kg
III Main configuration
-- PLC & HMI: Mitsubishi from Japan
-- Servo motor and driver: Mitsubishi from Japan
-- Circuit breaker: FUJI from Taiwan
-- Buttons: SCHNEIDER from China
-- Pneumatic components: AIRTAC from Taiwan
-- Hydraulic components: Famous brands from Taiwan
