From the supplier

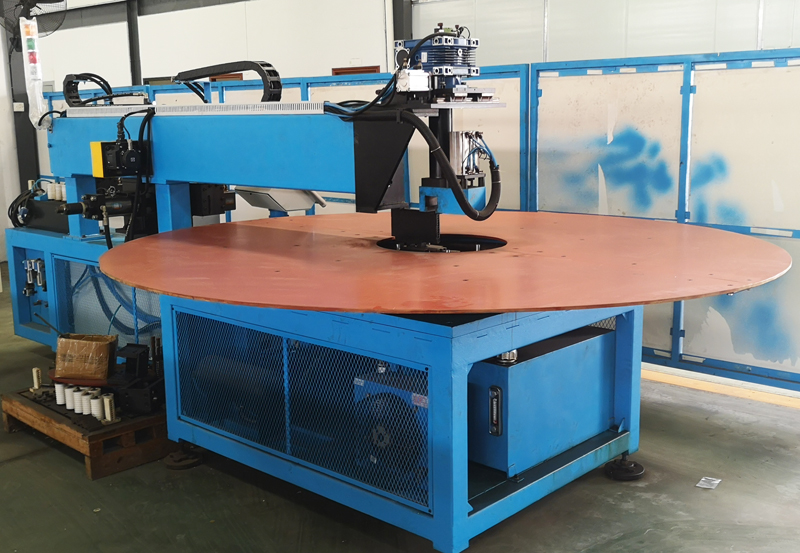

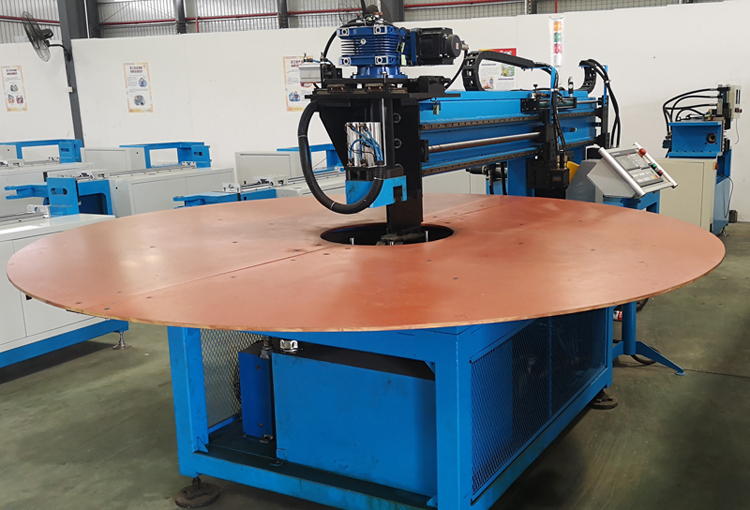

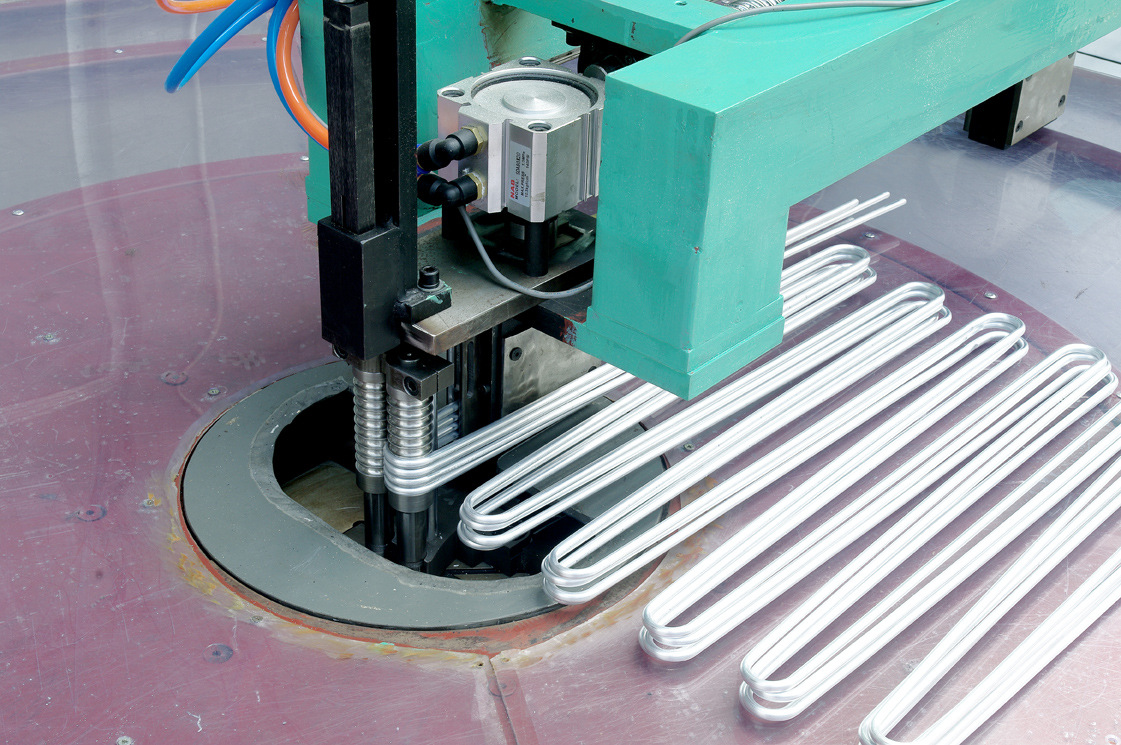

This machine is specially designed for bending multiple round Bandy tubes to be serpentine shape for refrigerator condensers.

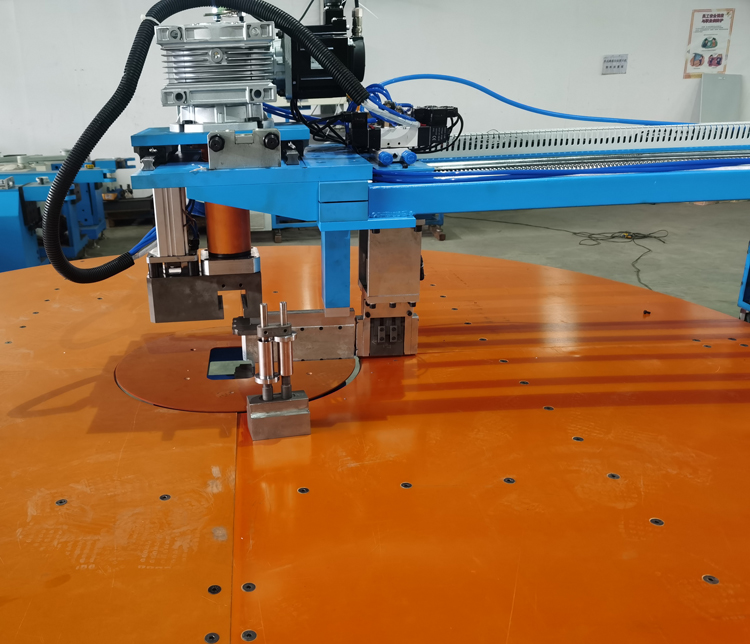

This machine is comprised of auto clamping & feeding device, auto bending head and PLC control system.

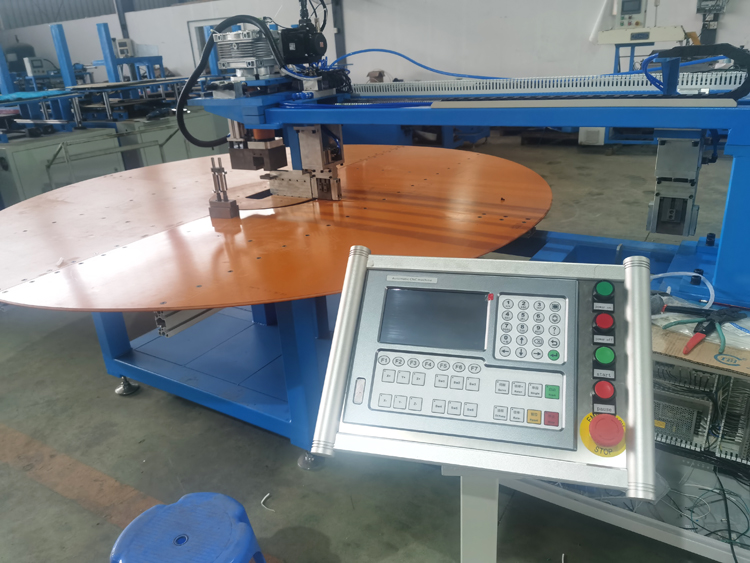

This machine is PLC control, HMI operation. Feeding length and bend quantity can be preset on the touch screen and total 270 programs can be saved for future use.

By using servo motor feeding and ball screw transmitting, re-positioning accuracy is very high.

Spindle is driven by servo motor and planetary reducer, high torque.

Main technical data:

Item

Data

Suitable copper tube material

T2M or T2Y2

Suitable copper tube diameter

Max. Φ10mm

Suitable copper tube wall thickness

Max. 1.0mm

Bending radius

Max. 150mm, min 30mm

Bending angle

0-200º

Max. Tube quantity bent together

20 (@4mm bandy tubes)

Feeding speed

0-1000mm/s

Feeding precision

±0.05mm

Bending speed

0-300º/s

Compositive bending efficiency

7 seconds per bend

Bending axis re-positioning accuracy

±0.1º

Feeding axis re-positioning accuracy

≤0.3mm @ L≤1000mm

≤0.6mm @ L>1000mm

Straightness tolerance

≤0.5%

Pneumatic pressure source

0.6MPa

Total motor power

4kW
