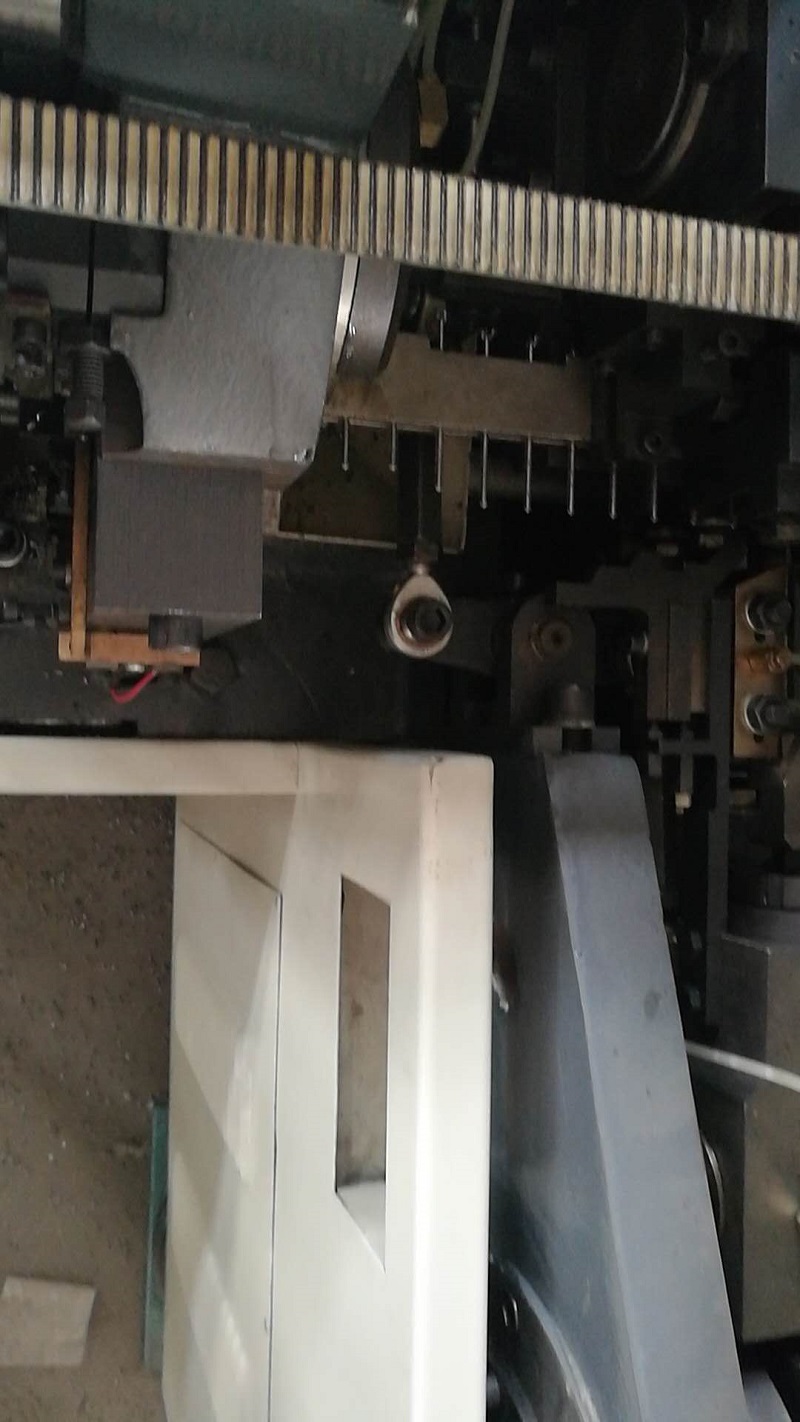

Lt-4D high-speed nail making machine is a product of electric-mechanism well intergrated， highly automatic equipment and features with advanced technology and suits best with the market need both home and abroad. With continuous improvement, the performance of the machine is bettering and the cost-performance ratio of the investment is even higher, and therefore, it is extensively applauded all over the world..

LT-4DHigh-Speed Nail Making Machine is a highly automated electromechanical integrated product developed by our company combining domestic and international market demands with advanced technology. Through years of continuous improvement, equipment performance has been continuously perfected, and the cost-effectiveness of equipment investment is increasing, thus receiving wide welcome from domestic and foreign users

LT-4D high-speed nail making machine is applicable for quantitative and continuous production, the productivity of such a machine stands foremost of its alike in the industry.

LT-4DHigh-speed nail machine for mass continuous production. Single machine output is best-in-class.

LT-4D high-speed nail making machine is excellent insafety performance, stable in quality, high in reliability, convenient in operation and maintenance, lower labor tension, energy saving and lower noise.LT-4D high-speed nail making machine needs fewer labor force, a skilled operator can easily handle several sets of the equipment simultaneously.

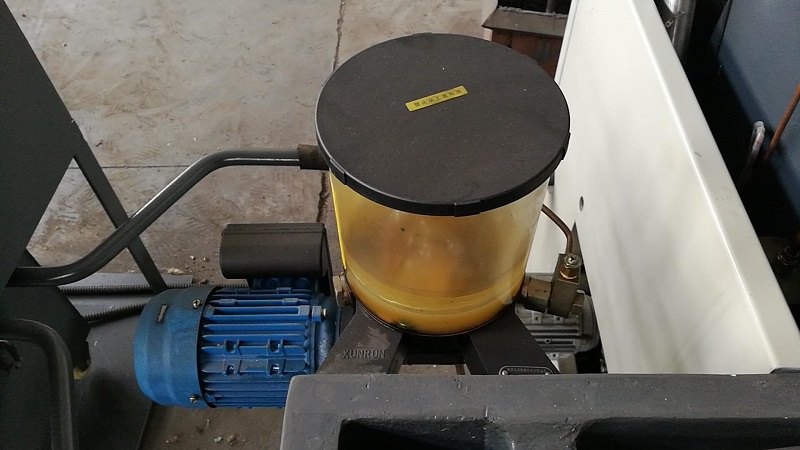

LT-4DHigh-Speed Nail Making Machine - Excellent safety performance, stable quality, high reliability, scissors, clamp frame and rear bearing all equipped with overheat protection devices, automatic shutdown when oil is low. Low labor intensity for operators, one skilled operator can operate at least two machines simultaneously.LT-4DHigh-Speed Nail Making Machine. Low Energy Consumption, Low Noise.





  \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n\n \n

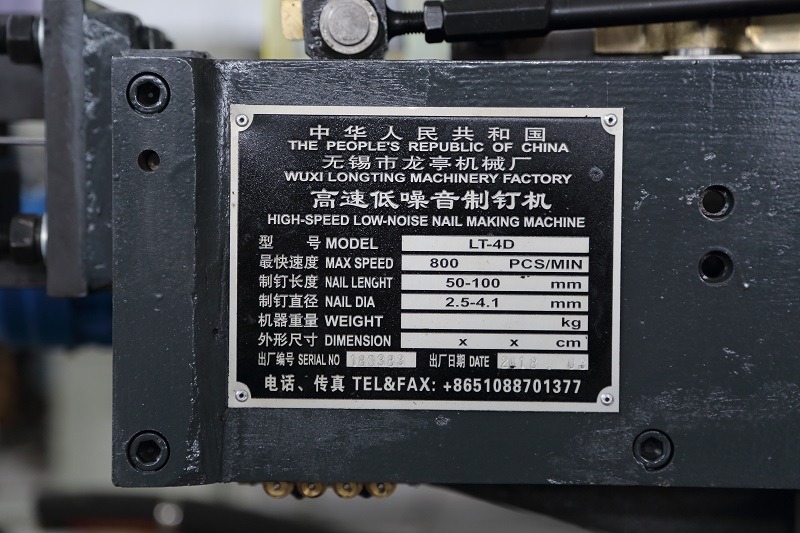

SpecificationTechnical Parameters

Max Speed

Max Speed

800pcs/min

Wire Diameter range applicable

Nail Making Diameter Range

￠2.5-￠4.1

Nail length processing applicable

Nail Length Range

50-100mm

Length  Tolerance

Length Tolerance Range

±0.3mm

Cap eccentric tolerance

Nail Head Eccentricity Range

≦0.2mm

Rated Power

Total Power

10 kw

Net Weight(Mianframe)

Net Weight

3100 kg

Exterior dimensions(Mainframe)

Machine Size

2.9(L) × 1.8(W) ×1.25(H)

Applicable nail

Nail Type

Round cap.D-cap.inclined cap;

Round Cap Nail,DCross-Head Nail, Offset-Cap Nail

Material applicable for nail making

Materials

Q235.CS#40.Hot dipped.stainless steel

Medium-Low Carbon Steel, Hot Galvanized and Stainless Steel Wire



"}
