About this product
- Materials: machine
- Size: 28500*3700*2500mm
- Color: Yellow,Gray
- Control type: PLC
- Customized: Customized
- Certification: ISO 9001CERoHS
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Other European Countries, Others
- Made in: Sichuan, China
About this product
- Materials: machine
- Size: 28500*3700*2500mm
- Color: Yellow,Gray
- Control type: PLC
- Customized: Customized
- Certification: ISO 9001CERoHS
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Other European Countries, Others
- Made in: Sichuan, China
Product details
| Materials | machine |
|---|---|
| Size | 28500*3700*2500mm |
| Color | Yellow,Gray |
| Control type | PLC |
| Customized | Customized |
| Certification | ISO 9001CERoHS |
| Layout | Horizontal |
Product details
| Materials | machine |
|---|---|
| Size | 28500*3700*2500mm |
| Color | Yellow,Gray |
| Control type | PLC |
| Customized | Customized |
| Certification | ISO 9001CERoHS |
| Layout | Horizontal |
From the supplier
Technical Data:
Parameters
SGH15-12
SGH20-12
SGH22-12
Cage pile diameter
Φ650-φ1500 full size adjustable
Φ650-φ2000 full size adjustable
Φ650-φ2200 full size adjustable
Cage length
3-12m
3-12m
3-12m
Cage weight
5500kg
5500kg
6000kg
Coil bar diameter
Φ5-Φ14mm
Φ5-Φ14mm
Φ5-Φ14mm
Main frame bar diameter
Φ12-Φ40mm
Φ12-Φ40mm
Φ12-Φ40mm
Total weight
15t
14t
15t
Rated power
21KW
21KW
21KW
Spacing of winding bars
0-300mm
0-300mm
0-300mm
L*W*H
28.5*3.7*2.5（M）
28.5*4.7*3（M）
28.5*5*3.6（M）
Maximum walking speed
2.8m/min
2.8m/min
2.8m/min
Maximum rotation speed
4r/min
3.1r/min
2.8r/min
Feeding Device
Chain Drive
Chain Drive
Chain Drive
Pipe Material
Process Heat Treatment Steel
Process Heat Treatment Steel
Process Heat Treatment Steel
Welding equipment
carbon dioxide shielded welding
carbon dioxide shielded welding
carbon dioxide shielded welding
Welding method
Manual/Auto
Manual/Auto
Manual/Auto
Introduce:
1.Control system: PLC, touch screen,the inverter.
2.Automatic wire feeding mechanism, the spacing can be adjusted online, the error is small, high molding quality.
3. Frequency control drag cage institutions, high running accuracy.
4. With more automatic hydraulic feed rollers, to prevent steel cage deformation due to its own weight.
5. Equipped with automatic feeding device, easy to operate and improve efficiency.

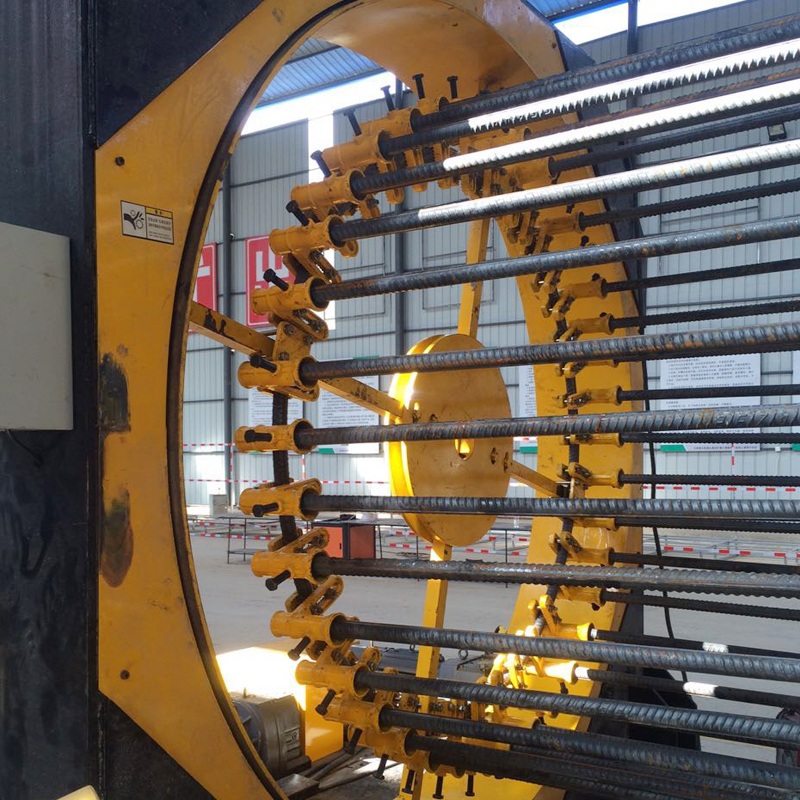

6.Template using the template ring plus catheter combination, can be quickly replaced and transform the quantity of main steel cage wire .
7.Straightening systems are made of high strength alloy material, high strength, anti-wear and improve the life of wearing parts
From the supplier
Technical Data:
Parameters
SGH15-12
SGH20-12
SGH22-12
Cage pile diameter
Φ650-φ1500 full size adjustable
Φ650-φ2000 full size adjustable
Φ650-φ2200 full size adjustable
Cage length
3-12m
3-12m
3-12m
Cage weight
5500kg
5500kg
6000kg
Coil bar diameter
Φ5-Φ14mm
Φ5-Φ14mm
Φ5-Φ14mm
Main frame bar diameter
Φ12-Φ40mm
Φ12-Φ40mm
Φ12-Φ40mm
Total weight
15t
14t
15t
Rated power
21KW
21KW
21KW
Spacing of winding bars
0-300mm
0-300mm
0-300mm
L*W*H
28.5*3.7*2.5（M）
28.5*4.7*3（M）
28.5*5*3.6（M）
Maximum walking speed
2.8m/min
2.8m/min
2.8m/min
Maximum rotation speed
4r/min
3.1r/min
2.8r/min
Feeding Device
Chain Drive
Chain Drive
Chain Drive
Pipe Material
Process Heat Treatment Steel
Process Heat Treatment Steel
Process Heat Treatment Steel
Welding equipment
carbon dioxide shielded welding
carbon dioxide shielded welding
carbon dioxide shielded welding
Welding method
Manual/Auto
Manual/Auto
Manual/Auto
Introduce:
1.Control system: PLC, touch screen,the inverter.
2.Automatic wire feeding mechanism, the spacing can be adjusted online, the error is small, high molding quality.
3. Frequency control drag cage institutions, high running accuracy.
4. With more automatic hydraulic feed rollers, to prevent steel cage deformation due to its own weight.
5. Equipped with automatic feeding device, easy to operate and improve efficiency.
6.Template using the template ring plus catheter combination, can be quickly replaced and transform the quantity of main steel cage wire .
7.Straightening systems are made of high strength alloy material, high strength, anti-wear and improve the life of wearing parts
