Face milling machine
WUXI ZHOUXIANG COMPLETE SET OF WELDING EQUIPMENT CO., LTD
See what’s includedHide breakdown
- FOB goods (100)
- $2,750,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $96,252
- Section 301 tariff (25.0%)
- $687,513
- Customs fees (MPF/HMF)
- $4,072
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $2,750,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $96,252
- Section 301 tariff (25.0%)
- $687,513
- Customs fees (MPF/HMF)
- $4,072
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Face milling machine
WUXI ZHOUXIANG COMPLETE SET OF WELDING EQUIPMENT CO., LTDSee what’s includedHide breakdown
- FOB goods (100)
- $2,750,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $96,252
- Section 301 tariff (25.0%)
- $687,513
- Customs fees (MPF/HMF)
- $4,072
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $2,750,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $96,252
- Section 301 tariff (25.0%)
- $687,513
- Customs fees (MPF/HMF)
- $4,072
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: steel, aluminum and iron
- Size: 4800*1280*3730mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: steel, aluminum and iron
- Size: 4800*1280*3730mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | steel, aluminum and iron |
|---|---|
| Size | 4800*1280*3730mm |
| Color | Zhouxiang standard blue |
Product details
| Materials | steel, aluminum and iron |
|---|---|
| Size | 4800*1280*3730mm |
| Color | Zhouxiang standard blue |
From the supplier

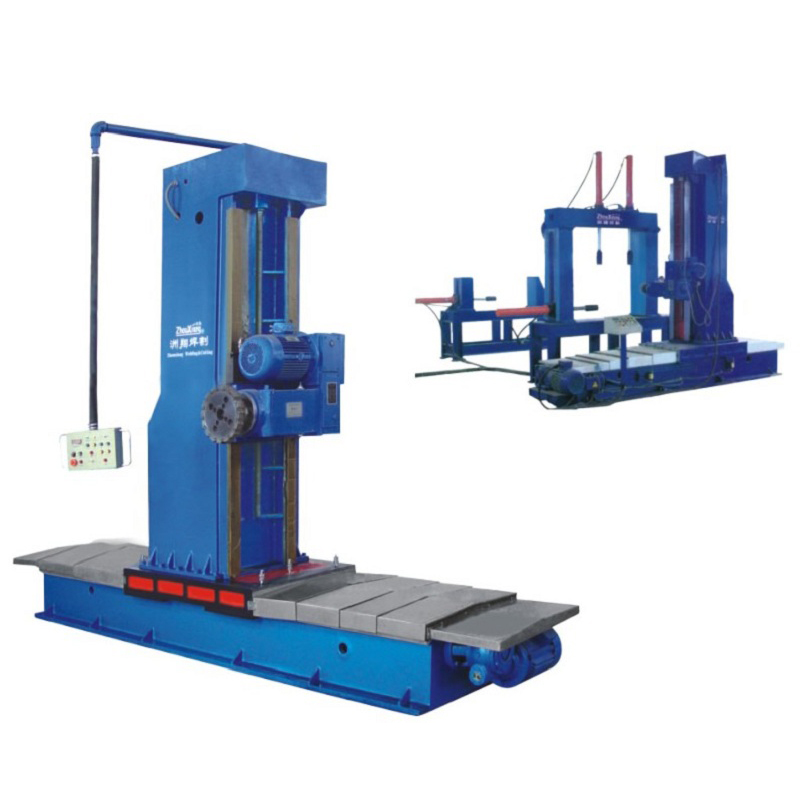

CNC face milling machine is made up of milling head, elevation column, worktable, bed, mechanical feeding system, electric control system, CNC system, guideway protective device and miller. It is used for two ends of H-beam and box column welding and rolling face milling and processing. It can mill the side face of H-beam steel and box column. It is convenient operation, simple structure and fast adjustment, which is necessary equipment for profile steel professional manufacturer.
Technical parameter
● Power of milling motor: P=5.5Kw; 1440rpm
● machine dimension: 4200*1200*3040mm
● machine weight: about 5.5ton
● dimension of sliding table: 1200×750mm
● Max stroke of sliding table: L=1500mm
● Moving speed of workpiece forward: V=54.8~548mm/min
● Quick return speed of sliding table: V=822mm/min
● Horizontal driving motor power: 3KW/4KW (turning speed is 1500/960rpm)
● Vertical driving motor power: 1.5KW (turning speed is 1400rpm)
● Milling head turning speed of main shaft: 125-630rpm
stretch out length of main shaft: 63mm
● Diameter of milling cutter: 200-320mm
● Vertical forward speed: 53-530mm/min
● Quick elevating speed of milling head: 530mm/min
From the supplier
CNC face milling machine is made up of milling head, elevation column, worktable, bed, mechanical feeding system, electric control system, CNC system, guideway protective device and miller. It is used for two ends of H-beam and box column welding and rolling face milling and processing. It can mill the side face of H-beam steel and box column. It is convenient operation, simple structure and fast adjustment, which is necessary equipment for profile steel professional manufacturer.
Technical parameter
● Power of milling motor: P=5.5Kw; 1440rpm
● machine dimension: 4200*1200*3040mm
● machine weight: about 5.5ton
● dimension of sliding table: 1200×750mm
● Max stroke of sliding table: L=1500mm
● Moving speed of workpiece forward: V=54.8~548mm/min
● Quick return speed of sliding table: V=822mm/min
● Horizontal driving motor power: 3KW/4KW (turning speed is 1500/960rpm)
● Vertical driving motor power: 1.5KW (turning speed is 1400rpm)
● Milling head turning speed of main shaft: 125-630rpm
stretch out length of main shaft: 63mm
● Diameter of milling cutter: 200-320mm
● Vertical forward speed: 53-530mm/min
● Quick elevating speed of milling head: 530mm/min
