H-beam assembling, welding and straightening machine
WUXI ZHOUXIANG COMPLETE SET OF WELDING EQUIPMENT CO., LTD
See what’s includedHide breakdown
- FOB goods (100)
- $3,400,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $119,002
- Section 301 tariff (25.0%)
- $850,013
- Customs fees (MPF/HMF)
- $4,885
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $3,400,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $119,002
- Section 301 tariff (25.0%)
- $850,013
- Customs fees (MPF/HMF)
- $4,885
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
H-beam assembling, welding and straightening machine
WUXI ZHOUXIANG COMPLETE SET OF WELDING EQUIPMENT CO., LTDSee what’s includedHide breakdown
- FOB goods (100)
- $3,400,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $119,002
- Section 301 tariff (25.0%)
- $850,013
- Customs fees (MPF/HMF)
- $4,885
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $3,400,050
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $119,002
- Section 301 tariff (25.0%)
- $850,013
- Customs fees (MPF/HMF)
- $4,885
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: steel, aluminum and iron
- Size: 26000*2500*4860mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: steel, aluminum and iron
- Size: 26000*2500*4860mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | steel, aluminum and iron |
|---|---|
| Size | 26000*2500*4860mm |
| Color | Zhouxiang standard blue |
Product details
| Materials | steel, aluminum and iron |
|---|---|
| Size | 26000*2500*4860mm |
| Color | Zhouxiang standard blue |
From the supplier

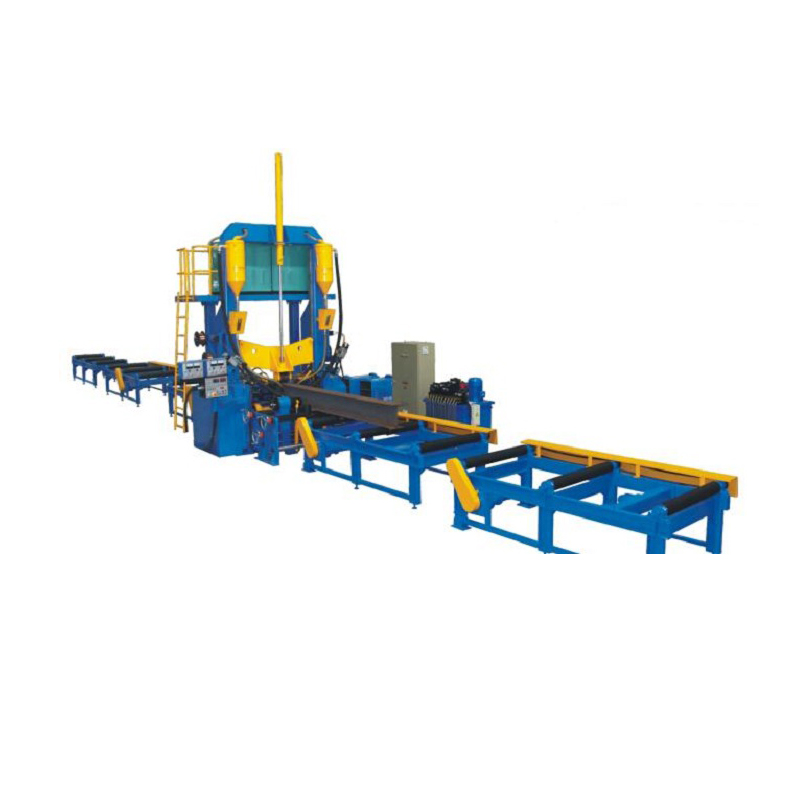

H-beam assembling welding and straightening integral machine is a special machine which can make direct assembling, welding, and straightening for the H-beam flange and web plate. It combines the working procedures of assembling machine, gantry welding machine, and straightening machine into one machine, which makes visible higher production efficiency, lower machine cost, and smaller space. Thus it is a high-efficient machine for H-beam and T-beam production.
This equipment is composed by assembling and welding main machine , assistant straightening machine, pre-centering system, driving roller conveyor, idle roller conveyor, flux recycling system, hydraulic system, electrical controlling system, and welding power source etc.
Technical parameter
- Web height： 200-1500 ㎜
- Web thickness： 6-14 ㎜
- Flange width： 200-800㎜
- Flange thickness： 6-20 ㎜
- Workpiece length： 4000-15000 ㎜
- Assembling and welding speed： 0.3-3 m/min
- Main machine power： 4 kW
- Conveyor roller power: 0.55×4=2.2kw
- Flux recycling system power: 3×2=6kw
- Hydraulic station power: 5.5kw
- Welding source power： 69 kW×2=138 kW (Lincoln DC-1000)
60 kW×2=120 kW (Zhouxiang MZ-1250)
From the supplier
H-beam assembling welding and straightening integral machine is a special machine which can make direct assembling, welding, and straightening for the H-beam flange and web plate. It combines the working procedures of assembling machine, gantry welding machine, and straightening machine into one machine, which makes visible higher production efficiency, lower machine cost, and smaller space. Thus it is a high-efficient machine for H-beam and T-beam production.
This equipment is composed by assembling and welding main machine , assistant straightening machine, pre-centering system, driving roller conveyor, idle roller conveyor, flux recycling system, hydraulic system, electrical controlling system, and welding power source etc.
Technical parameter
- Web height： 200-1500 ㎜
- Web thickness： 6-14 ㎜
- Flange width： 200-800㎜
- Flange thickness： 6-20 ㎜
- Workpiece length： 4000-15000 ㎜
- Assembling and welding speed： 0.3-3 m/min
- Main machine power： 4 kW
- Conveyor roller power: 0.55×4=2.2kw
- Flux recycling system power: 3×2=6kw
- Hydraulic station power: 5.5kw
- Welding source power： 69 kW×2=138 kW (Lincoln DC-1000)
60 kW×2=120 kW (Zhouxiang MZ-1250)
