Full automatic amorphous nanocrystal core winding machine
NANTONG ZHENHUAN TRADE CO., LTD.
See what’s includedHide breakdown
- FOB goods (100)
- $2,150,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $75,250
- Section 301 tariff (25.0%)
- $537,500
- Customs fees (MPF/HMF)
- $3,322
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $2,150,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $75,250
- Section 301 tariff (25.0%)
- $537,500
- Customs fees (MPF/HMF)
- $3,322
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Full automatic amorphous nanocrystal core winding machine
NANTONG ZHENHUAN TRADE CO., LTD.See what’s includedHide breakdown
- FOB goods (100)
- $2,150,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $75,250
- Section 301 tariff (25.0%)
- $537,500
- Customs fees (MPF/HMF)
- $3,322
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $2,150,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $75,250
- Section 301 tariff (25.0%)
- $537,500
- Customs fees (MPF/HMF)
- $3,322
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 1550 x 900 x 1800mm
- Color: Customized
- Control type: PLC
- Customized: Customized
- Certification: CE
- Layout: Vertical
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 1550 x 900 x 1800mm
- Color: Customized
- Control type: PLC
- Customized: Customized
- Certification: CE
- Layout: Vertical
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 1550 x 900 x 1800mm |
|---|---|
| Color | Customized |
| Control type | PLC |
| Customized | Customized |
| Certification | CE |
| Layout | Vertical |
Product details
| Size | 1550 x 900 x 1800mm |
|---|---|
| Color | Customized |
| Control type | PLC |
| Customized | Customized |
| Certification | CE |
| Layout | Vertical |
From the supplier

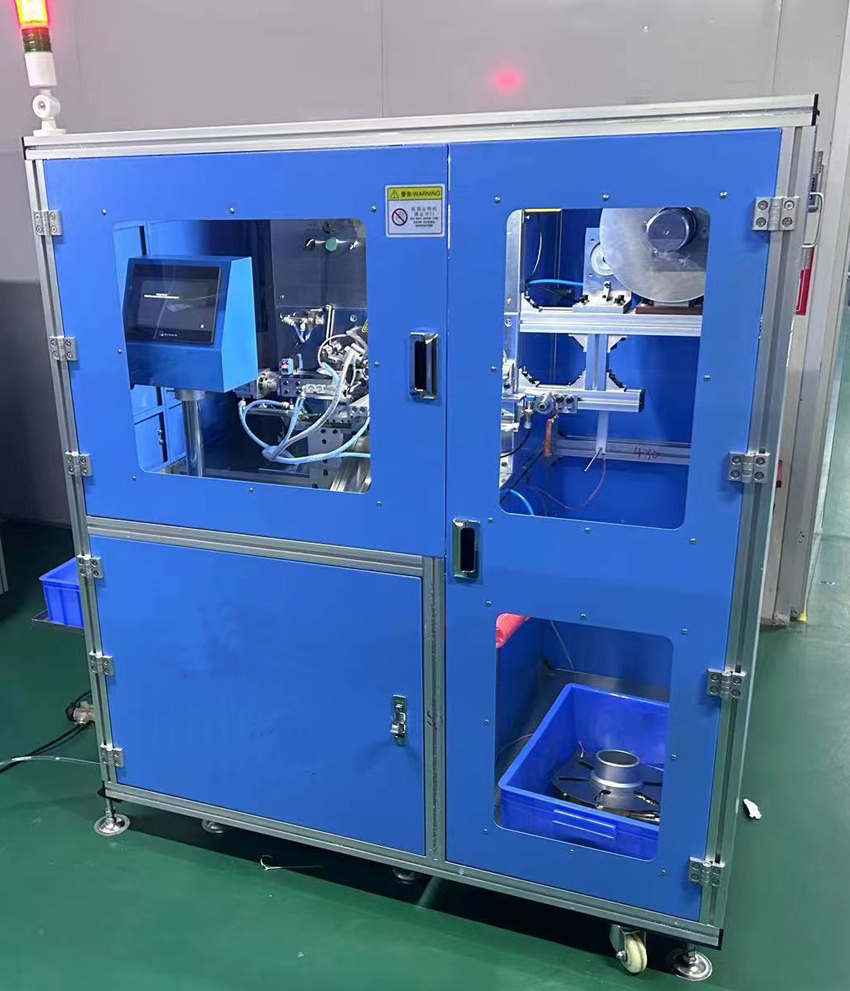

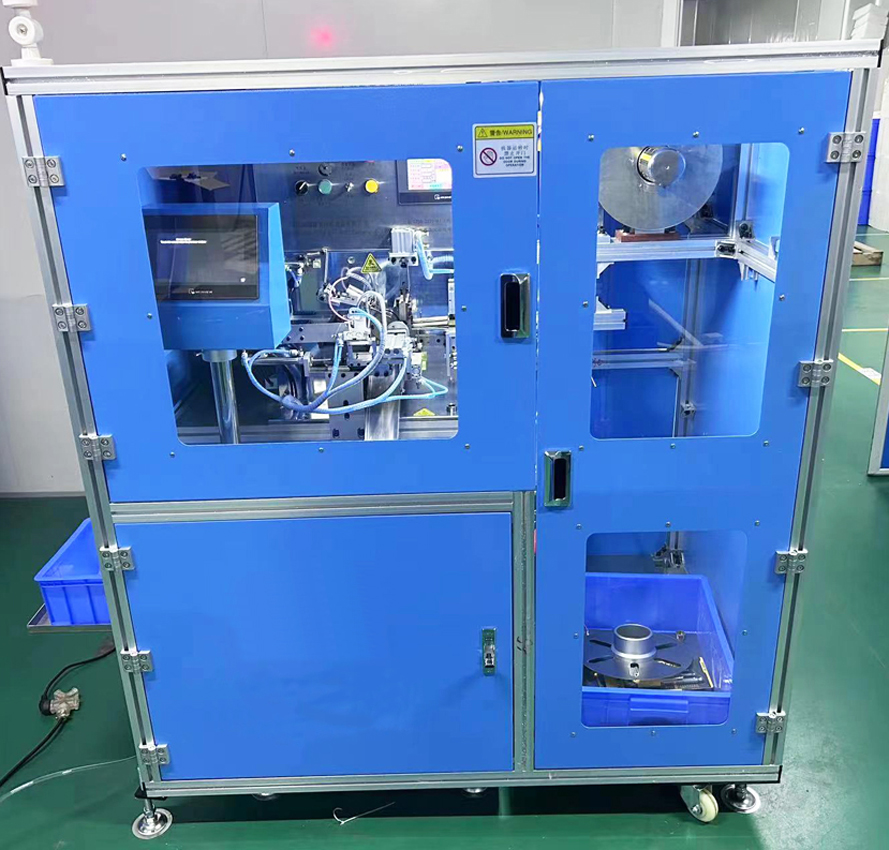

TOROIDAL NANOCRYSTAL CORE WINDER
