Copper tube straightening & chipless cutting machine
NANTONG ZHENHUAN TRADE CO., LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Copper tube straightening & chipless cutting machine
NANTONG ZHENHUAN TRADE CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier
This machine is for straightening copper coil tubes, detecting length and chipless cutting automatically.
I Main features:
- Servo feeding, stable and high re-positioning precision
- One time cutting four pieces, high efficient
- With pull-break function, less mouth shrinking rate
- PLC control, high automation—auto feed, auto cut, auto unload, auto alarm.
II Main technical data
No.
Item
Data
1
Suitable copper tube
Coil, TP1/2 (M/M2)
2
Suitable copper tube diameter range
Ф6.0~Ф20mm
3
Suitable copper tube wall thickness
0.3~1.0mm
4
Cutting length range
40~6000mm
5
Pay-off device
4
6
Copper coil reel size
OD: 1000~1250mm,ID: 130mm
Weight: max. 280kg
7
Cutting station
2 x 2 (or 1x4)*
8
Cutting speed
10 cuts per minute (@L=1000mm)*
9
Feeding speed
Max. 0.5m/s
10
One-time feeding stroke
Max. 1200mm
11
Straightness tolerance
≤2‰
12
Cut-to-length tolerance
≤0.3mm /1000mm
13
Length difference between two tubes
≤0.5mm
14
Tube end ID reduction ratio
f *
15
Roundness of cut tubes
Non-roundness ≤3% (diameter ≤Ф12.7mm)
Non-roundness≤0.4mm (dia>Ф12.7mm)
16
Surface condition after cut
No apparent scratch, drawing marks; no burrs
17
Compressed air
0.5-0.7MPa
18
Total electric consumption
6kW (3kW)
* 1- 2x2 means there are two separate driving system for cutting 2 pairs tubes in different diameter and different length; 1x4 means there is only driving system for cutting 4 tubes in same diameter and length.
* 2- When cutting length is less than 100mm, there will be no pre-stretching function.
III Main buildup:
3.1 Pay-off device: four, active decoiling

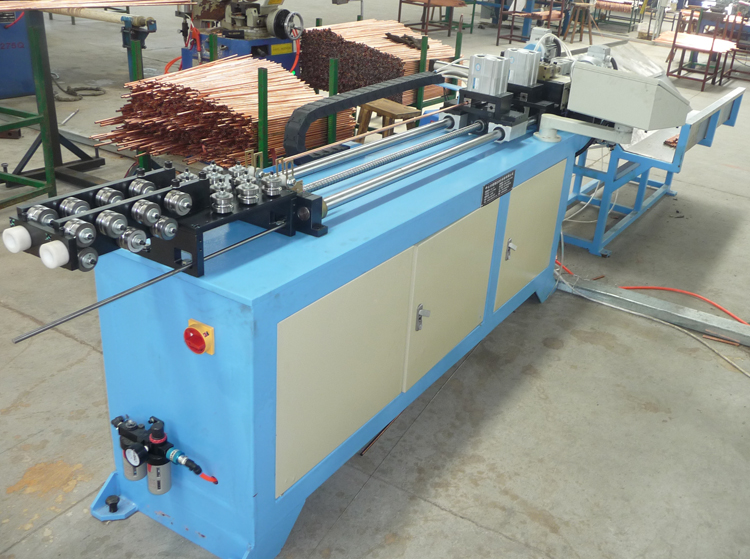

3.2 Straightening & rounding device: straightening deformation can be adjusted for different hardness copper tubes. When size changing, rounding wheel and straightening wheel will be changed.
3.3 Feeding device: driven by servo motor; Pulling and clamping dies are driven by enhanced pneumatic cylinders.

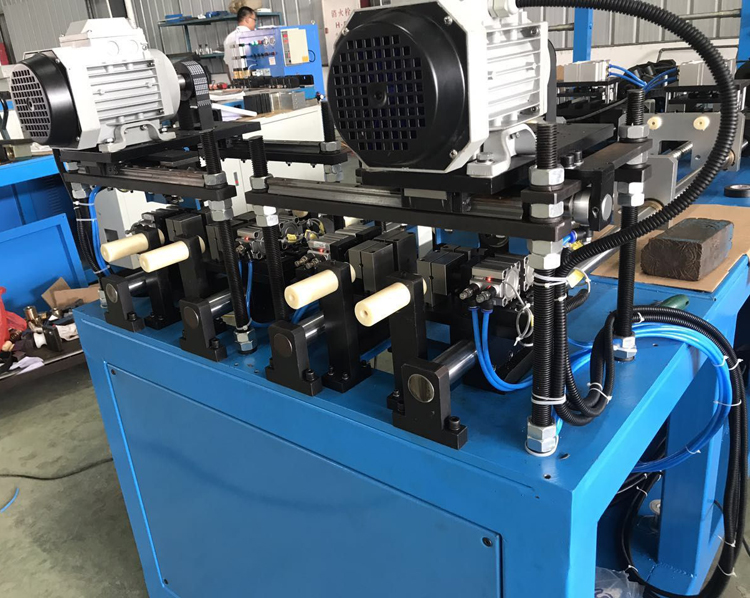

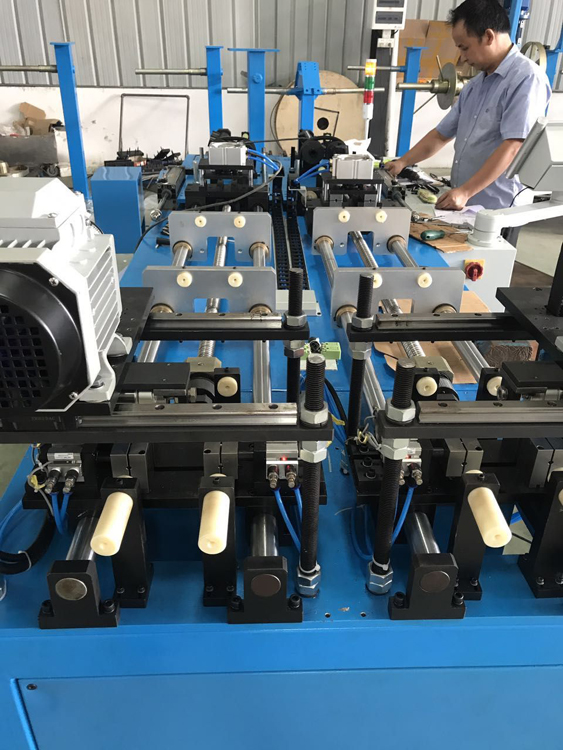

3.4 Cutting device: orbital-notching + stretching method, pneumatic driving feeding stroke of orbital blade, stable feeding and quick returning; The feeding stroke can be fine adjusted to assure same mouth shrinking rate; Equipped with lubricant spraying device for lengthening blade life.

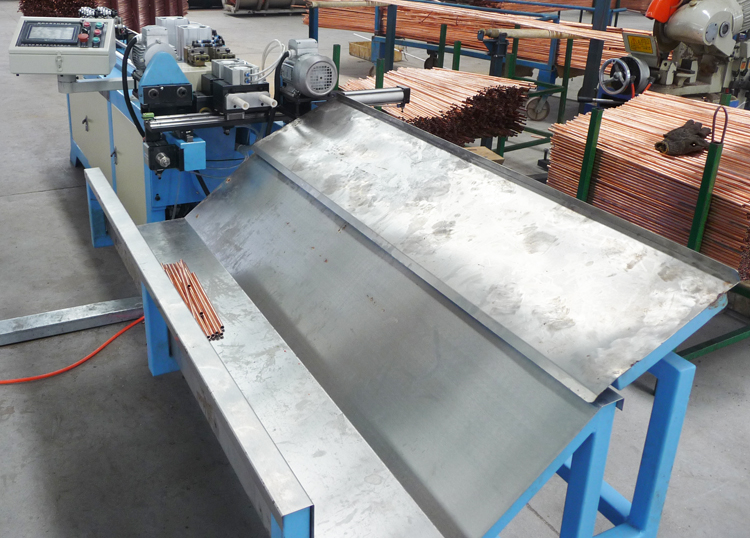

3.5 Unloading table: covered with stainless steel, 1500mm long
3.6 All the clamping dies are made by chrome steel, quenched HRC 50
3.7 Control system: PLC + touch screen
IV Main configuration:
- PLC + HMI: Estun from China
- Pneumatic components: SMC from Japan / Pneulead from Italy
- Servo motor: Estun from China
- Limit switch: Autonics from Korea
- Ball screw: TBI from Taiwan
- Buttons & relays: IDEC from Japan / SIEMENS from China
- Main bearings: NSK from Japan
From the supplier
This machine is for straightening copper coil tubes, detecting length and chipless cutting automatically.
I Main features:
- Servo feeding, stable and high re-positioning precision
- One time cutting four pieces, high efficient
- With pull-break function, less mouth shrinking rate
- PLC control, high automation—auto feed, auto cut, auto unload, auto alarm.
II Main technical data
No.
Item
Data
1
Suitable copper tube
Coil, TP1/2 (M/M2)
2
Suitable copper tube diameter range
Ф6.0~Ф20mm
3
Suitable copper tube wall thickness
0.3~1.0mm
4
Cutting length range
40~6000mm
5
Pay-off device
4
6
Copper coil reel size
OD: 1000~1250mm,ID: 130mm
Weight: max. 280kg
7
Cutting station
2 x 2 (or 1x4)*
8
Cutting speed
10 cuts per minute (@L=1000mm)*
9
Feeding speed
Max. 0.5m/s
10
One-time feeding stroke
Max. 1200mm
11
Straightness tolerance
≤2‰
12
Cut-to-length tolerance
≤0.3mm /1000mm
13
Length difference between two tubes
≤0.5mm
14
Tube end ID reduction ratio
f *
15
Roundness of cut tubes
Non-roundness ≤3% (diameter ≤Ф12.7mm)
Non-roundness≤0.4mm (dia>Ф12.7mm)
16
Surface condition after cut
No apparent scratch, drawing marks; no burrs
17
Compressed air
0.5-0.7MPa
18
Total electric consumption
6kW (3kW)
* 1- 2x2 means there are two separate driving system for cutting 2 pairs tubes in different diameter and different length; 1x4 means there is only driving system for cutting 4 tubes in same diameter and length.
* 2- When cutting length is less than 100mm, there will be no pre-stretching function.
III Main buildup:
3.1 Pay-off device: four, active decoiling
3.2 Straightening & rounding device: straightening deformation can be adjusted for different hardness copper tubes. When size changing, rounding wheel and straightening wheel will be changed.
3.3 Feeding device: driven by servo motor; Pulling and clamping dies are driven by enhanced pneumatic cylinders.
3.4 Cutting device: orbital-notching + stretching method, pneumatic driving feeding stroke of orbital blade, stable feeding and quick returning; The feeding stroke can be fine adjusted to assure same mouth shrinking rate; Equipped with lubricant spraying device for lengthening blade life.
3.5 Unloading table: covered with stainless steel, 1500mm long
3.6 All the clamping dies are made by chrome steel, quenched HRC 50
3.7 Control system: PLC + touch screen
IV Main configuration:
- PLC + HMI: Estun from China
- Pneumatic components: SMC from Japan / Pneulead from Italy
- Servo motor: Estun from China
- Limit switch: Autonics from Korea
- Ball screw: TBI from Taiwan
- Buttons & relays: IDEC from Japan / SIEMENS from China
- Main bearings: NSK from Japan
