Copper tube straightening flaring and bending machine
NANTONG ZHENHUAN TRADE CO., LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Copper tube straightening flaring and bending machine
NANTONG ZHENHUAN TRADE CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier
I Description:

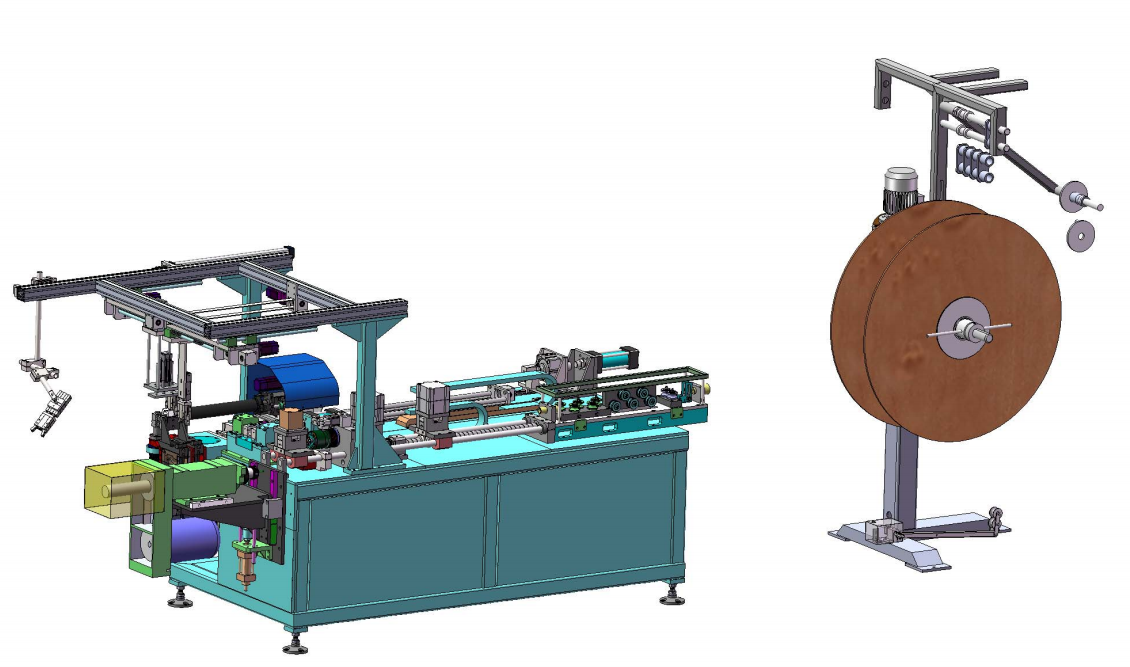

This machine is specially designed for decoiling, straightening, end forming, bending and cutting coil copper tubes into different shapes, used in air conditioners and heat exchangers.
This machine is an integrated machine, combing straightening, end forming and bending together. There is robot manipulator automatically move end-formed parts to bending station.
The machine is PLC control, HMI operation, full automatic, high uniformity, no labor required.
This machine line is designed to be heavy-duty for max. copper tube OD 22mm. The clamping force for bending will be hydraulic and servo motor for bending will be much bigger.
II Main technical data
No.
Item
Data
1
Suitable copper/aluminum tube material
Hard / soft
2
Suitable copper tube reel size
Max. weight 280kg
Max. OD: Ф1250mm; ID: Ф130mm
3
Suitable copper tube diameter
Max. Φ22mm x 1.2mm
4
Bending
station
Bending radius
Max. R 60mm; Min. R 10mm
5
Max. Workpiece length
1200mm
6
Feeding axis (X)
Stroke
0 - 1200mm
7
Speed
0 - 1200mm/sec
8
Precision
±0.05mm
9
Rotating axis (Y)
Angle
0 - ±360°
10
Speed
0 - 600°/sec
11
Precision
±0.05°
12
Bending axis (Z)
Angle
0 - 200°
13
Speed
0 - 300°/sec
14
Precision
±0.05°
15
Decoiling & straightening station
One-time feeding stroke
Max. 1000mm
16
Linear straightness error
≤2‰
17
Re-positioning error
When L≤1000mm, ≤0.3mm
When L≥1000 mm, ≤0.6mm
18
Tube end ID reduction ratio
f
19
Length difference between tubes
≤0.5mm (L=1000)
20
Surface condition after cut
No apparent scratch, drawing marks; no burrs
21
Roundness of cut tubes
When diameter ≤ ф12.7, ≤3%
When diameter >ф12.7, ≤0.4mm
22
End forming station
Power
Hydraulic
23
Working-stations
1
24
End forming method
flaring
25
Overall equipment effectiveness
3~4 seconds per bend
26
Electric power
380V / 50Hz / 7.0kW
27
Whole line dimension
L4000 x W1000 x H1300mm
28
Whole weight
1000kg
29
Pneumatic source
0.5 - 0.7MPa
30
Hydraulic pressure
5 - 7MPa
* 1-When cutting length is less than 100mm, there will be pre-stretching function.
III Main configuration
-- PLC & HMI: Mitsubishi from Japan
-- Controller for bending: FUNS
-- Servo motor and driver: Mitsubishi from Japan
-- Circuit breaker: FUJI from Taiwan
-- Buttons & relay: IDEC from Japan
-- Pneumatic components: AIRTAC from Taiwan
-- Hydraulic components: Famous brands from Taiwan
-- Linear guide: LSK from Japan
-- Ball screw: TBI from Taiwan
From the supplier
I Description:
This machine is specially designed for decoiling, straightening, end forming, bending and cutting coil copper tubes into different shapes, used in air conditioners and heat exchangers.
This machine is an integrated machine, combing straightening, end forming and bending together. There is robot manipulator automatically move end-formed parts to bending station.
The machine is PLC control, HMI operation, full automatic, high uniformity, no labor required.
This machine line is designed to be heavy-duty for max. copper tube OD 22mm. The clamping force for bending will be hydraulic and servo motor for bending will be much bigger.
II Main technical data
No.
Item
Data
1
Suitable copper/aluminum tube material
Hard / soft
2
Suitable copper tube reel size
Max. weight 280kg
Max. OD: Ф1250mm; ID: Ф130mm
3
Suitable copper tube diameter
Max. Φ22mm x 1.2mm
4
Bending
station
Bending radius
Max. R 60mm; Min. R 10mm
5
Max. Workpiece length
1200mm
6
Feeding axis (X)
Stroke
0 - 1200mm
7
Speed
0 - 1200mm/sec
8
Precision
±0.05mm
9
Rotating axis (Y)
Angle
0 - ±360°
10
Speed
0 - 600°/sec
11
Precision
±0.05°
12
Bending axis (Z)
Angle
0 - 200°
13
Speed
0 - 300°/sec
14
Precision
±0.05°
15
Decoiling & straightening station
One-time feeding stroke
Max. 1000mm
16
Linear straightness error
≤2‰
17
Re-positioning error
When L≤1000mm, ≤0.3mm
When L≥1000 mm, ≤0.6mm
18
Tube end ID reduction ratio
f
19
Length difference between tubes
≤0.5mm (L=1000)
20
Surface condition after cut
No apparent scratch, drawing marks; no burrs
21
Roundness of cut tubes
When diameter ≤ ф12.7, ≤3%
When diameter >ф12.7, ≤0.4mm
22
End forming station
Power
Hydraulic
23
Working-stations
1
24
End forming method
flaring
25
Overall equipment effectiveness
3~4 seconds per bend
26
Electric power
380V / 50Hz / 7.0kW
27
Whole line dimension
L4000 x W1000 x H1300mm
28
Whole weight
1000kg
29
Pneumatic source
0.5 - 0.7MPa
30
Hydraulic pressure
5 - 7MPa
* 1-When cutting length is less than 100mm, there will be pre-stretching function.
III Main configuration
-- PLC & HMI: Mitsubishi from Japan
-- Controller for bending: FUNS
-- Servo motor and driver: Mitsubishi from Japan
-- Circuit breaker: FUJI from Taiwan
-- Buttons & relay: IDEC from Japan
-- Pneumatic components: AIRTAC from Taiwan
-- Hydraulic components: Famous brands from Taiwan
-- Linear guide: LSK from Japan
-- Ball screw: TBI from Taiwan
