From the supplier
I Description

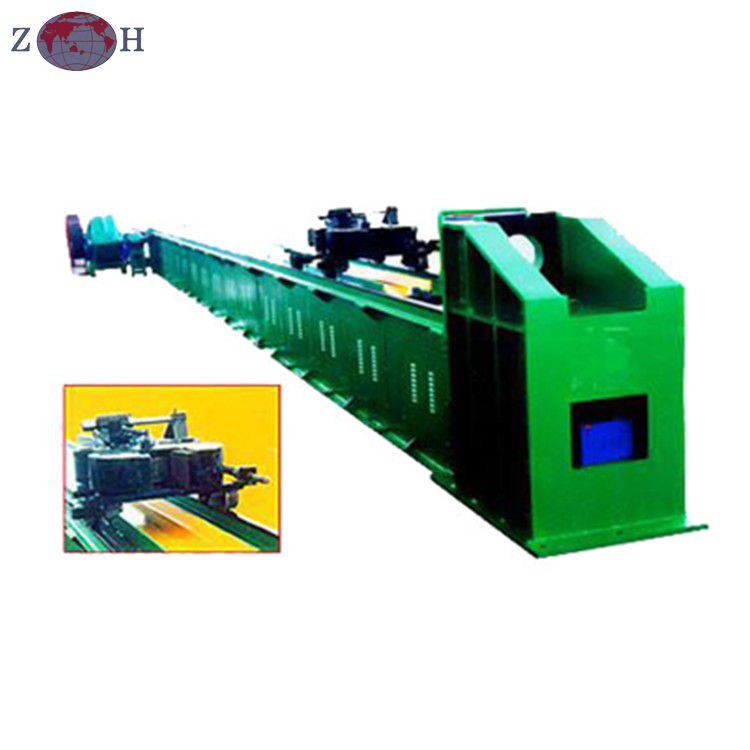

This cold drawing bench is designed for drawing copper alloy tubes, stainless steel tubes, carbon steel tubes, with Max. diameter 60mm, and effective drawing length 6m, with the auto drawing core mould.
II Main technical data
No.
Item
Data
1
Main driving motor power
75kw
3
Code of main reducer gearbox
ZS145
4
The Max. diameter of the tubes
60mm
5
The Max. section area reduction ratio
20%
5
Main transmission parts
Chain pitch
180mm
Chain plate material
65Mn
Chain shaft material
40Cr
6
Trolley return
Return motor power
2.2KW
Trolley return speed
60m/min
7
Effective drawing length
6m
8
Drawing speed
12m/min
9
The length of the machine body
8m
10
The length of the core frame
6m
11
The lenght of the core thruster
6m
Note: Automatic unloading device is optional.
We can make the Automatic double line tube drawing machine or Automatic triple line tube drawing machine.
