About this product
- Materials: steel
- Size: 2300 x 3200 x 1800mm
- Color: as customzied
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: steel
- Size: 2300 x 3200 x 1800mm
- Color: as customzied
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | steel |
|---|---|
| Size | 2300 x 3200 x 1800mm |
| Color | as customzied |
Product details
| Materials | steel |
|---|---|
| Size | 2300 x 3200 x 1800mm |
| Color | as customzied |
From the supplier

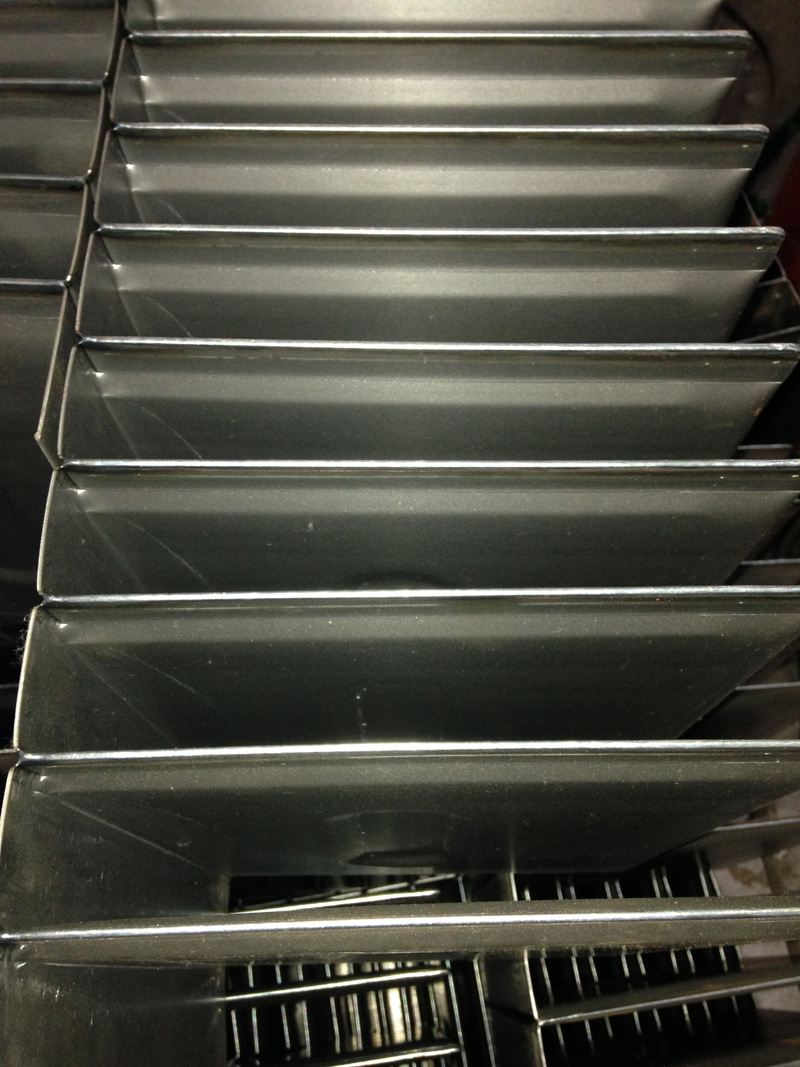

Corrugated tank welding machine for transformer is specially designed for welding corrugated tank fin wall panels automatically.
Corrugated tank welding machine for transformer adopts manual loading, automatic positioning, automatic clamping, automatic welding and manual unloading.
Main technical data of corrugated tank welding machine for transformer:
Item
Data
Suitable fin size
Max. 1600 x 400mm (can be specially ordered)
Suitable fin thickness
1-1.5mm
Suitable space inside fin
5-8mm
Suitable distance between fins
40-80mm
Welding speed
When fin height is 100mm, 3 fins per minute; When fin height 200mm, 2 fins per minute (such speed is also based on the fin thickness)
Argon arc welding machine (TIG)
Two pieces, welding current 10-300A
Compressed air needed
0.4MPa
Chain driving motor power
3.2kW
Machine weight
About 4000kg
Dimension
About 2300 x 3200 x 1800mm
Main configuration of corrugated tank welding machine for transformer:
1) Electric control, Schneider from Germany
2) Welding torch, 2 sets, Sanrex from Japan
3) Pneumatic cylinder: 6 sets, from China
4) Step motor: Delta from Taiwan
5) PLC: Schneider from Germany
6) Touch screen: Schneider from Germany
7) Sensor: ROKO from China
From the supplier
Corrugated tank welding machine for transformer is specially designed for welding corrugated tank fin wall panels automatically.
Corrugated tank welding machine for transformer adopts manual loading, automatic positioning, automatic clamping, automatic welding and manual unloading.
Main technical data of corrugated tank welding machine for transformer:
Item
Data
Suitable fin size
Max. 1600 x 400mm (can be specially ordered)
Suitable fin thickness
1-1.5mm
Suitable space inside fin
5-8mm
Suitable distance between fins
40-80mm
Welding speed
When fin height is 100mm, 3 fins per minute; When fin height 200mm, 2 fins per minute (such speed is also based on the fin thickness)
Argon arc welding machine (TIG)
Two pieces, welding current 10-300A
Compressed air needed
0.4MPa
Chain driving motor power
3.2kW
Machine weight
About 4000kg
Dimension
About 2300 x 3200 x 1800mm
Main configuration of corrugated tank welding machine for transformer:
1) Electric control, Schneider from Germany
2) Welding torch, 2 sets, Sanrex from Japan
3) Pneumatic cylinder: 6 sets, from China
4) Step motor: Delta from Taiwan
5) PLC: Schneider from Germany
6) Touch screen: Schneider from Germany
7) Sensor: ROKO from China
