From the supplier

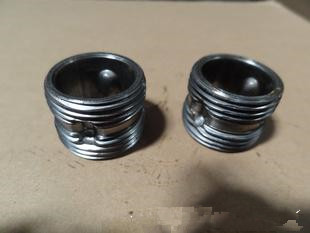

Radiator threaded nipple making machine
The process:
Cutting tube with slotting – chamfering double side -- denting two grooves – thread rolling
Full Automatic Tube Cutting Machine
I Description of the machine
This machine is used for cutting steel tubes with slotting function.
II Main technical data
Item
Data
Machine code
ZHY40-100
Suitable steel tube diameter
Φ10-40mm
Output
35pcs/min (Φ40.3mm)
Cut-to-length precision
Less than 0.05mm
Spindle speed
930, 1050, 1270, 1420 rpm
Main driving motor power
3kW
Servo feeding motor & driver
Delta from Taiwan
Compressed air source
0.6MPa
Air flow
0.35m3/min
Machine dimension
1120 x 800 x 1380mm
Machine weight
850kg
Voltage
380V, 3Phase, 50Hz.
Video link
https://youtu.be/sjs_H77I0HA
Automatic Chamfering Machine
I Description of the machine
This machine is special for chamfering double side with automatic
II Main technical data
Item
Data
Machine code
DJ-50
Suitable diameter of tube
15-55mm
Suitable length of tube
18-90mm
Output
13-25 pcs/min
Length tolerance
±0.05mm
Motor power
2.2kW x 2
Main spindle speed
1400rpm
Feeding type
Vibrating disc
Air pressure
0.4-0.7Mpa
Machine dimension
1500 x 1500 x 1800mm
Machine weight
550kg
Voltage
380V, 3Phase, 50Hz.
Video link
https://youtu.be/fff3isgWzsc
Automatic Hydraulic denting Machine
I Description of the machine
This machine is used for denting steel tubes.
II Main technical data
Item
Data
Machine code
DT-100
Max. hydraulic pressure
10MPa
Suitable Max. steel tube diameter
35mm
Output
15pcs/min
Hydraulic feed speed
adjustable
Total power
2.2kW
Machine size
1000 x 1000 x 1400mm
Weight of machine
600kg
Voltage
380V, 3Phase, 50Hz.
Video link
https://youtu.be/9k_gkE5fmXM
Automatic Thread Rolling Machine
I Description
This machine is used for thread rolling aluminum radiator nipples automatically, with automatic vibrating disk feeding device, high working efficiency.
II Main technical data
Item
Data
Machine code
GSM-3T-50
Max. hydraulic pressure
3MPa
Suitable steel tube diameter
22-42mm
Suitable steel tube length
8-40mm
Output
15pcs/min
Suitable thread pitch
0.5-3mm
Hole diameter of thread rolling die
35mm
Height of thread rolling die
40mm
Total power
8kW
Machine size
2200 x 1400 x 1700mm
Weight of machine
1300kg
Voltage
380V, 3Phase, 50Hz.
Video link
https://youtu.be/92C2DPQRYco
From the supplier
Radiator threaded nipple making machine
The process:
Cutting tube with slotting – chamfering double side -- denting two grooves – thread rolling
Full Automatic Tube Cutting Machine
I Description of the machine
This machine is used for cutting steel tubes with slotting function.
II Main technical data
Item
Data
Machine code
ZHY40-100
Suitable steel tube diameter
Φ10-40mm
Output
35pcs/min (Φ40.3mm)
Cut-to-length precision
Less than 0.05mm
Spindle speed
930, 1050, 1270, 1420 rpm
Main driving motor power
3kW
Servo feeding motor & driver
Delta from Taiwan
Compressed air source
0.6MPa
Air flow
0.35m3/min
Machine dimension
1120 x 800 x 1380mm
Machine weight
850kg
Voltage
380V, 3Phase, 50Hz.
Video link
https://youtu.be/sjs_H77I0HA
Automatic Chamfering Machine
I Description of the machine
This machine is special for chamfering double side with automatic
II Main technical data
Item
Data
Machine code
DJ-50
Suitable diameter of tube
15-55mm
Suitable length of tube
18-90mm
Output
13-25 pcs/min
Length tolerance
±0.05mm
Motor power
2.2kW x 2
Main spindle speed
1400rpm
Feeding type
Vibrating disc
Air pressure
0.4-0.7Mpa
Machine dimension
1500 x 1500 x 1800mm
Machine weight
550kg
Voltage
380V, 3Phase, 50Hz.
Video link
https://youtu.be/fff3isgWzsc
Automatic Hydraulic denting Machine
I Description of the machine
This machine is used for denting steel tubes.
II Main technical data
Item
Data
Machine code
DT-100
Max. hydraulic pressure
10MPa
Suitable Max. steel tube diameter
35mm
Output
15pcs/min
Hydraulic feed speed
adjustable
Total power
2.2kW
Machine size
1000 x 1000 x 1400mm
Weight of machine
600kg
Voltage
380V, 3Phase, 50Hz.
Video link
https://youtu.be/9k_gkE5fmXM
Automatic Thread Rolling Machine
I Description
This machine is used for thread rolling aluminum radiator nipples automatically, with automatic vibrating disk feeding device, high working efficiency.
II Main technical data
Item
Data
Machine code
GSM-3T-50
Max. hydraulic pressure
3MPa
Suitable steel tube diameter
22-42mm
Suitable steel tube length
8-40mm
Output
15pcs/min
Suitable thread pitch
0.5-3mm
Hole diameter of thread rolling die
35mm
Height of thread rolling die
40mm
Total power
8kW
Machine size
2200 x 1400 x 1700mm
Weight of machine
1300kg
Voltage
380V, 3Phase, 50Hz.
Video link
https://youtu.be/92C2DPQRYco
