From the supplier

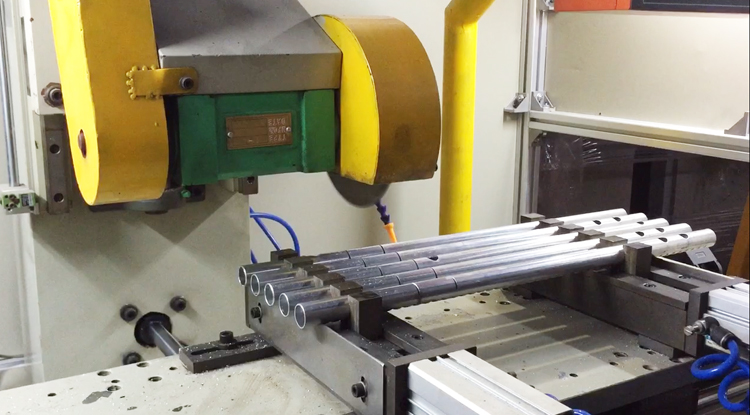

This machine is specially designed for slotting grooves on header pipes.

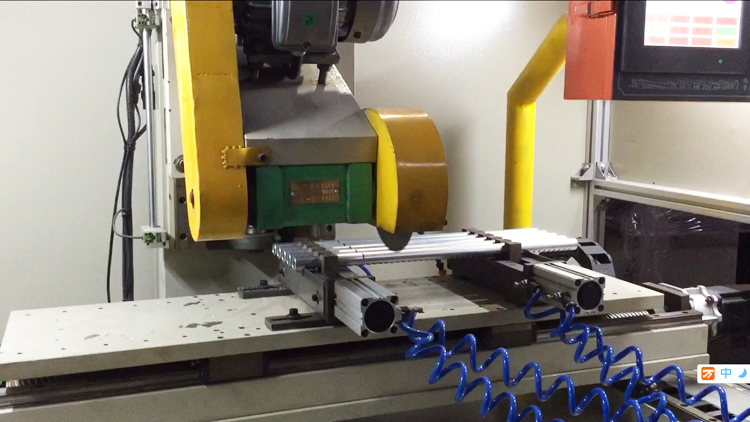

This machine is servo motor feeding, PLC control, touch screen operation, full automatic (except for manual clamping and unloading). Groove numbers and distance between every groove can be preset.

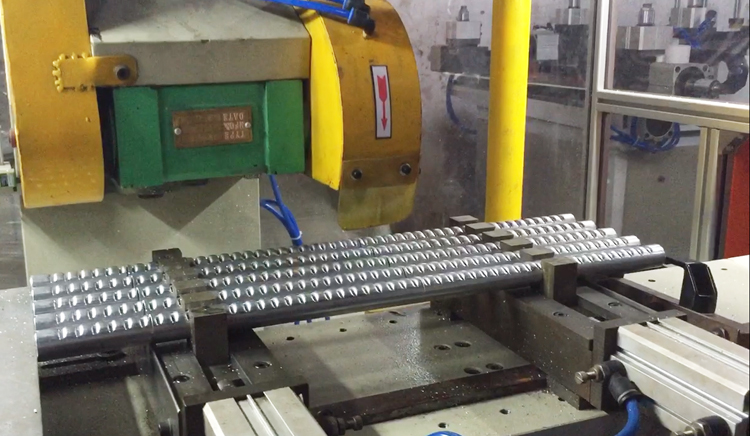

The machine can cut grooves on max. 5 pipes simultaneously.
Main technical data
Item
Data
Suitable header pipe diameter
customized
Suitable max. header pipe length
750mm
Max. groove numbers on one pipe
Max. 10 pieces
Min. distance between pipe end and first groove
20mm
Groove position tolerance
+/-0.5mm
Production speed
5s per groove
Max. Header pipe quantity to be grooved per cycle
5
Cutting saw blade speed
3500rpm
Air source
0.4~0.68MPa
Total motor power
1.5kW
