From the supplier

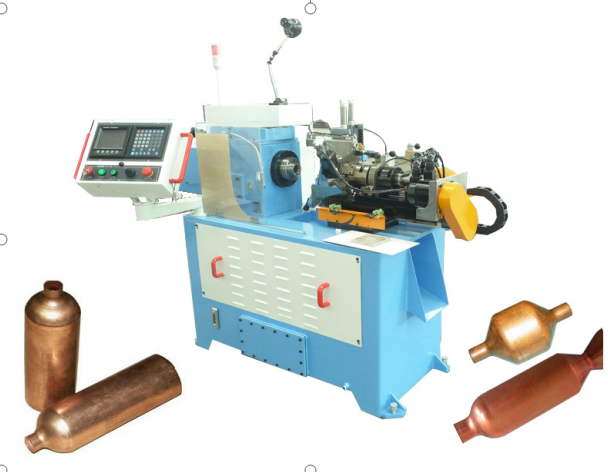

This machine is special designed for closing or necking-in metal pipes which are used as oil storage, muffler and drier for AC, refrigerator, heater, automotive, etc.

The main spinning head can be 2D rotating platform or 3-jaw rotating head, based on product details.

I Main features:

l Two axis CNC control, small error, high speed
l Hydraulic system is equipped with water cooling system
l High speed mandrel speed 2800rpm, inverter control, speed adjustable
l Automatic loading & unloading

II Main technical data

No.

Item

Data

Max. tube outer diameter

Φ30 (copper)

Min. tube outer diameter

Φ4mm (copper)

Copper tube wall thickness

Less than 1mm

Max. workpiece length

200mm

Min. workpiece length

60mm

Average working efficiency

About 12s per end

Control method

CNC double-axis control

X, Y axis positioning precision

±0.05mm

X axis stroke

200mm

X axis stroke speed

300mm/s

Y axis stroke

100mm

Y axis stroke speed

150mm/s

Loading/unloading method

Automatic

Capacity of storage hopper

More than 20 pieces workpiece

Driving method

Hydraulic + pneumatic

Main spindle speed

3000 rpm

Total power consumption

6.5kW

Air source

0.5-0.6MPa

Hydraulic pressure

5MPa

Machine dimension

About 2400 x 1400 x 1700mm

Machine weight

About 1400kg

III Main structure and configuration

3.1 Composition: main body, automatic loading & unloading device, hydraulic clamping device, spinning head , fixed-core tail stock, hydraulic system, electric control system, etc.

3.2 Hydraulic valves and pump are SHENGER or same quality from Taiwan

3.3 2-axis CNC control system is DELTA from Taiwan

3.4 Servo motors and drivers are DELTA from Taiwan

3.5 Ball screws and linear guide: famous brand from Taiwan

3.6 Approaching switches: Autonics from Korea

3.7 Buttons & main electric components: Schneider

IV Supplying range:

4.1 Complete machine

4.2 One set of spinning die (according to Buyer’s drawing)

4.3 Operation manual, electric drawing, hydraulic drawing

4.4 Tool kit
