From the supplier

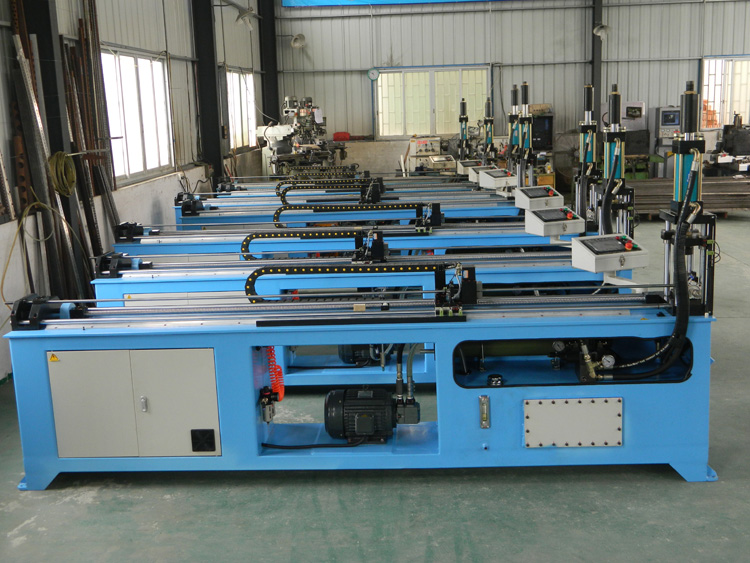

This machine is special designed for punching holes on rectangular tube/pipes automatically, whatever steel, stainless steel or aluminum materials.
This machine is comprised of machine frame, servo feeding device, hydraulic punching device, hydraulic system, electric control system and punching molds.
Main features:
- - Servo feeding, hydraulic punching
- - PLC + HMI, convenient operation
- - Total 50 units programs can be saved
- - Auto detecting and alarming
- - Auto counting, auto stopping
- - Hydraulic station equipped with compulsive air cooler
Main technical data
No.
Item
Data
1
Suitable max. pipe length
3000mm
2
Suitable max. pipe wall thickness
3mm
3
The space between tube end and the latest hole
100mm
4
Hole position precision
±0.3mm
5
Working efficiency
3sec per holes
6
Operation method
Automatic/ manual
7
Workpiece loading method
manual
8
Controlling method
PLC+ 5.7" HMI
9
Clamping power
Hydraulic
10
Punching power
Hydraulic
11
Hydraulic pressure
11MPa
12
Machine dimension
About 3700 x 530 x 2100mm
13
Machine weight
About 1500kg
For small size tube /pipes, two tubes can be punched simultaneously.

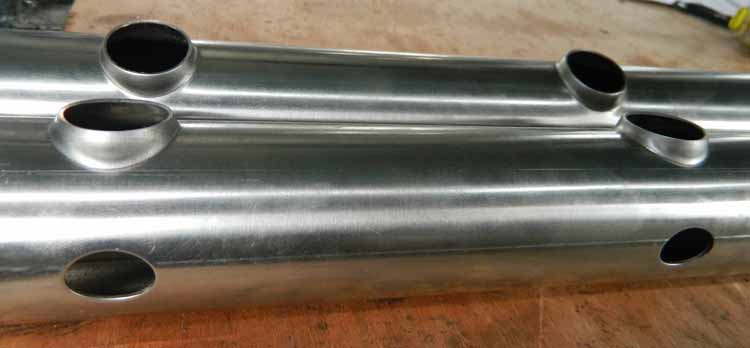

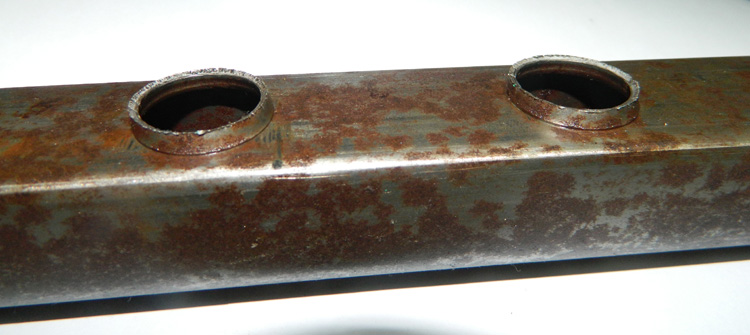

We have capability for other special holes punching:
