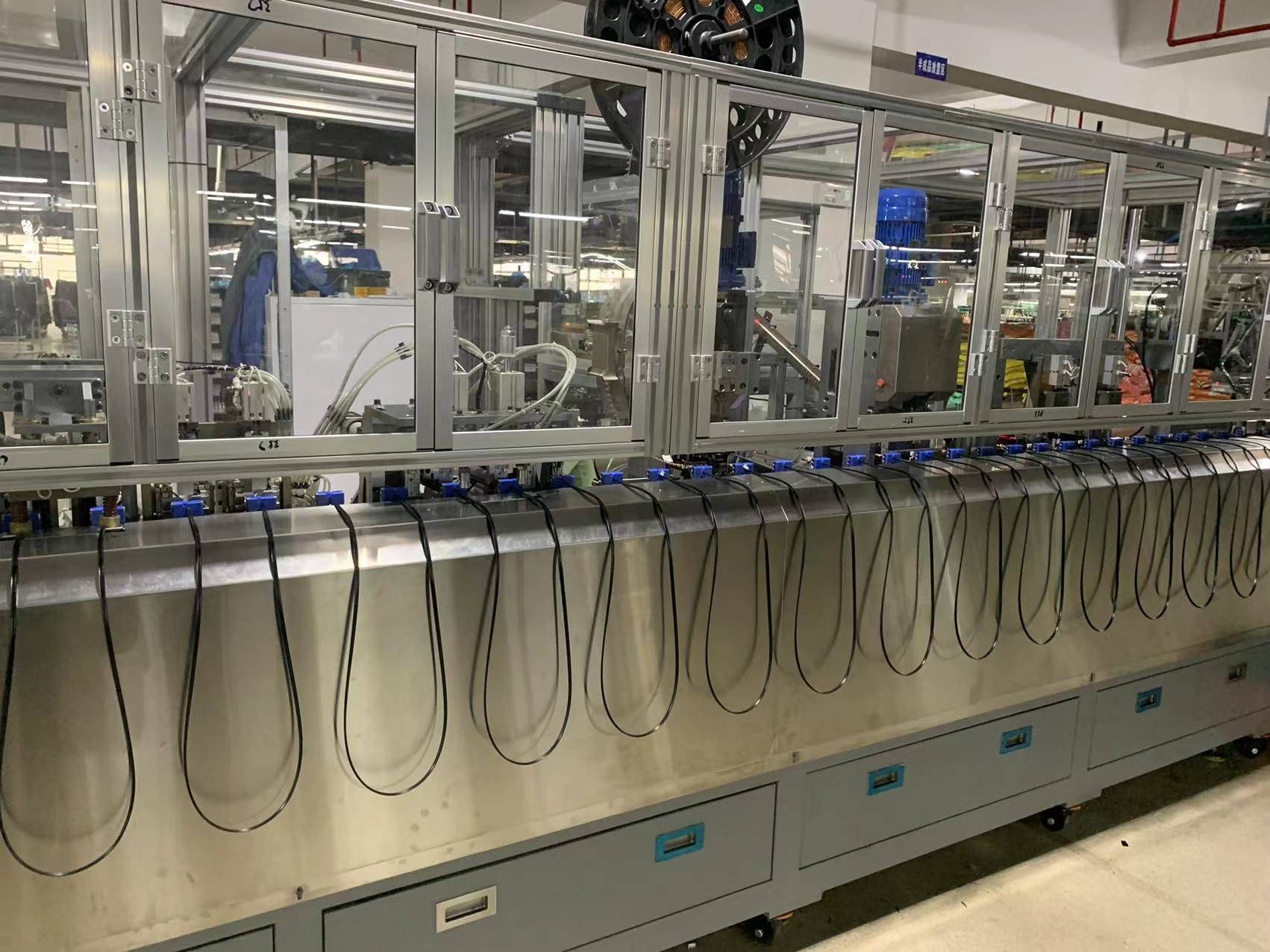

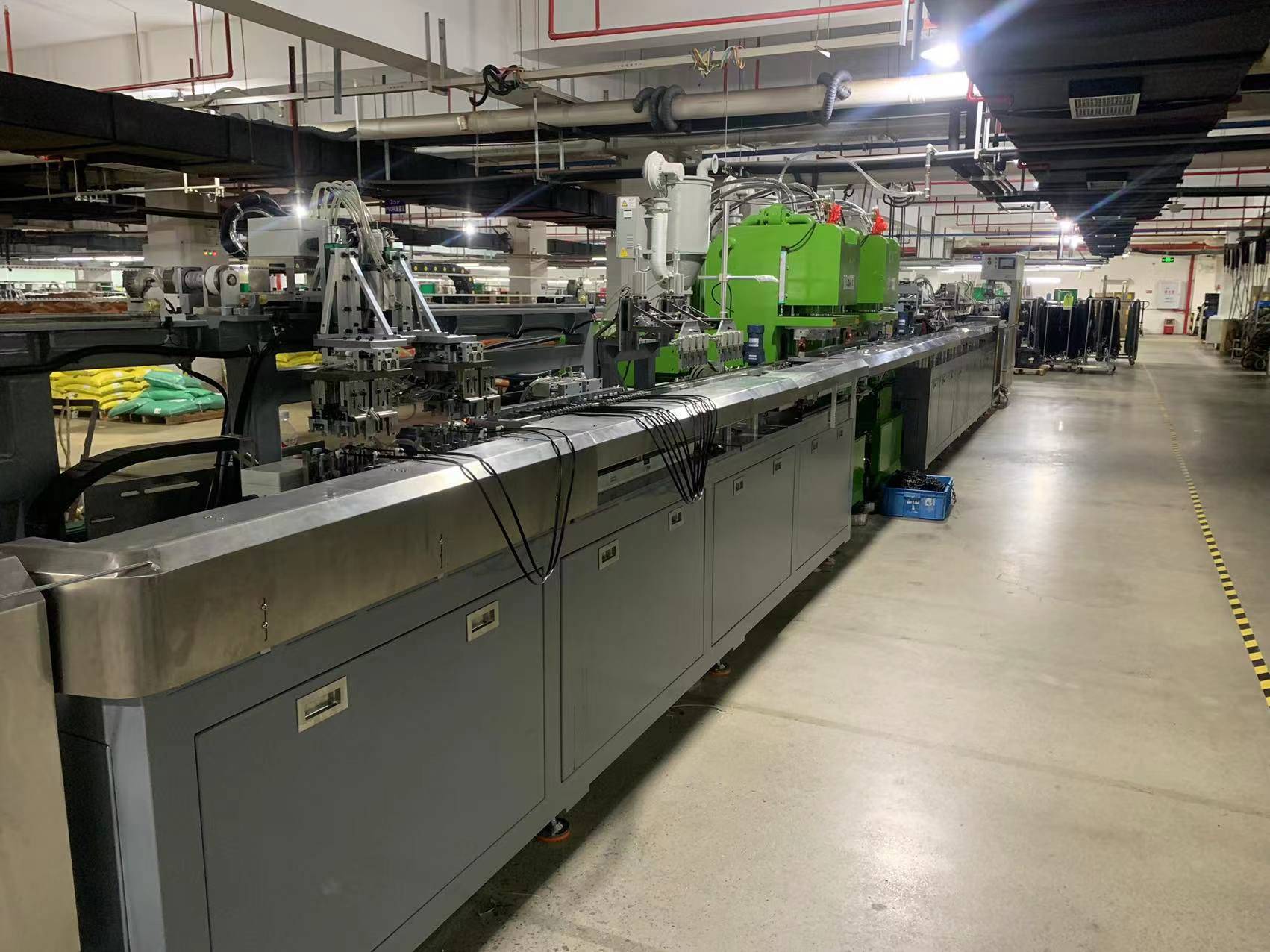

Full-automatic production line for processing the head and tail of power cables:

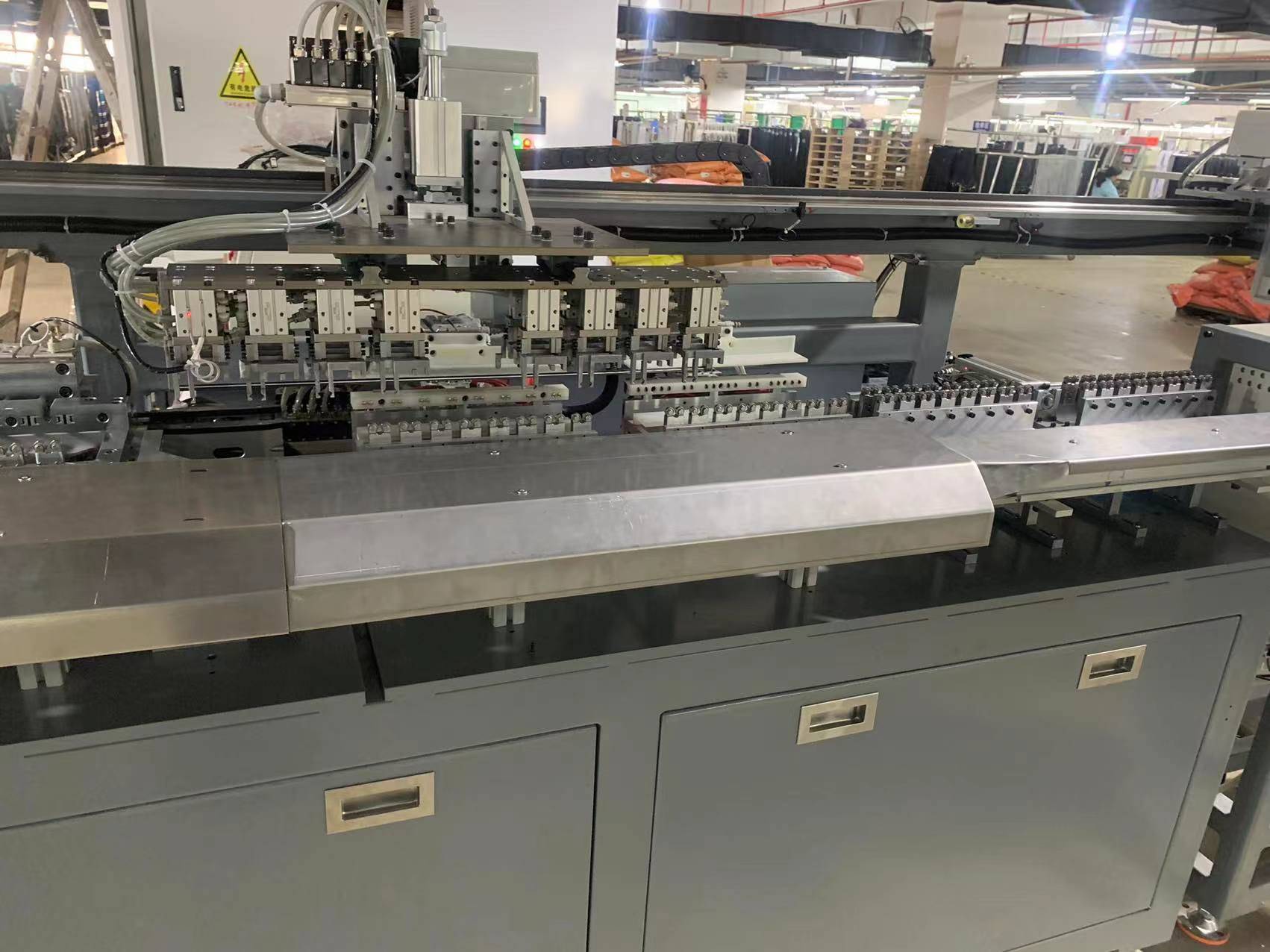

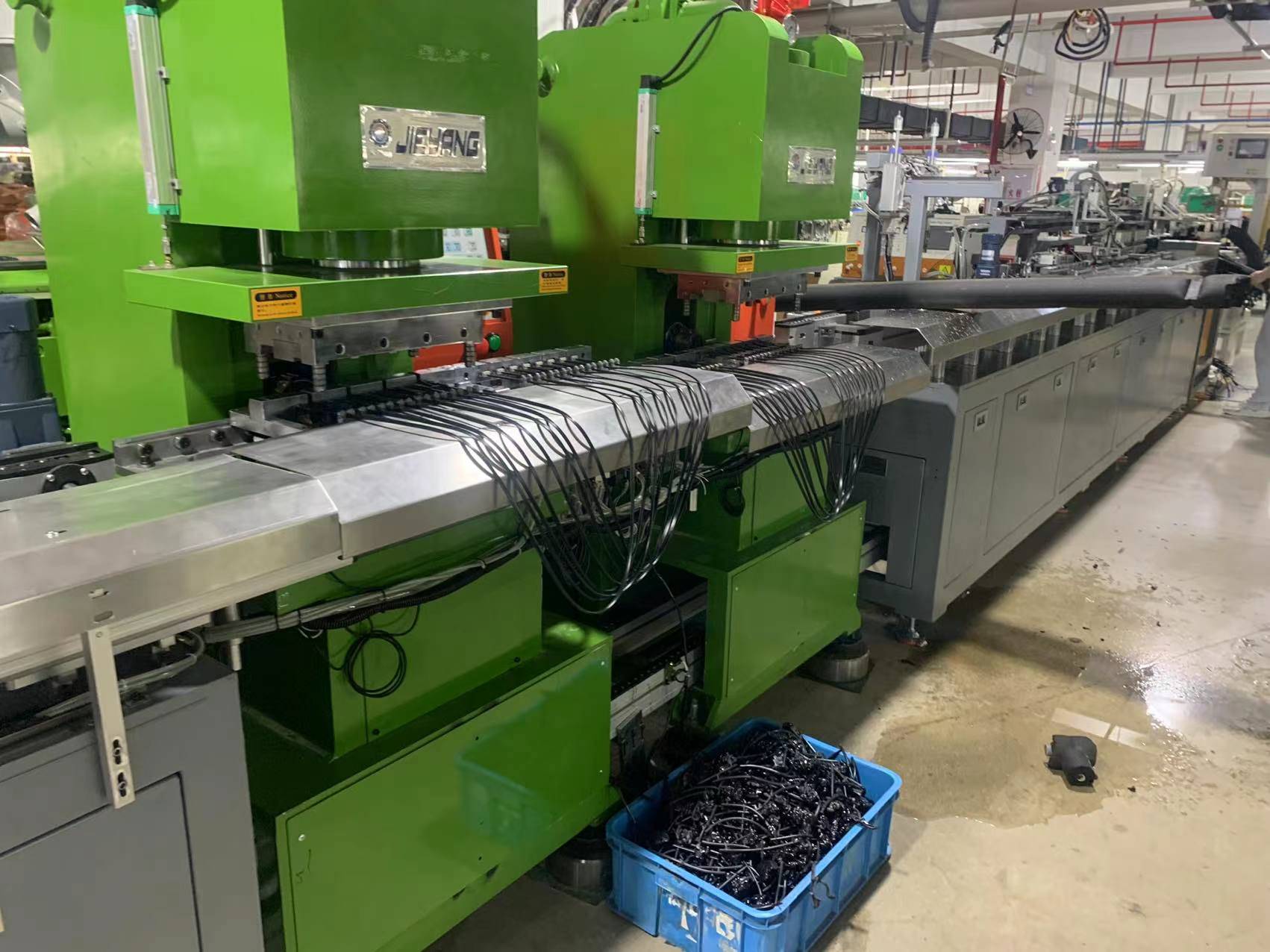

This production line is capable of automatically handling the entire process, ranging from fixed-length cutting of wire materials to the pre-injection molding stage. It also effectively conducts real-time monitoring of key processes and automatically screens out non-compliant products. Depending on diverse product process requirements, the functional modules on the production line can be flexibly combined. The head production line and the tail production line can operate independently to fulfill different customer demands. Moreover, it can be linked to the automatic injection molding production line through the transfer of the mechanical hand.

1. Remove the wire outer sheath of the specified length in accordance with the product requirements. The removed length is adjustable.
2. Utilize CCD color imaging in combination with the servo system to rotate the wire to the correct angle to match the appropriate crimping components or terminals for subsequent processing.
3. Divide the core wires at the head into a fixed shape based on the size of the crimped component for the subsequent processing step.
4. Firstly, evenly cut the head of the core wire to prevent the hollow core resulting from the retraction of copper wires, and then strip the core wire according to the set size. The adjustment of product size can be simply accomplished by modifying parameters.
5. Employ CCD color imaging to detect the polarity of the core wire, the effect of core wire stripping, and the size of core wire stripping.
6. Crimp the terminals. Automatic feeding is achieved through the vibration plate + direct vibration. The crimping force and forming height are adjusted through manual adjustment methods, equipped with two adjustment positions: fine adjustment and coarse adjustment. Optional pressure detection can be selected for crimping quality control. Detect whether there is wire float at the crimping part.

Intelligent control system design:
The humanized operation mode is compatible with similar products, with one-key switching and formula management.
Production big data analysis and design:
The production line has real-time production data statistical analysis, providing the relevant data required by the intelligent management system of the customer's factory, achieving digital management in aspects such as production, logistics, planning, and maintenance.
Power cords, connecting lines, and fully automatic production lines of national standards, American standards, European standards, etc.
Automatic production lines for wires and cables commonly used in the 3C industry.
Online monitoring
Basic online detection items, and the relevant data required by customers can be customized. Ensure that not a single faulty product flows to the next process, reducing material waste and eliminating potential quality hazards.
Production data statistics
Production data is the real basis for the operation of the factory. Relevant data is transmitted in real time to the required departments through the industrial control computer inside the production line, enabling relevant departments such as production, sales, engineering, logistics, and maintenance to arrange their own departmental plans based on the actual data.

This equipment has solutions to adapt to different heads and tails
In response to the problem when customers have the same head or tail but different tails or heads, the production line has been improved and optimized, enabling different heads and tails to be freely spliced, and individual heads and tails can also achieve independent production.
