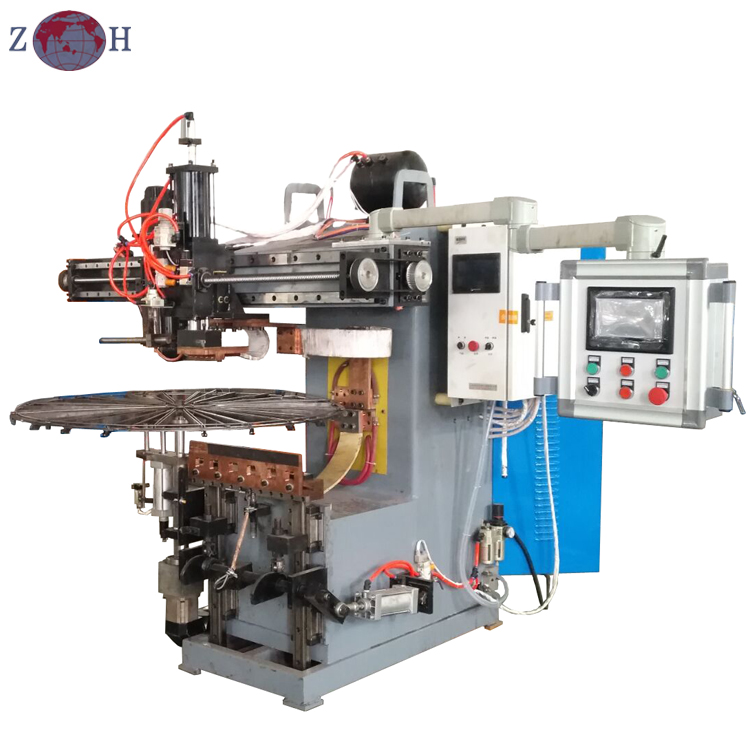

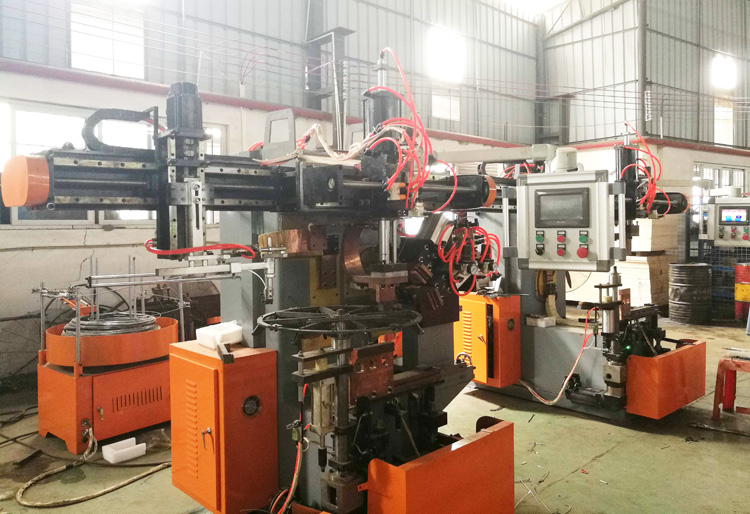

This is the main machine for producing industrial spiral wire fan guards.

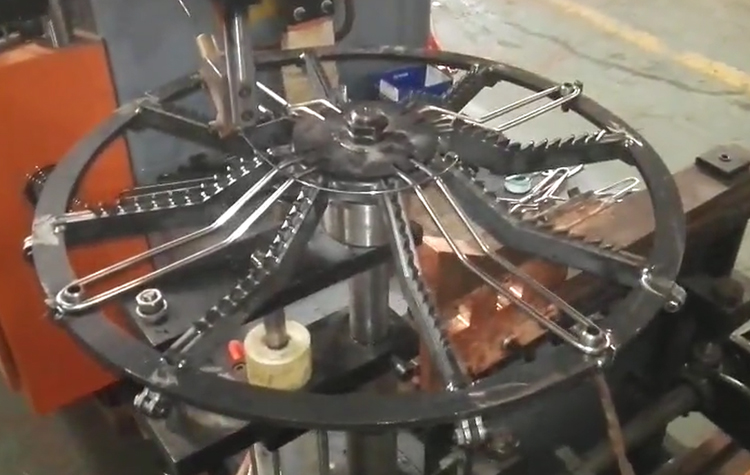

After manually putting guard framework onto the looping die (some frameworks are welded already, some are just in pieces), this machine can automatically loop spiral wire first, and then automatically weld spiral wires with frameworks.
The upper welding torch is servo drive, automatically move radially and weld one frame wire, then auto return back to origin for next frame wire welding.
The side welding torch(s) is pneumatic driven, controlled by PLC, also full automatic.
For different size industrial fan guards, you should change different looping die and change looping pitch settings on HMI (touch screen)
II Main technical data
Item
Data
Suitable industrial fan guard size
Max. 36”
Suitable industrial fan guard shape
Both flat & bowl shapes
Min. industrial fan guard size
12”
Suitable frame wire gauge
No-limited
Suitable spiral wire gauge
1.8-3.5mm
Welding transformer capacity
100kW x 2
Welding torch driving motor power
2.6kW (servo)
Rotation driving motor power
2.5kW (servo)
Looping driving motor power
1.0+1.1kW (servo)
Pay-off stand driving motor power
2.2kW (inverter control)
Pay-off stand capacity
Max. 220kg
Production speed
2-3 minutes per piece
Machine dimension
4m x 1.6m (workshop occupying)
Packing dimension (main machine)
1850 x 1750 x 2200mm
Packing dimension (pay-off)
1550 x 1020 x 1300mm
Total gross weight
About 3300kg
