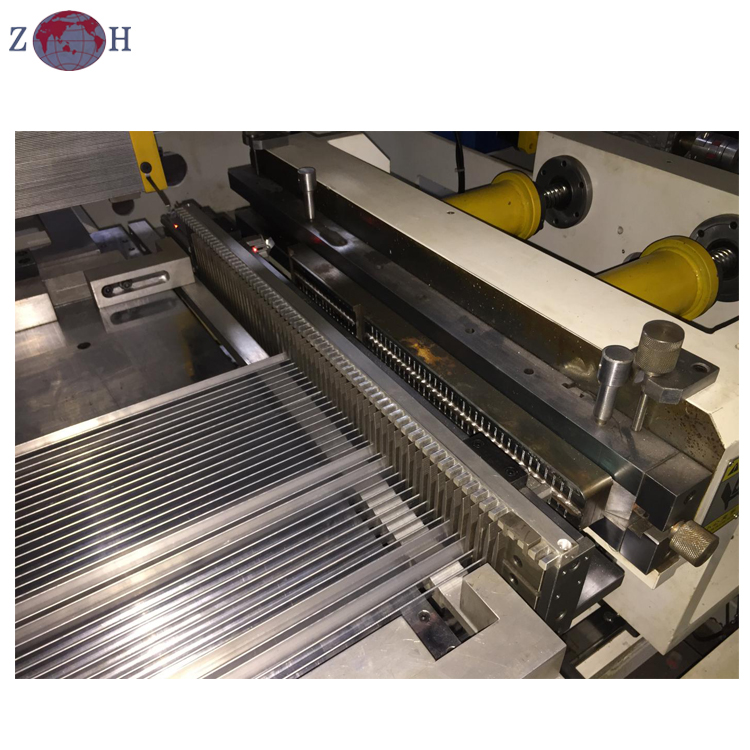

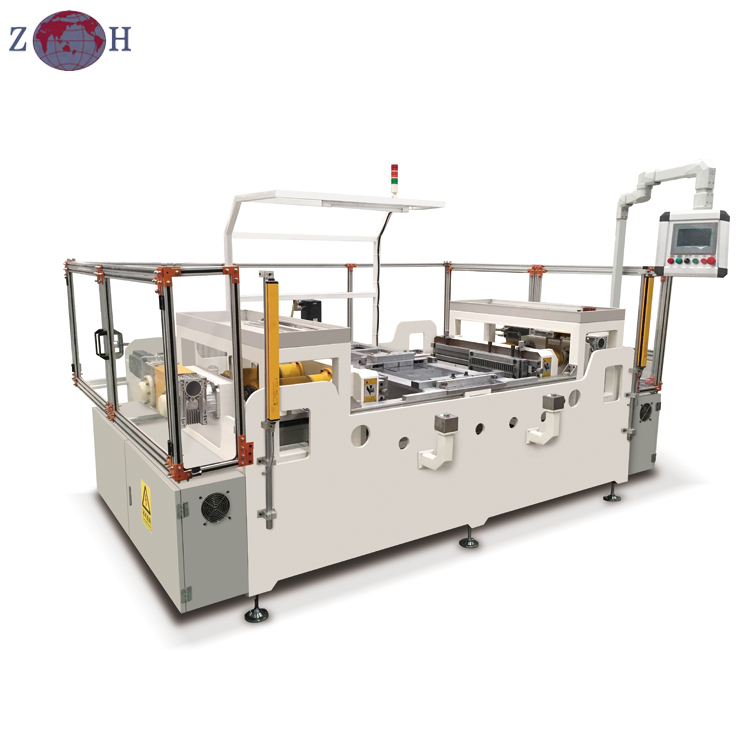

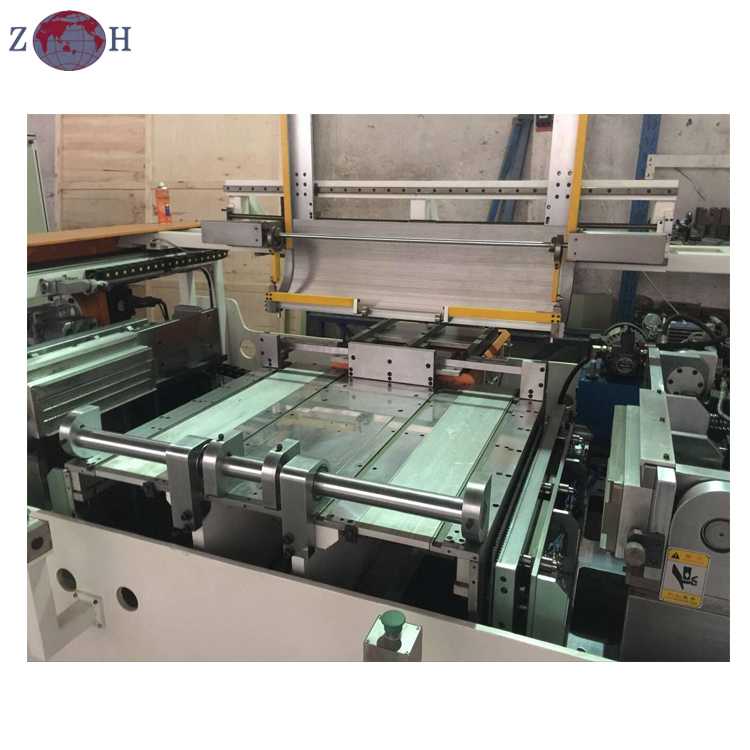

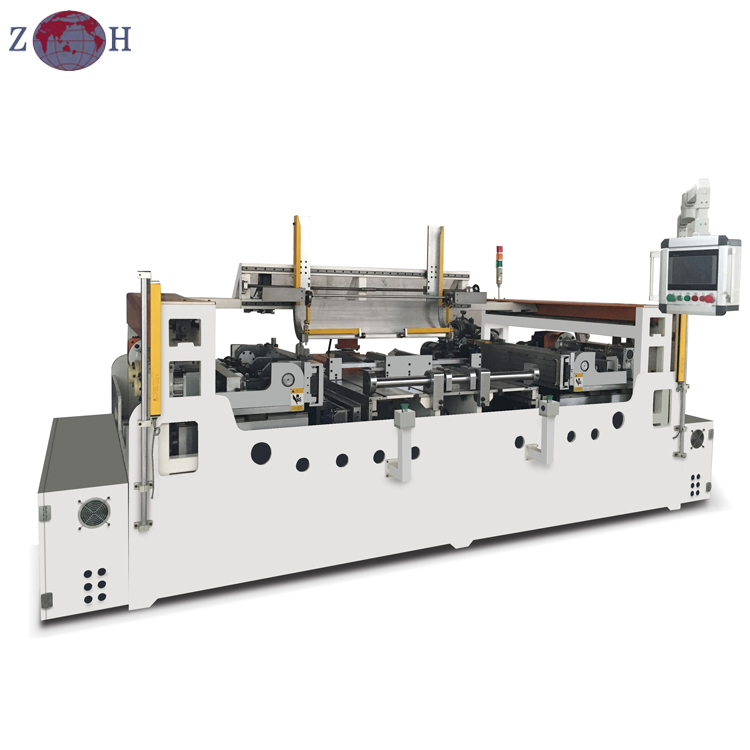

This machine is specially designed for assembling radiator core of automotive in double-row oval tubes structure.

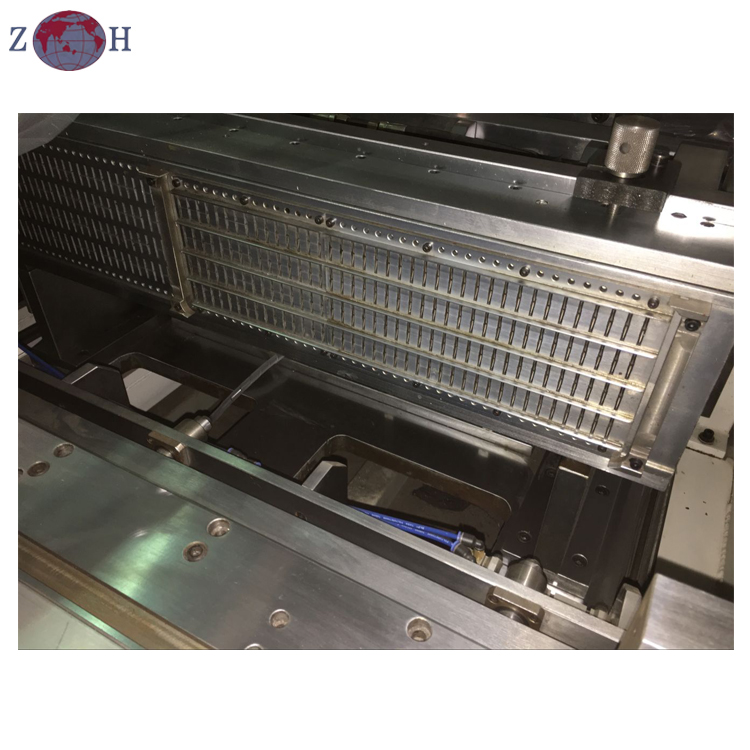

Oval tubes are automatically applied by servo driving dispenser.
The machine is capable for different size cores by changing different tools and adjusting pushing strokes.
II Main features:
- Universal chassis adapting to various size cores
- For different pitch only change pitch control tooling
- PLC control +HMI operation
- Safety measures are provided such as safety raster, alarming lamp and buzzer

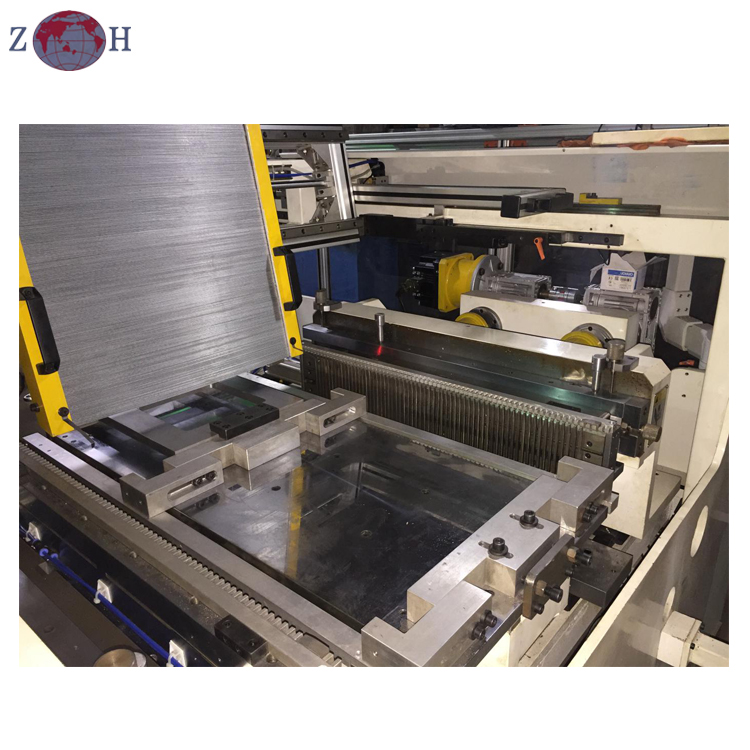

- Servo driven header plate assembling and core clamping
- Servo driven dispenser applying oval tubes twice automatically
III Main technical data
Item
Data
Distance between header plates
350-750mm
Distance between side plates
150-680mm
Thickness of built core
16~48mm
Core building precision
Core diagonal length error
± 1.0mm
Core height error
±1.0mm
Core width error
±1.5mm
Clearance between fin and header plate
Production speed (one cycle)
Less than 40s per core
(based on operator’s skill
Machine running cycle
Less than 30s
Main die changing speed
Less than 30 minutes
Air source
0.6~0.8MPa
Machine dimension
About 2100 x 1800 x 1750mm
IV Main configuration
- PLC & HMI: Mitsubishi from Japan
- Servo motors and drivers: Mitsubishi from Japan
- Ball screw and linear guide: TBI brand from Taiwan
- Intermediate relay: Omron from Japan
- Pneumatic components: AIRTAC from Taiwan
From the supplier
I Description
This machine is specially designed for assembling radiator core of automotive in double-row oval tubes structure.
Oval tubes are automatically applied by servo driving dispenser.
The machine is capable for different size cores by changing different tools and adjusting pushing strokes.
II Main features:
- Universal chassis adapting to various size cores
- For different pitch only change pitch control tooling
- PLC control +HMI operation
- Safety measures are provided such as safety raster, alarming lamp and buzzer
- Servo driven header plate assembling and core clamping
- Servo driven dispenser applying oval tubes twice automatically
III Main technical data
Item
Data
Distance between header plates
350-750mm
Distance between side plates
150-680mm
Thickness of built core
16~48mm
Core building precision
Core diagonal length error
± 1.0mm
Core height error
±1.0mm
Core width error
±1.5mm
Clearance between fin and header plate
Production speed (one cycle)
Less than 40s per core
(based on operator’s skill
Machine running cycle
Less than 30s
Main die changing speed
Less than 30 minutes
Air source
0.6~0.8MPa
Machine dimension
About 2100 x 1800 x 1750mm
IV Main configuration
- PLC & HMI: Mitsubishi from Japan
- Servo motors and drivers: Mitsubishi from Japan
- Ball screw and linear guide: TBI brand from Taiwan
- Intermediate relay: Omron from Japan
- Pneumatic components: AIRTAC from Taiwan
