Extruded fin tube machine
NANTONG ZHENHUAN TRADE CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier

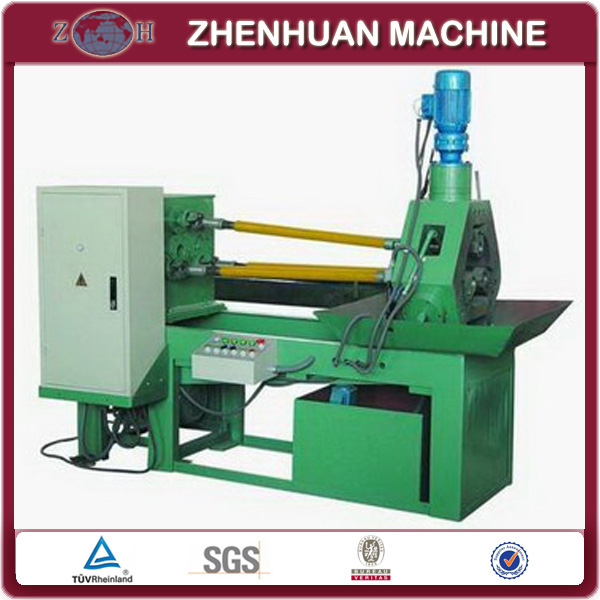

This machine is specially for producing extruded type spiral finned tubes in different diameter.
I Main features:
-Tool holder and tool holder body adopt advanced dual-circular-key structure, big torque withstanding, accurate and reliable displacement
- Tool holder adopts split type design, which is very convenient for blade debugging, cleaning & fixing
- Blade spindle bushing adopts special taper sliding bearings which brings max. bushing utilization.
- Universal joints and spindles are of spline linking; And coolant cooling tank is separate to main rolling machine.
- Special extruding blade design, high efficient, long blade life
II Specifications of finished finned tube
Item
Data
Base tube material
Aluminum, carbon steel, copper
Base tube diameter range
Φ7~11mm / (Φ12~32mm /Φ15~45mm)**
Fin material
Aluminum / copper
Fin material thickness
0.3~0.45mm
Fin height
7mm / 16mm / 16mm
Finished finned tube outer diameter
Φ25mm / (Φ64mm / Φ77mm)
Spiral pitch
1.8mm; 2.0mm; 2.1mm; 2.3mm; 2.5mm; 2.8mm; 3.0mm; 3.2mm~8.0mm
Max. length of finished finned tube
15m
** Note: When base tube diameter is less than 22mm, recommend fin height is better not more than 13mm.
III Main technical data of finned tube forming machine
Item
Data
Center line height of main spindle to worktable
345mm
Height of worktable
718mm
Output spindle rotating speed
80rpm; 100rpm; 120rpm
Fin rolling speed
0.6m/min; 0.75m/min; 0.9m/min
Main driving motor power
11kW
Coolant water pump motor power
0.12kW
Machine weight
About 1500kg
Overall dimension (packed)
About 2450 x 1000 x 1650mm
