From the supplier

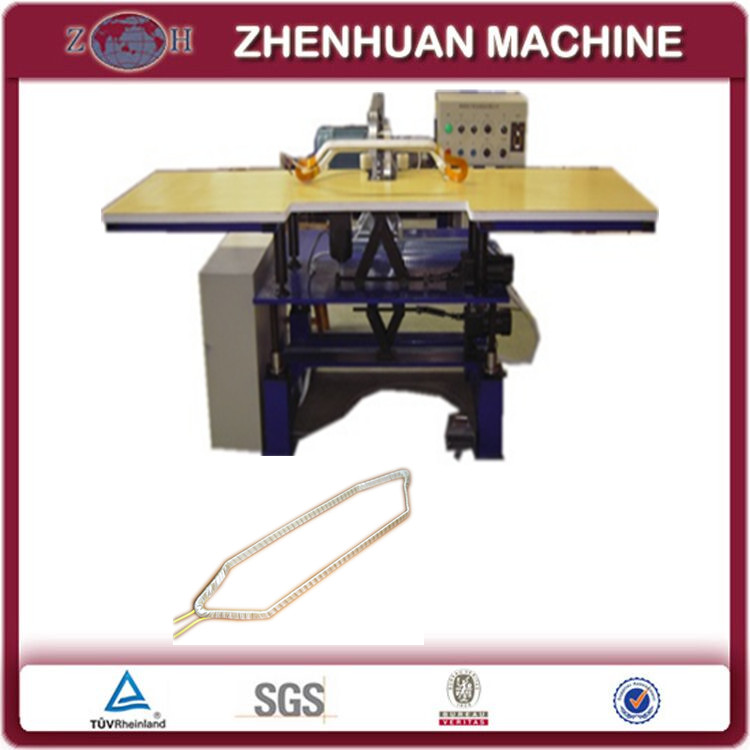

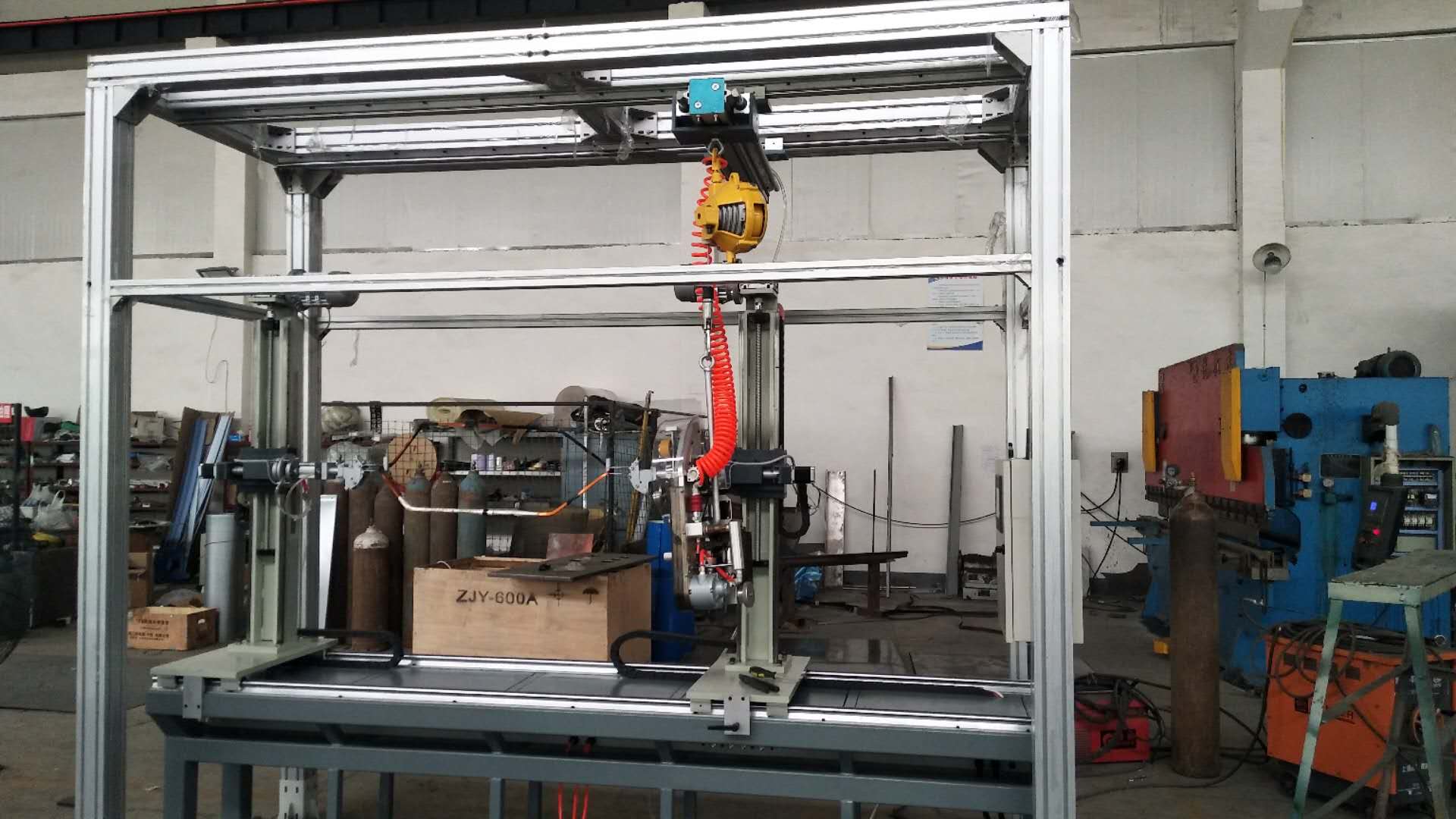

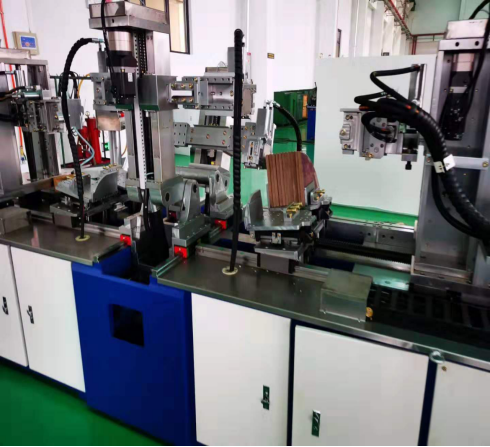

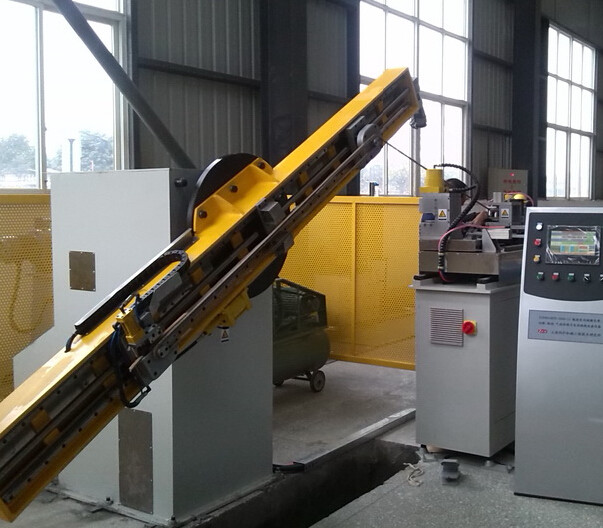

CNC coil spreading & forming machine-Servo
I Description of the machine
This machine is used for spreading bigger and middle size of coils, such as longer prismatic of big motors or bigger section of motors.
1- This control system has manual operation method
2- Hydraulic system adopts integrated block system, which is used for overturn, arm lock, walk and so on, and the data is adjusted by servo.
3- The working pressure and stroke can be adjusted
4- Easy operation, correct location, press fitting equilibrium
5- Easy inserting coil after finalized.
II Design and technical
2.1 Technical specification
Hydraulic clamping fixtures adjusting range:
Max. 15 x 45mm
Min. 5 x 15mm
Max. coil sectional area
20 x 50mm
Length of straight coil side
300mm-1500mm
Hypotenuse length of spread coil
150-400mm
Hypotenuse (noise) height
Max. 360mm
Opening angle of spreading arms
0° - 120°
Min. pitch (chord)
Min.180mm
Max. pitch (chord)
60°: 800mm
75°: 900mm
More than 75°: 1000mm
Max. length of loop coil before spreading
2500mm
Equipment working requirement
●Floor space: 4500 x 1800 x 1800mm
●Voltage: 380V, 50Hz
●Spreading speed: 8-30 seconds to 800mm
●Coil section: 7-30mm x 12-50mm (W x H), minimum: 7 x 12mm. Maximum 20 x 50mm. The radian of jaw is R20
●The coil nose diameter : φ20
●Coil nose tilt: 0~20 degree
●Spreading precision: angel±0.5 degree
●Spreading cycle: 1-2 minutes
Section height
10-70mm
Section width
4-30mm
The noise diameter of loop coil before spreading
R2: 20mm, 30mm
Loop length L2
300-1500mm
Straight length L3
600-2500mm
Total angle
0-150 degree
The end of length L5
75-500mm
The pitch of finished coil
80-1000mm
The height of finished coil end
80-350mm
Noise diameter
16mm, 20mm
Spreading clamp turning radian
20mm, 30mm
Positional accuracy
±0.5mm
Angle accuracy
±0.2°
PLC
Mitsubishi
Cylinder
AirTAC
Main electrical element
Schneider
