From the supplier

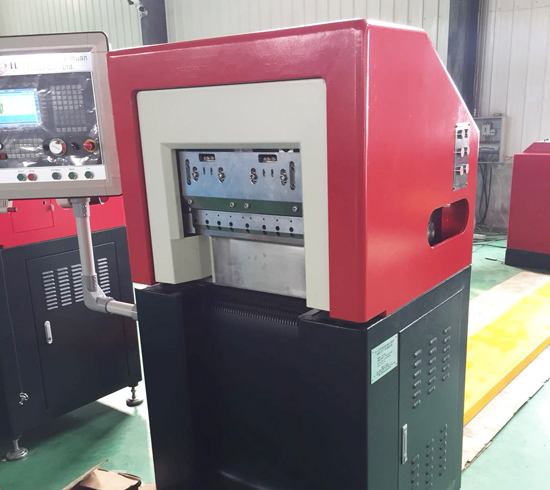

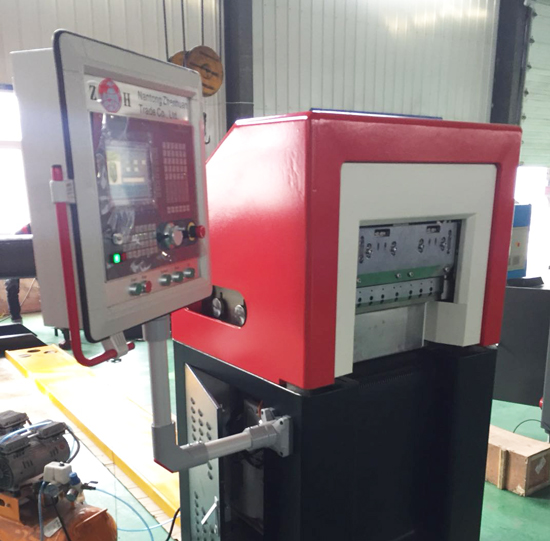

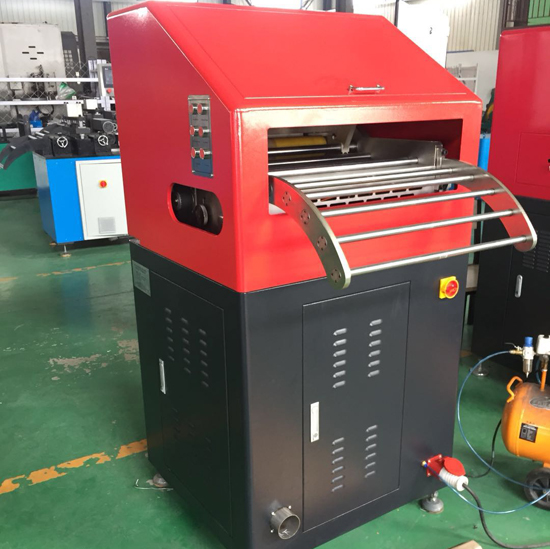

I Description of the machine
This machine is developed by ourselves, with completely same functions as Unicore machine from Australia.
Our machine is comprised of cantilever hydraulic expansion decoiler, supporting plate and the main cutting machine.
This machine is full automatic CNC control, adopting Rexroth CNC control system original from Germany.
II Main features
- Full automatic CNC control, programs can be saved and recalled
- Suitable for both single strip or double strips cutting & bending
- Decoiler is motorized decoiling, PLC control and remote control
III Main technical data
No.
Item
Data
1
Max. single silicon steel strip width
410mm
2
Max. Double silicon steel strip width
190mm
3
Bending speed
300ms per bend
4
Cutting speed
300ms per cut
5
Production speed (@perimeter 2m)
6 seconds
6
Productivity (@ 8 hours per shift)
1500kg
7
Length precision
0~0.1mm @length
0.1~0.2mm @length >1m
8
Gap core increment
0.1mm
9
Servo motor power
3kW x 3
10
Decoiler driving motor power
3kW, inverter control
11
Hydraulic pump motor power (hydraulic station)
2.2kW
12
Decoiler capacity
Max. 1000kg
13
Total machine weight
About 2500kg
14
Main machine dimension
About 1000 x 1000 x 1800mm
15
Decoiler dimension
About 1500 x 1000 x 1400mm
16
Air source
0.8MPa
III Main configuration
- CNC control system: Rexroth from Germany
- PLC & inverter (for decoiler): Delta from Taiwan
- Hydraulic valves & pump (for decoiler): Rexroth from Germany
- AC motors (for decoiler & hydraulic pump): Siemens from China
- Servo motors & drivers: Rexroth from Germany
- Pneumatic components: SMC from Japan
- Main bearings: SKF from Sweden and NSK from Japan
- Ball screw and linear guide: Misumi and NSK from Japan
- Electric components: Schneider from China
