From the supplier

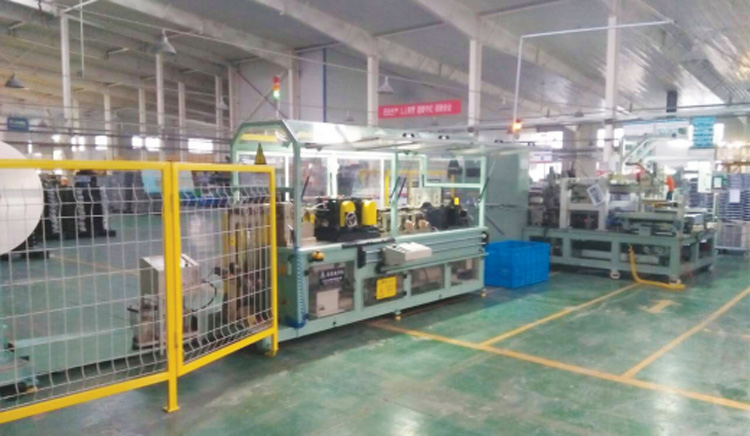

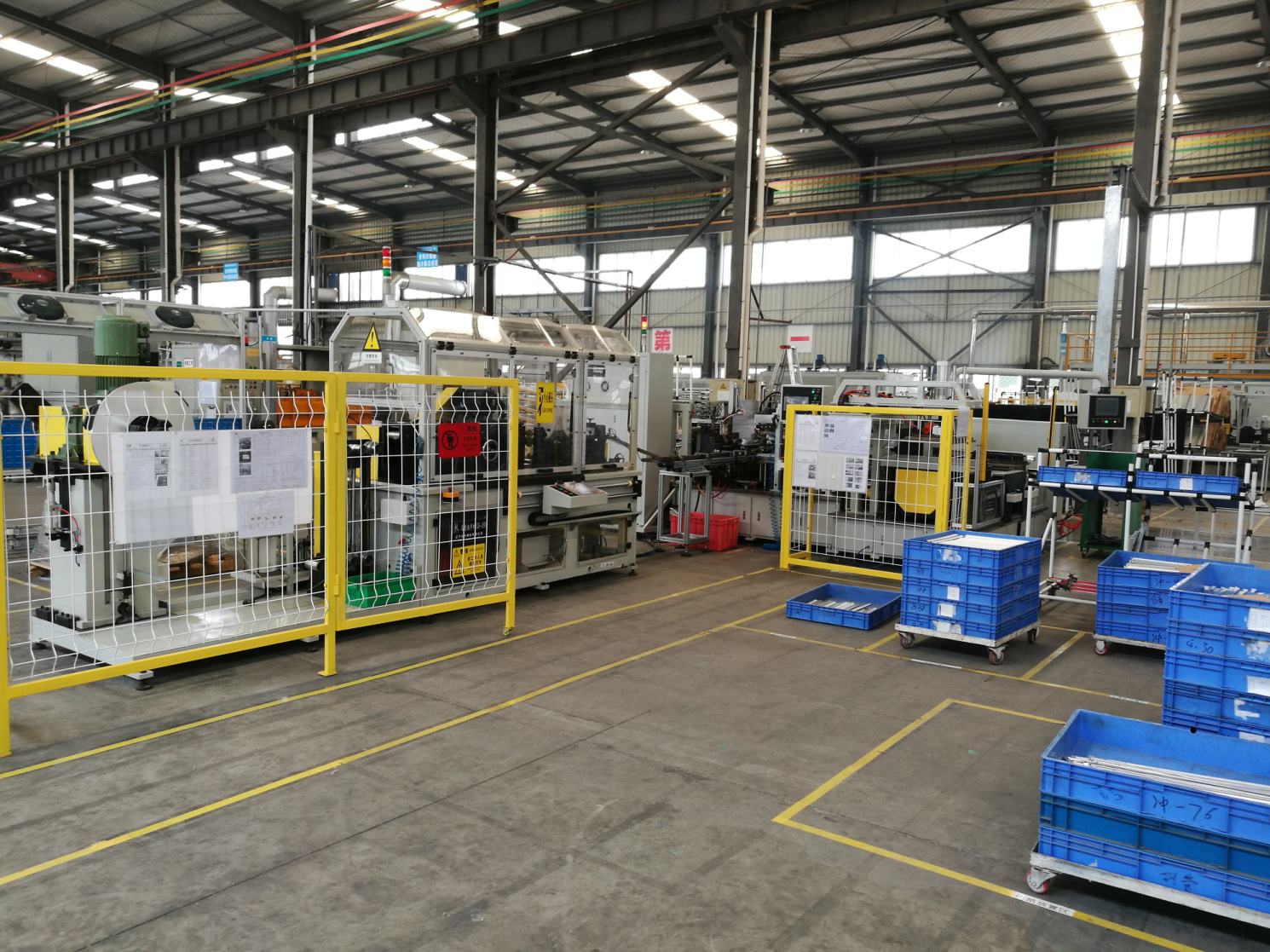

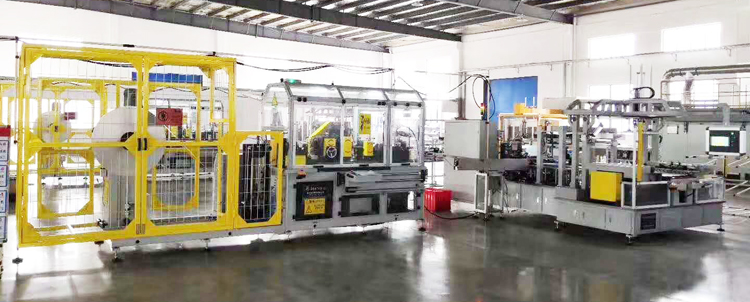

This production line is specially designed for producing aluminum radiator and condenser cores for cars.
It is comprised of high speed fin rolling machine, flat tube auto loading device, fin & tube auto collocating device, auto core assembling machine. Only one operator is needed.
Size changing is possible, but a little bit difficult. So this line is mainly suitable for radiator / condenser OEM manufacturers.
Main Buildup
1) Full automatic medium-speed fin rolling machine (180m/min)
2) Fractional-spray precious lubricating system (one upper and one lower spraying guns)
3) Automatic flat tube loading device
4) Full automatic fin & tube collocating device
5) Automatic core assembling machine
6) Automatic core wire tying machine (optional)
Main technical data of DS-180-2 fin rolling machine
1) Machine features:
- Complete functions: aluminum foil decoiling, tensioning & feeding, micro-spraying lubricant, fin rolling, wave fixing, counting, cutting, material detecting, tool jam detecting, cut-off failure detecting, rolling shaft over-load stopping, error alarming, etc.
- PLC + HMI, Delta from Taiwan
- Full servo drive: servo decoiling, servo tension adjusting, servo rolling, servo counting and servo cutting
- Double-head decoiler, servo drive, with transparent protection door, interlocked
- Linear speed adjusting device, adjusting speed according to foil reel OD varying
- Servo drive tensioning device, keeping constant tension of foil, tension online adjustable
2) Technical parameters
Item
Data
Blank material
Aluminum alloy foil
AA4343/AA3003/AA4343 or single foil
Foil thickness
0.04~0.30mm
Foil width
Max. 100mm
Foil reel ID
Φ200~300mm
Foil reel OD
Max. Φ1800mm
Foil reel weight
Max. 500kg
Decoiling speed
Max. 180m/min
Finished fin
Fin height
Based on rolling tool
Height tolerance
+0.03mm, - 0.01mm
Fin height levelness
Less than 0.05mm
Fin width
8~100mm
Fin pitch
2.3~5.0mm (PLC control, adjustable)
Fin pitch tolerance
+/-0.10mm
Machine capability
Foil feeding speed
0-180m/min
Fin rolling speed
Max. 10000 corrugations per minute
Fin cutting speed
Max. 80 times per minute
Cutting tolerance
+/- 0 corrugation (on top of corrugation)
Tooling
material
Forged high speed steel (Co)
Life
≥0.2 billion corrugations for compound foil
≥0.25 billion corrugations for pure aluminum foil
Total motor power
13.5kW
Compressed air source
0.6MPa, 0.8m3/min
Machine dimension
About 4200 x 1200 x 1800mm
Machine weight
About 4500kg
V Main technical data of DS-800 fractional spray lubricating system
1) Main features:
- Comparing to traditional interval type atomization spray, this new type will reduce 60% lubricant consumption.
- Providing even oil coating on both surfaces, 100% coating rate, elongating tool life
- Exact coating, no residual on fins, no volatilized oil mist in workshop, good environmental protection
- Adopting finest oil filtering system, filter precision 0.002mm, avoiding nozzle from jamming.
- Auto low-oil-level alarming and filter core jam alarming, HMI displays alarming error.
2) Main technical parameters
No.
Item
Data
1
Electric consumption
0.3kW
2
Pneumatic air source
0.4MPa, 0.5m3/min
3
Spraying gun
Two
4
Spraying width
Less than 40mm
5
Lubricant oil consumption
About 0.5L per hour

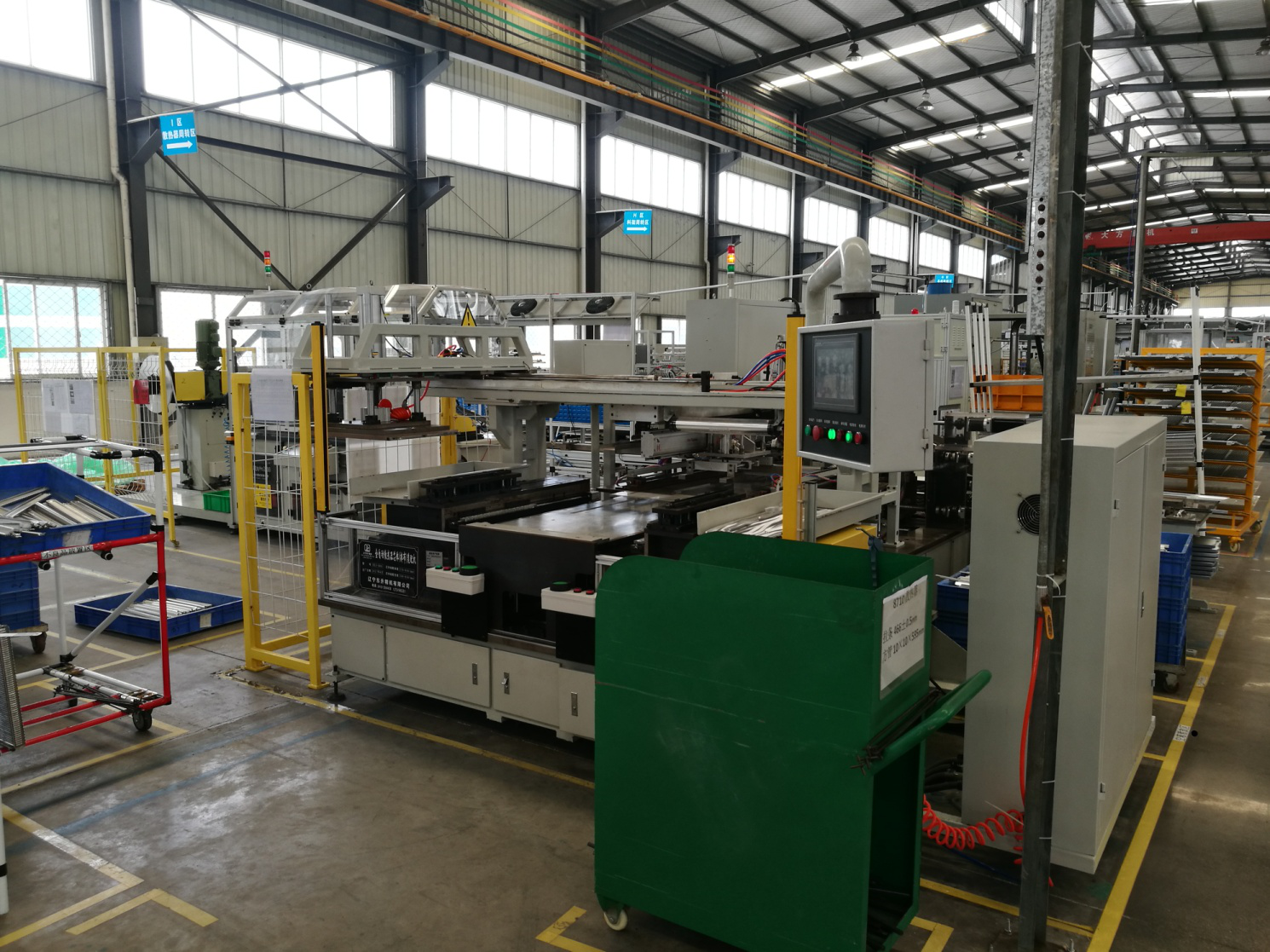

Main technical data of full automatic core assembling machine
1)Main features
- High automation machine combining fin & tube collocating and core assembling together
- Manually put flat tubes to tray and auto load to flat tube hopper
- Linked with fin rolling machine, auto collocating fin and flat tube
- Auto pushing collocated fin and tube to core building station
- Auto assembling side plates, ordering cores and assembling header pipes
- Big variety for various PF condenser cores
2) Main technical data
Item
Data
Suitable flat tube length (core width)
400-900mm
Suitable header plate/pipe length (core height)
300-600mm
Flat tube numbers
30-90
Suitable flat tube width
12, 16, 18, 20mm
Suitable flat tube thickness
customized
Flat tube auto loading system
Tube tray capacity
160 pcs /tray
capacity of tray elevator
30 trays
Speed of spiral screw collocating device
≤1 second (one tube + one fin)
Suitable fin width
Same as width of flat tube
Distance between fin and header plate
10mm
Core building precision
Length & height
± 1mm
Diagonal length
±1.5mm
Production speed
More than 60 cores /hour
Core size changing speed
Less than 30 minutes
Total motor power
20kW
Air source
0.6~0.8MPa
Machine dimension (L x W x H)
3600 x 1500 x 1200mm
