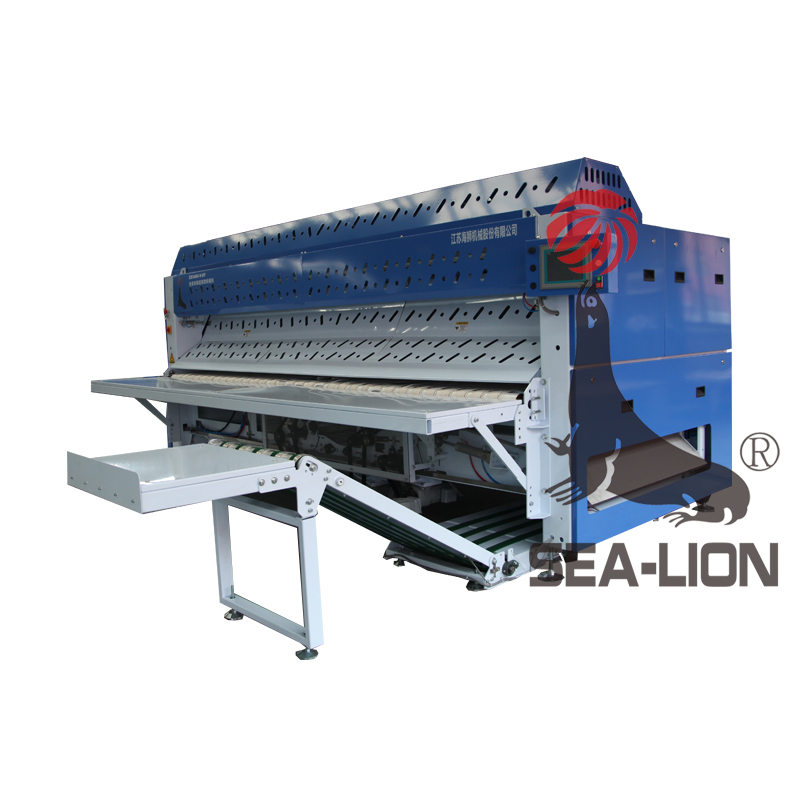

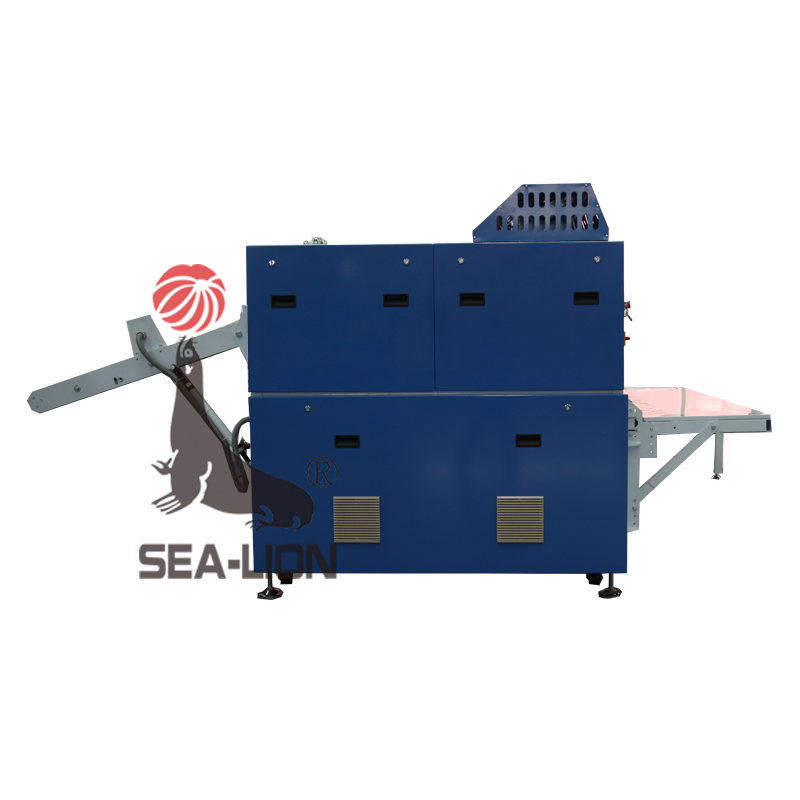

Automatic folder is applied on folding big ironed or dried linen, such as sheets, quilt covers as well as table cloth.  Low noise, low energy consumption, good performance, beautiful appearance and reasonable design are the features of the folder.

〇Big screen and intelligent control system adopted , the machine has dialogic function.

〇Folding programs can be selected according to different type of linen. 2-5 folds can be performed under the control of computer.

〇DC24V on monitor block can ensure safety and easy maintainance .

〇Thanks to pneumatic valves, It runs fast and reliably and free of pollution to surroundings.

〇The output of controller is done via relay and no need of  intermediate relay, which is easy for service and reduces chance of fault.

〇Adjustable speed can adapt corresponding ironing machine, and it can work together with ironing machine via communication control, and folding speed is adjustable according to ironing speed.

〇Positive-reverse control is adopted for folding 4th and 5th fold, with the advantages of no affect from the material and thickness of the linen, better folding results and higher folding success rate.

〇The size of linen for each fold is measured with sensor to ensure the folding line is exactly at the middle.

Description

ZD3400-V-DF

Maximum size

(length × width )

mm

4000×3300

Folding speed

(normal bed sheet)

m/min

60

Operating compressed air pressure

Mpa

0.6-0.8

Compressed air consumption

L/min

About 60

Power supply

kW

4

Electric consumption

kW/h

0.8

Required air compressor capacity

m³/min

0.3

Externally connected power supply cable size

(to be provided by user)

mm²

4

Dimension (L/W/H)

mm

4100/4650/1850

Weight

kg

2800
