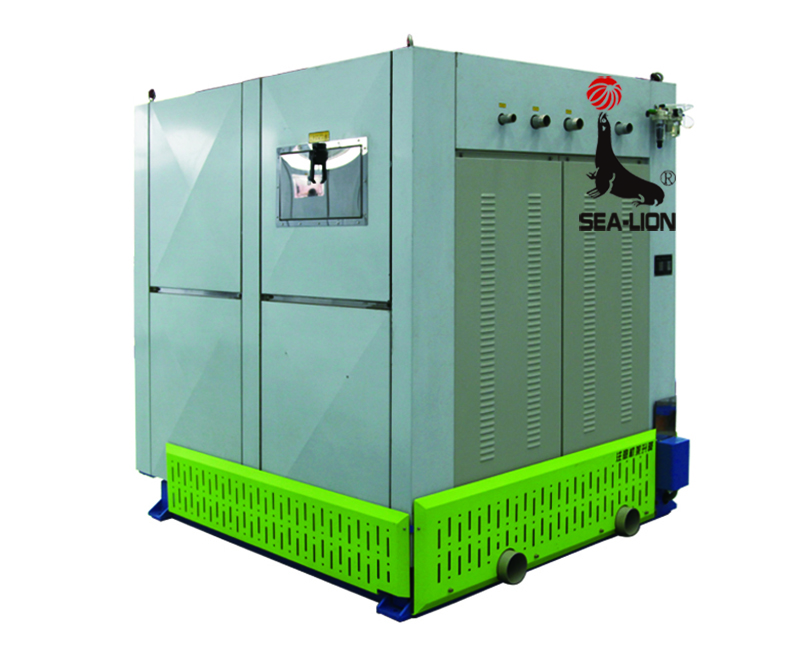

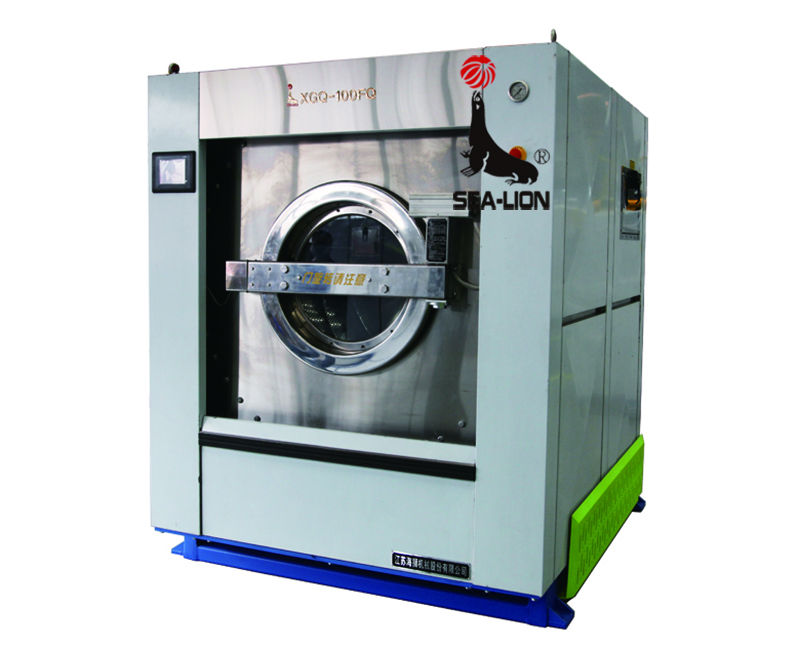

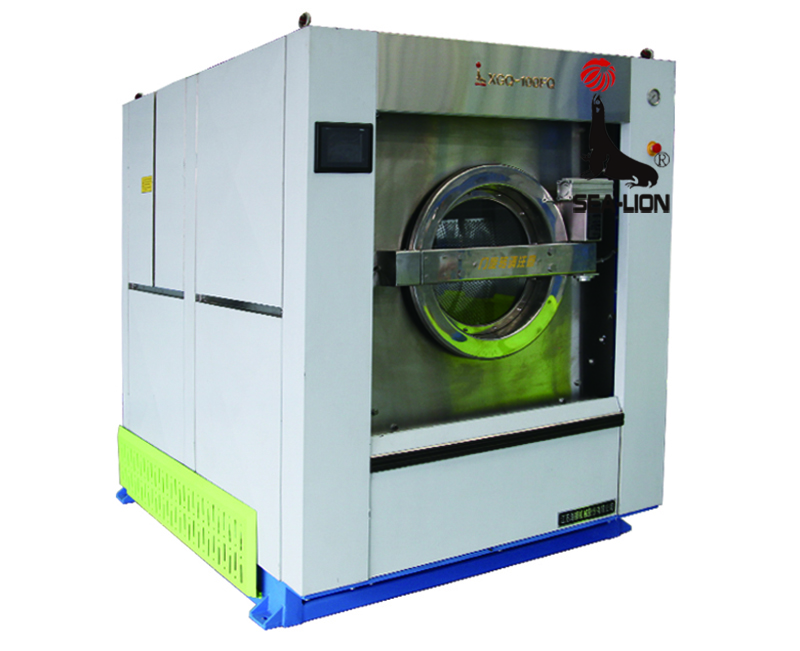

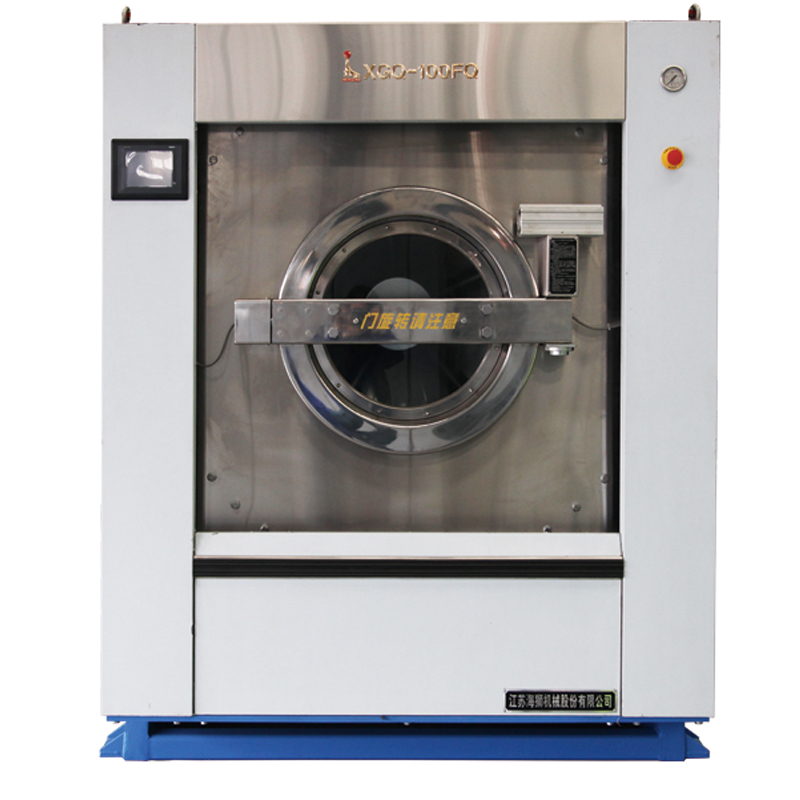

100 KG Forward Tilting Washer Extractor
JIANGSU SEA-LION MACHINERY CO., LTD.
See what’s includedHide breakdown
- FOB goods (100)
- $1,928,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $67,480
- Section 301 tariff (25.0%)
- $482,000
- Customs fees (MPF/HMF)
- $3,045
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,928,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $67,480
- Section 301 tariff (25.0%)
- $482,000
- Customs fees (MPF/HMF)
- $3,045
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
100 KG Forward Tilting Washer Extractor
JIANGSU SEA-LION MACHINERY CO., LTD.See what’s includedHide breakdown
- FOB goods (100)
- $1,928,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $67,480
- Section 301 tariff (25.0%)
- $482,000
- Customs fees (MPF/HMF)
- $3,045
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,928,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $67,480
- Section 301 tariff (25.0%)
- $482,000
- Customs fees (MPF/HMF)
- $3,045
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: stainless steel
- Size: 2020*1690*2050
- Color: metal colour
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Jiangsu, China
About this product
- Materials: stainless steel
- Size: 2020*1690*2050
- Color: metal colour
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Jiangsu, China
Product details
| Materials | stainless steel |
|---|---|
| Size | 2020*1690*2050 |
| Color | metal colour |
Product details
| Materials | stainless steel |
|---|---|
| Size | 2020*1690*2050 |
| Color | metal colour |
From the supplier
〇Big touchscreen with multi-language adopted, the whole course of pre-washing, sterilizing, rinsing, bleaching and extracting can be performed automatically.
〇It has a through drum without barrier. Easy for operator to load and unload.
〇Opening, closing, tilting and unloading are performed automatically.
〇All control valves are pneumatically controlled so that the action is quick and stable.
〇Double-pipe rear drainage structure, free of pollution to the environment.
〇The machine is of high rust resistance and long service life as a result of the top quality of stainless steel.
〇Equipped with inverter, the machine has the advantages of energy saving and stable running. For high extraction, there are four speeds available according to different materials.
Description
XGQ-100FQ
Rated capacity (dry load)
kg
100
Inner drum×length
mm
∮1240×882
Outer drum×length
mm
∮1324×953
Washing/balancing speed
rpm
30/60
Middle extracting speed
rpm
350
High (1-4) extracting speed
rpm
680
Motor Power
kW
7.5
Tilting angle of unloading
18°
Steam pipeφ
DN
25
Cold/hot water pipeφ
DN
2×40
Water drain pipe
mm
∮114
Connecting pipe of compressed air
mm
∮8
Steam pressure
MPa
0.4-0.6
Water pressure
MPa
0.2-0.4
Compressed air pressure
MPa
0.4-0.6
Water consumption per cycle
kg
1435
Power consumption per cycle
kW
2.4
Steam consumption per cycle
kg
60
Flow of air compressor
m³/min
0.1
Dimension(L/W/H)
mm
2020/1690/2050
Weight
kg
3540
From the supplier
〇Big touchscreen with multi-language adopted, the whole course of pre-washing, sterilizing, rinsing, bleaching and extracting can be performed automatically.
〇It has a through drum without barrier. Easy for operator to load and unload.
〇Opening, closing, tilting and unloading are performed automatically.
〇All control valves are pneumatically controlled so that the action is quick and stable.
〇Double-pipe rear drainage structure, free of pollution to the environment.
〇The machine is of high rust resistance and long service life as a result of the top quality of stainless steel.
〇Equipped with inverter, the machine has the advantages of energy saving and stable running. For high extraction, there are four speeds available according to different materials.
Description
XGQ-100FQ
Rated capacity (dry load)
kg
100
Inner drum×length
mm
∮1240×882
Outer drum×length
mm
∮1324×953
Washing/balancing speed
rpm
30/60
Middle extracting speed
rpm
350
High (1-4) extracting speed
rpm
680
Motor Power
kW
7.5
Tilting angle of unloading
18°
Steam pipeφ
DN
25
Cold/hot water pipeφ
DN
2×40
Water drain pipe
mm
∮114
Connecting pipe of compressed air
mm
∮8
Steam pressure
MPa
0.4-0.6
Water pressure
MPa
0.2-0.4
Compressed air pressure
MPa
0.4-0.6
Water consumption per cycle
kg
1435
Power consumption per cycle
kW
2.4
Steam consumption per cycle
kg
60
Flow of air compressor
m³/min
0.1
Dimension(L/W/H)
mm
2020/1690/2050
Weight
kg
3540
