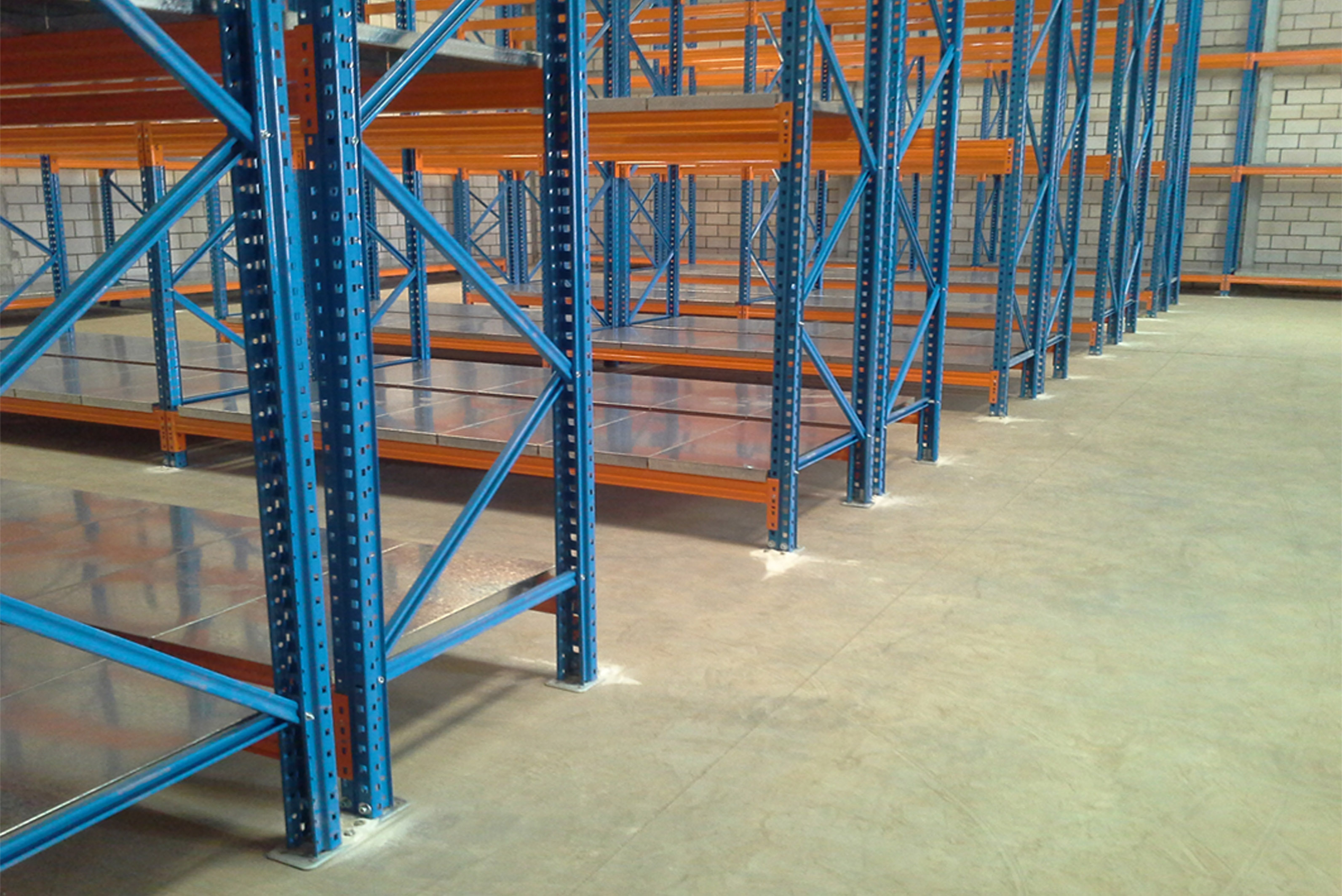

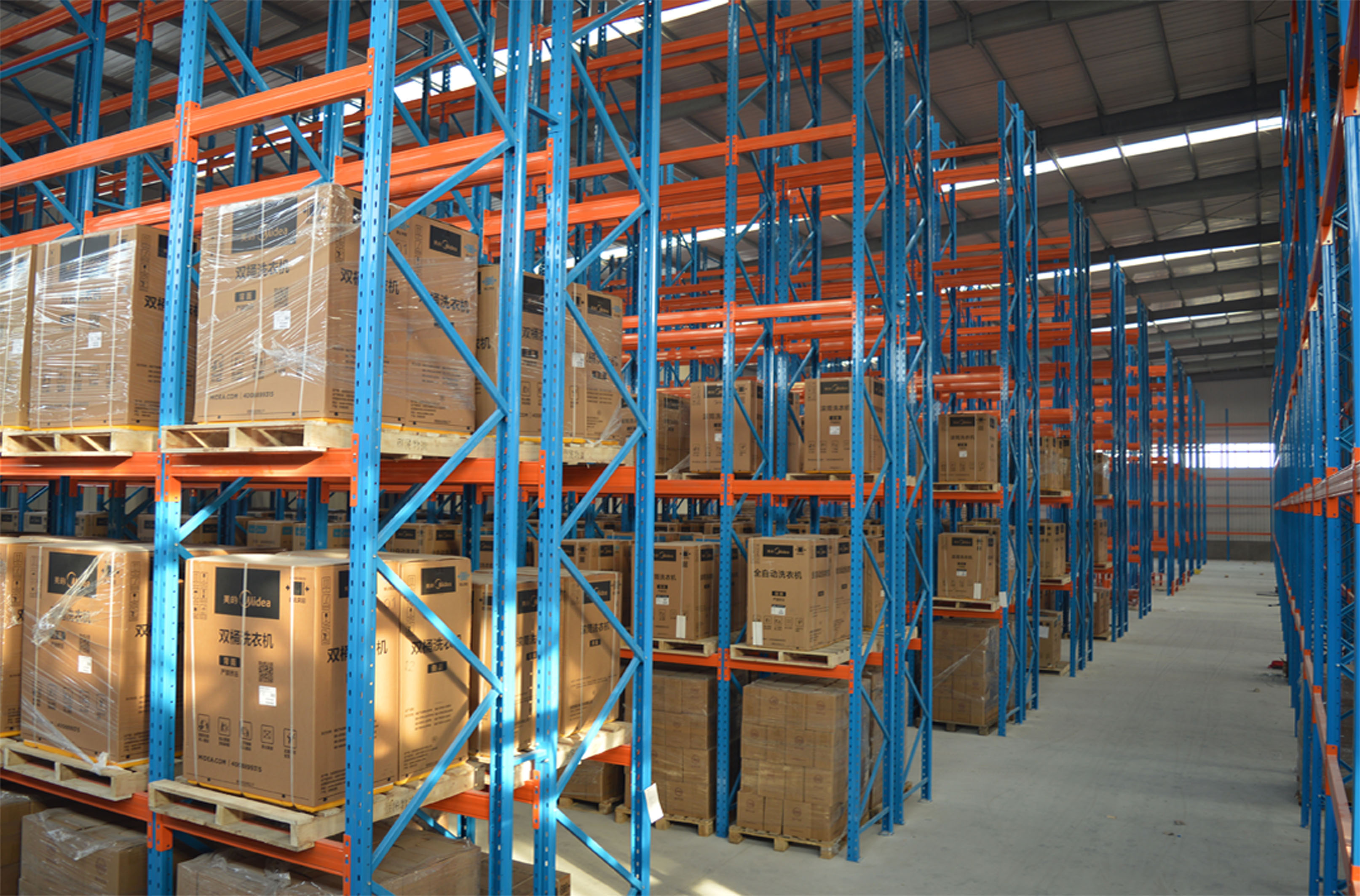

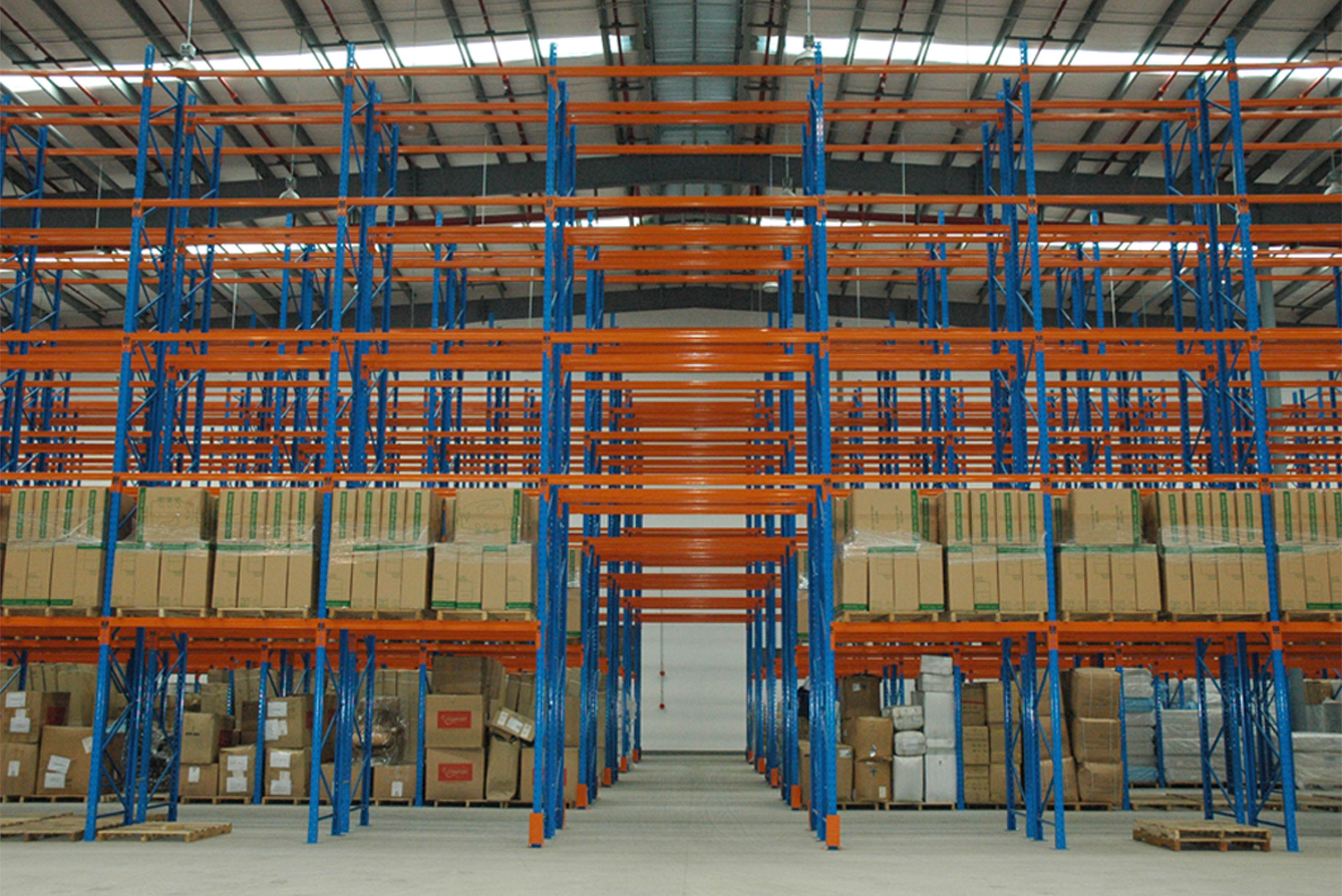

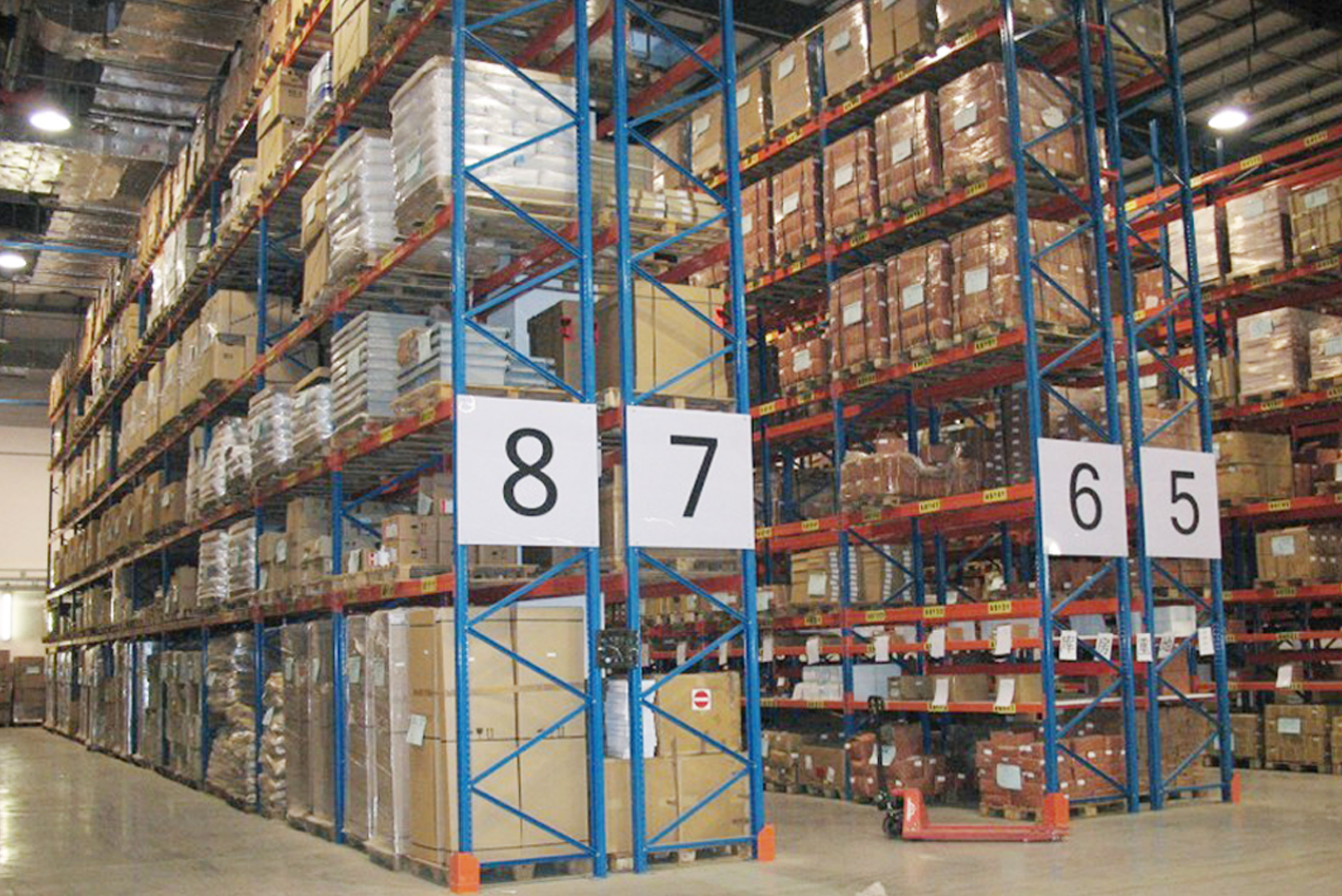

The crossbeam rack is a modular storage rack composed of columns, crossbeams, transverse slant support and pallet supports. The core of the rack is to carry pallet goods through the crossbeams. The main function is "direct access". Forklifts can directly access goods at any location from the front of the rack. It is the most common heavy-duty storage solution in industrial, logistics, e-commerce and other scenarios.
Its core advantages are concentrated in three points: first, flexible and efficient access, no access sequence restrictions, independent operation of a single storage location, suitable for storing multiple categories and small batches of goods, forklift operation does not require complex processes, and the turnover efficiency of goods is more than 30% higher than that of through type shelves; Secondly, it has strong load-bearing and adaptability, and can be divided into three types according to load-bearing capacity: light (less than 500kg per layer), medium (500-1500kg), and heavy (greater than 1500kg). The height of the crossbeam can be adjusted at a step distance of 50-75mm, which can adapt to different sizes of pallets (such as 1200 × 1000mm, 1200 × 800mm) and cargo height requirements; Thirdly, it is cost and maintenance friendly, with a simple and modular assembly structure that does not require complex tools for installation. When a single set of shelves is damaged, the columns or beams can be replaced separately without the need for overall scrapping. The long-term maintenance cost is more than 60% lower than that of automated shelves.
The mainstream application scenarios cover multiple fields: manufacturing for raw material and semi-finished product storage, logistics warehouses for pallet goods transfer, e-commerce warehouses for SKU rich product storage; If you need to adapt to special environments, you can also choose hot-dip galvanized (outdoor, cold storage anti-corrosion) or stainless steel (food, pharmaceutical clean scenes). When in use, accessories such as column foot guards and safety pins should be used to enhance impact resistance and stability.
