1.System Introduction

Laser cladding equipment can be used for laser cladding processing on the surface of shafts, disks and other parts to increase the hardness or corrosion resistance of the surface. Laser processing has metallurgical bonding, small deformation, low interface dilution material, dense structure, fine grains, and high surface compressive stress fatigue life.

2.Features ●6000w laser source, high quality and stability, continuous operation in 48 hours; ●The quality of laser working lens, high uniformity of spot, good thermal stability, long focal length of lens, small lens pollution, long service life and low damage rate; ● Independent research and development of semiconductor laser control system with high integration, easy operation, space saving and convenient maintenance; ● Six-axis robot control robot slide rail and spindle realize 6+2 axis linkage, high precision machining and wide adaptability; ● Based on Siemens self-developed operation platform based on years of experience, the system integration operation is simple and one-button control, the machine tool adapts to a wide range and the equipment covers a small area; 3.System Configuration

NO.

Name

Model

Supplier

Qty

Remarks

1

Laser source

6000W

Everfoton

1

Raycus,MAX

2

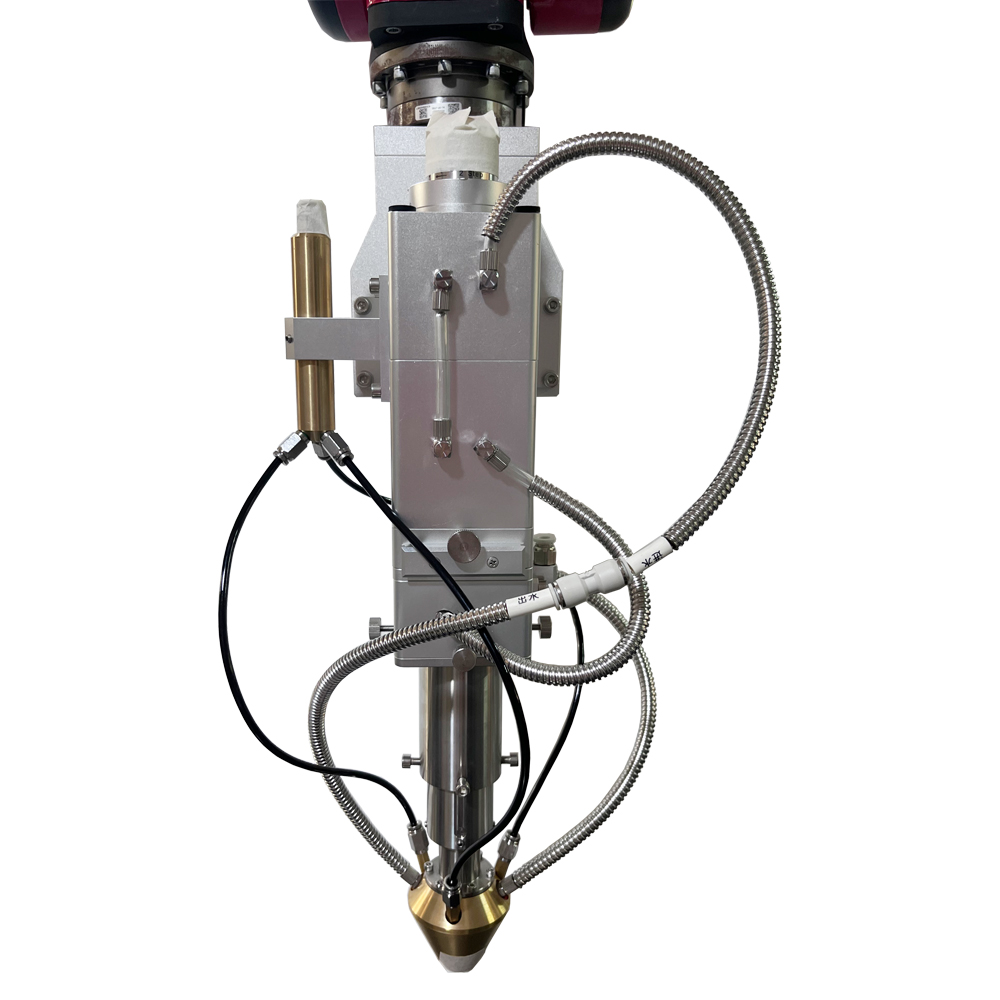

Laser cladding head

Cladding spot 4.2mm

Questt

1

3

Powder feeder

double cylinders

Questt

1

4

Robot

1650mm robot arm

Domestic

1

6+2 axis system

5

Dust purification system

SLE-550FP

Questt

1

6

Central control system

Siemens PLC+touch screen

Questt

1

Siemens PLC controller

7

Water chiller

Dual temperature

Hanli

China

1

6000w

8

Two-axis positioners

Customized

Questt

Payload 300kg
