Concrete pipe making machine
GUANGXI HONGFA HEAVY MACHINERY CO., LTD.
See what’s includedHide breakdown
- FOB goods (100)
- $742,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $25,988
- Section 301 tariff (25.0%)
- $185,625
- Customs fees (MPF/HMF)
- $1,563
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $742,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $25,988
- Section 301 tariff (25.0%)
- $185,625
- Customs fees (MPF/HMF)
- $1,563
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Concrete pipe making machine
GUANGXI HONGFA HEAVY MACHINERY CO., LTD.See what’s includedHide breakdown
- FOB goods (100)
- $742,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $25,988
- Section 301 tariff (25.0%)
- $185,625
- Customs fees (MPF/HMF)
- $1,563
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $742,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $25,988
- Section 301 tariff (25.0%)
- $185,625
- Customs fees (MPF/HMF)
- $1,563
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: steel
- Size: 1840x1700x4000mm
- Color: support customized
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Others
- Made in: Guangxi, China
About this product
- Materials: steel
- Size: 1840x1700x4000mm
- Color: support customized
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Others
- Made in: Guangxi, China
Product details
| Materials | steel |
|---|---|
| Size | 1840x1700x4000mm |
| Color | support customized |
Product details
| Materials | steel |
|---|---|
| Size | 1840x1700x4000mm |
| Color | support customized |
From the supplier

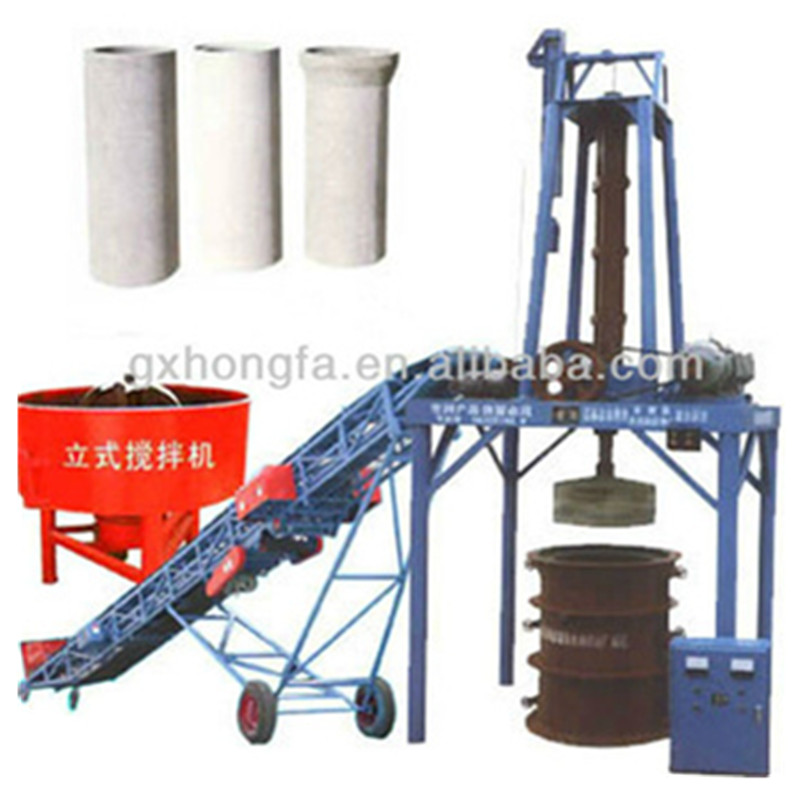

Machines and Equipment for a Concrete Pipe Production Line
1, Concrete Pipe Forming Machine:

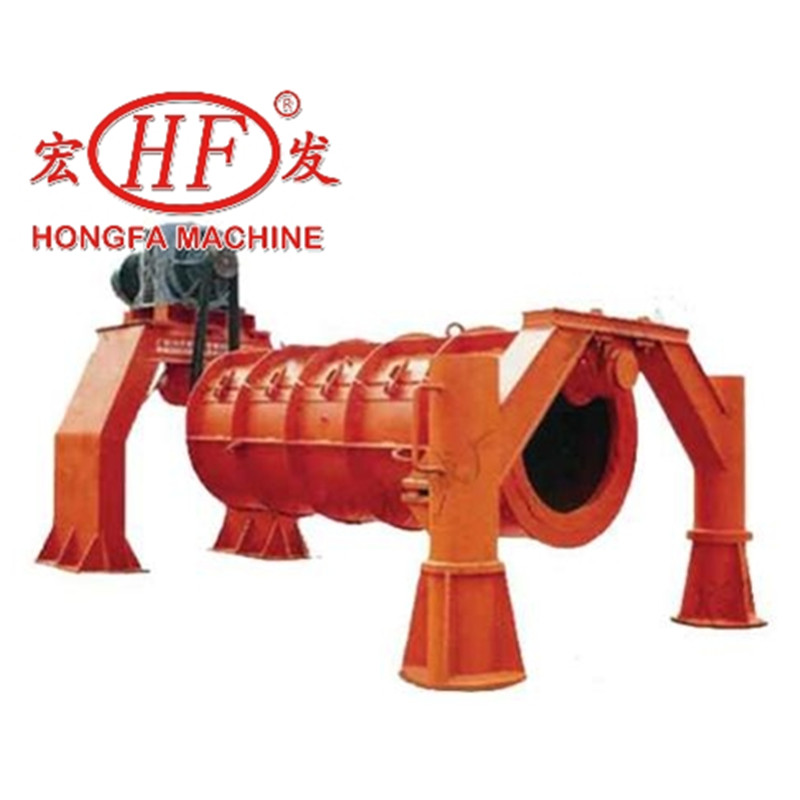

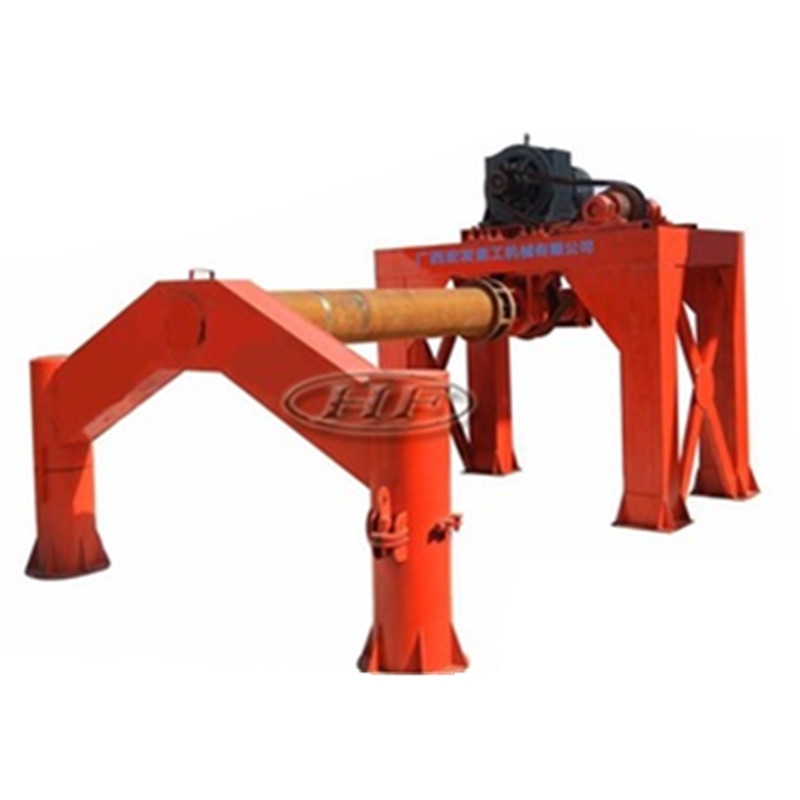

Horizontal Type: (diameter: 300 to 2400mm; length:1000 to 5000mm)
Widely used in municipal drainage, farmland irrigation, highway culverts, deep wells, etc.
Advantages: Can be used for longer or larger diameter pipes. Such as 3-4 meters long. It can be 2.3 meters in diameter. Can add reinforcement. And a host can do tubes of different lengths. Disadvantages: Can not be demolded immediately. Needs more than half a day of maintenance. All the tubes of each size need to be equipped with the corresponding number of molds according to the production capacity.

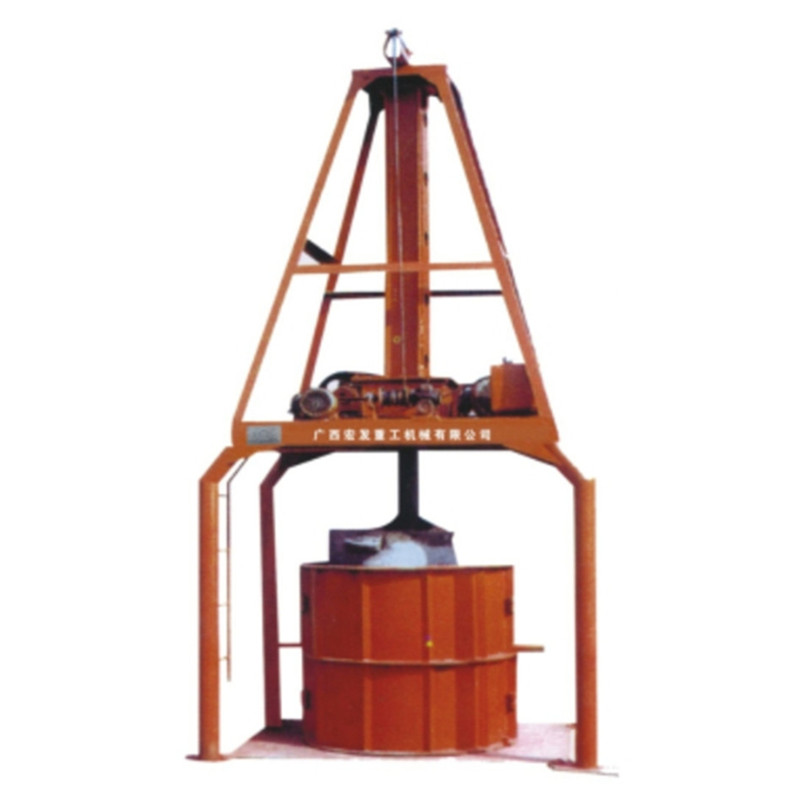

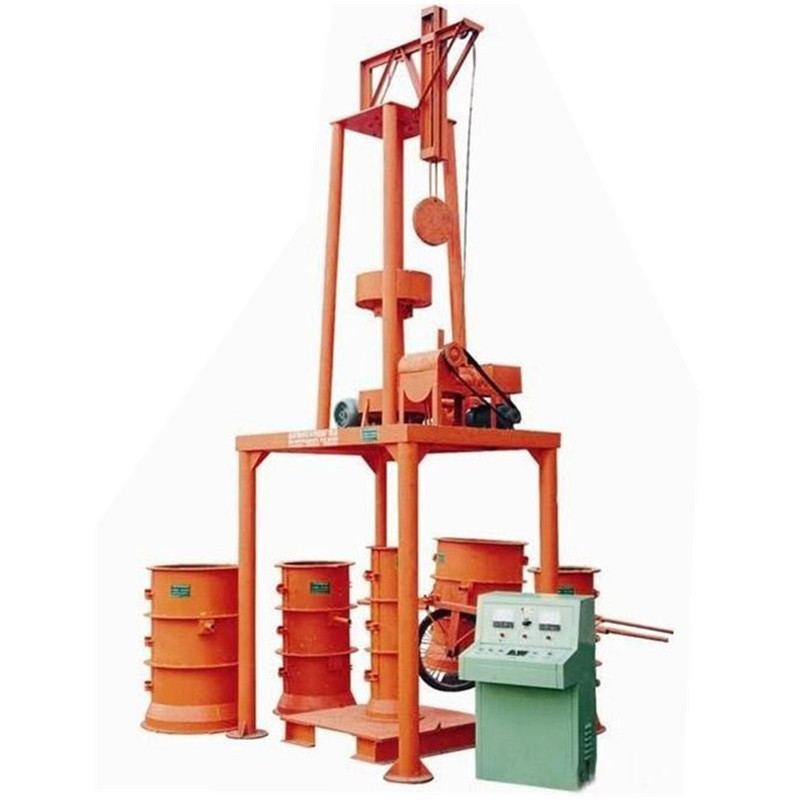

Vertical Type: (diameter: 150/200 to 1000mm; length: 500 to 1000 mm)
The working principle is: the extrusion method is used to form the concrete in the mold tube. Mainly used for urban community development, township and rural construction drainage and small bridge use, its shortcomings are low bearing capacity and low strength.
Advantages: It can be demolded immediately, and only one set of mold is needed for each size. Less investment.
Disadvantages: Can only be used for tubes with a diameter of 200-1000mm and a length of 1000mm. No reinforcement can be added.
Total power
Spindle speed
Reducer speed ratio
Molding cycle
capacity
Dimensions
11.75kw
45r/min
1：5.8
5-10min
30-100pcs/8h
1840×1700×4000mm

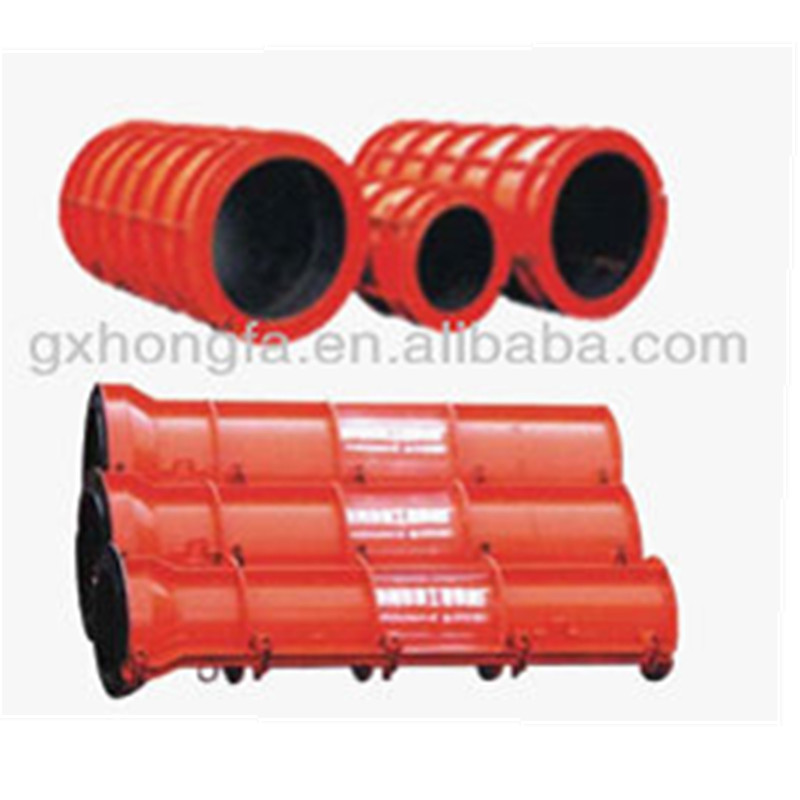

2, Mouds
Three types of pipes that Common Used:
3,Automatic Rolling Steel Frame Welding Machine
4,Concrete Mixer: To mix the cement, sand and other materials for making the pipe
5, Automatic Materials Feeder: To feed the concrete into the mould to make the pipe
6, Gantry Crane: To transport the pipe and the mould
The Clients need to provide us the following informations:
1, Which type of the machines are planning to buy, Horizontal type or Vertical type?
2,Which type of pipes are planning to make, Flat Joint, Socket Joint or Rabbet Joint?
3,What is the size of the pipe are planning to make, what is the diameter, and the length and daily capacity?Whether add reinforcement steel in pipe or not?
The pipe thickness in Chinese National Standard is:
Diameter :300,400,600,800,1000,1200,1500,2000mm
Corresponding thickness:30,40,60,80,100,120,150,200mm
Please confirm the thickness otherwise will be subject to the Chinese National Standard.
From the supplier
Machines and Equipment for a Concrete Pipe Production Line
1, Concrete Pipe Forming Machine:
Horizontal Type: (diameter: 300 to 2400mm; length:1000 to 5000mm)
Widely used in municipal drainage, farmland irrigation, highway culverts, deep wells, etc.
Advantages: Can be used for longer or larger diameter pipes. Such as 3-4 meters long. It can be 2.3 meters in diameter. Can add reinforcement. And a host can do tubes of different lengths. Disadvantages: Can not be demolded immediately. Needs more than half a day of maintenance. All the tubes of each size need to be equipped with the corresponding number of molds according to the production capacity.
Vertical Type: (diameter: 150/200 to 1000mm; length: 500 to 1000 mm)
The working principle is: the extrusion method is used to form the concrete in the mold tube. Mainly used for urban community development, township and rural construction drainage and small bridge use, its shortcomings are low bearing capacity and low strength.
Advantages: It can be demolded immediately, and only one set of mold is needed for each size. Less investment.
Disadvantages: Can only be used for tubes with a diameter of 200-1000mm and a length of 1000mm. No reinforcement can be added.
Total power
Spindle speed
Reducer speed ratio
Molding cycle
capacity
Dimensions
11.75kw
45r/min
1：5.8
5-10min
30-100pcs/8h
1840×1700×4000mm
2, Mouds
Three types of pipes that Common Used:
3,Automatic Rolling Steel Frame Welding Machine
4,Concrete Mixer: To mix the cement, sand and other materials for making the pipe
5, Automatic Materials Feeder: To feed the concrete into the mould to make the pipe
6, Gantry Crane: To transport the pipe and the mould
The Clients need to provide us the following informations:
1, Which type of the machines are planning to buy, Horizontal type or Vertical type?
2,Which type of pipes are planning to make, Flat Joint, Socket Joint or Rabbet Joint?
3,What is the size of the pipe are planning to make, what is the diameter, and the length and daily capacity?Whether add reinforcement steel in pipe or not?
The pipe thickness in Chinese National Standard is:
Diameter :300,400,600,800,1000,1200,1500,2000mm
Corresponding thickness:30,40,60,80,100,120,150,200mm
Please confirm the thickness otherwise will be subject to the Chinese National Standard.
