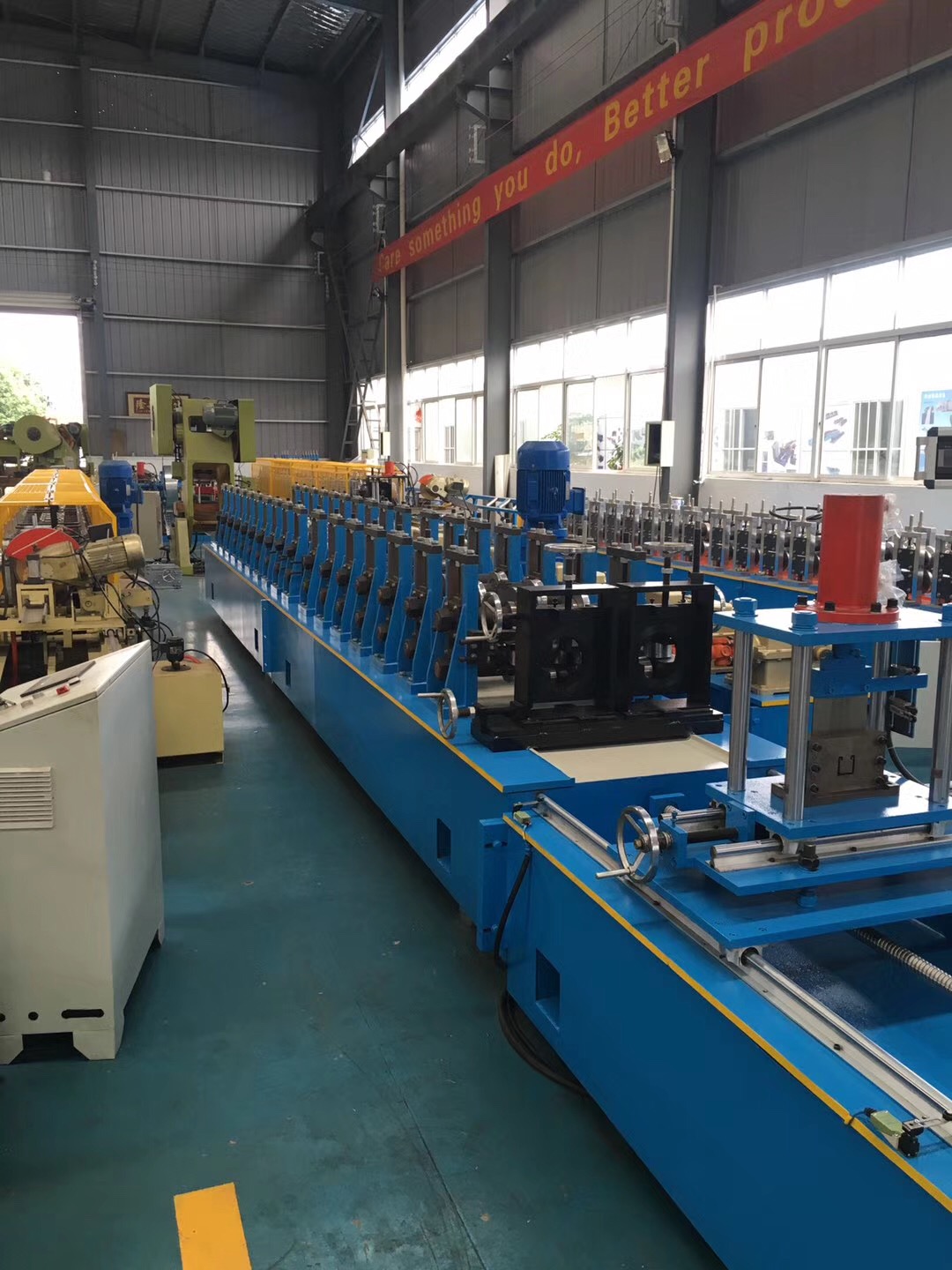

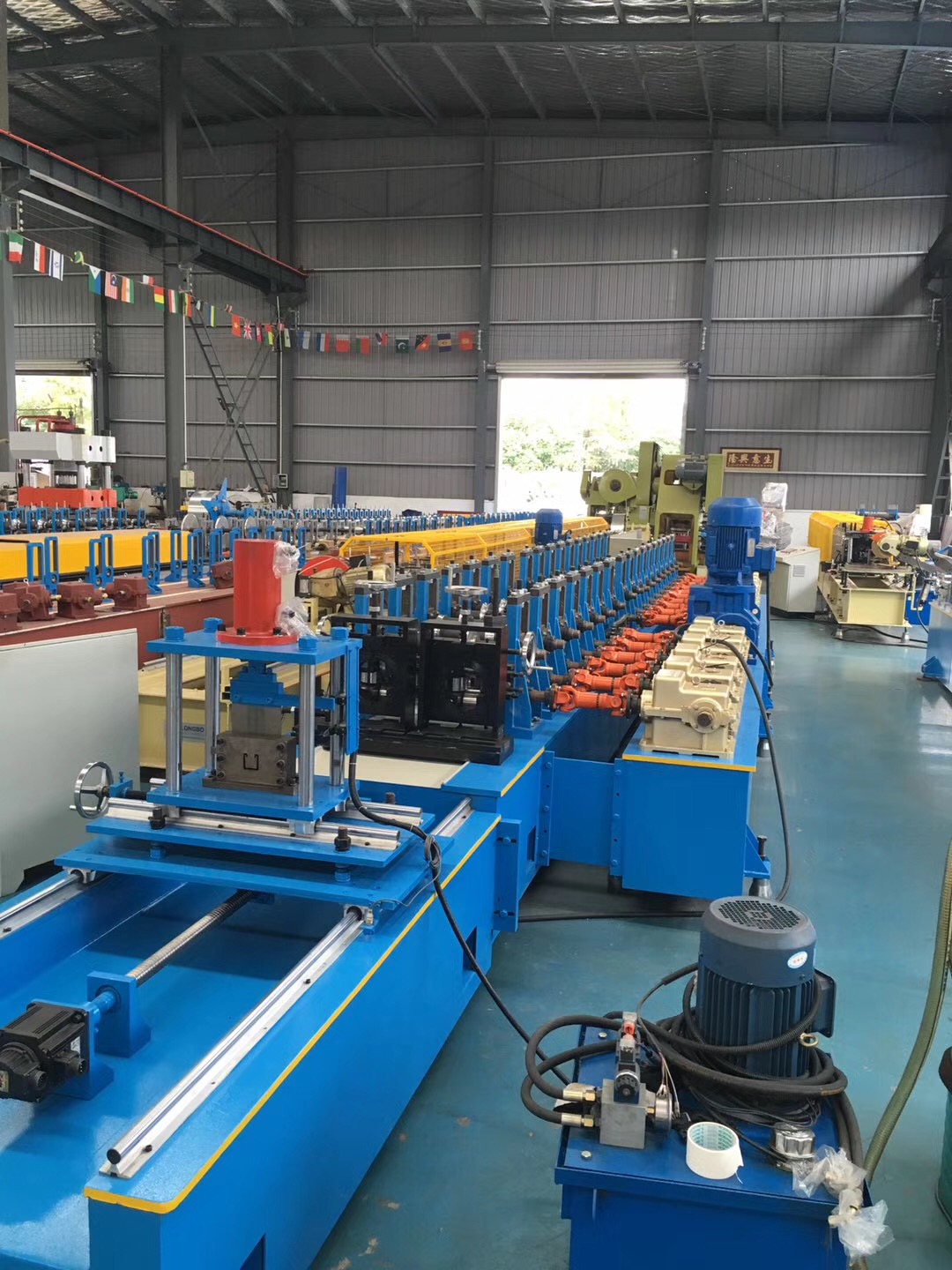

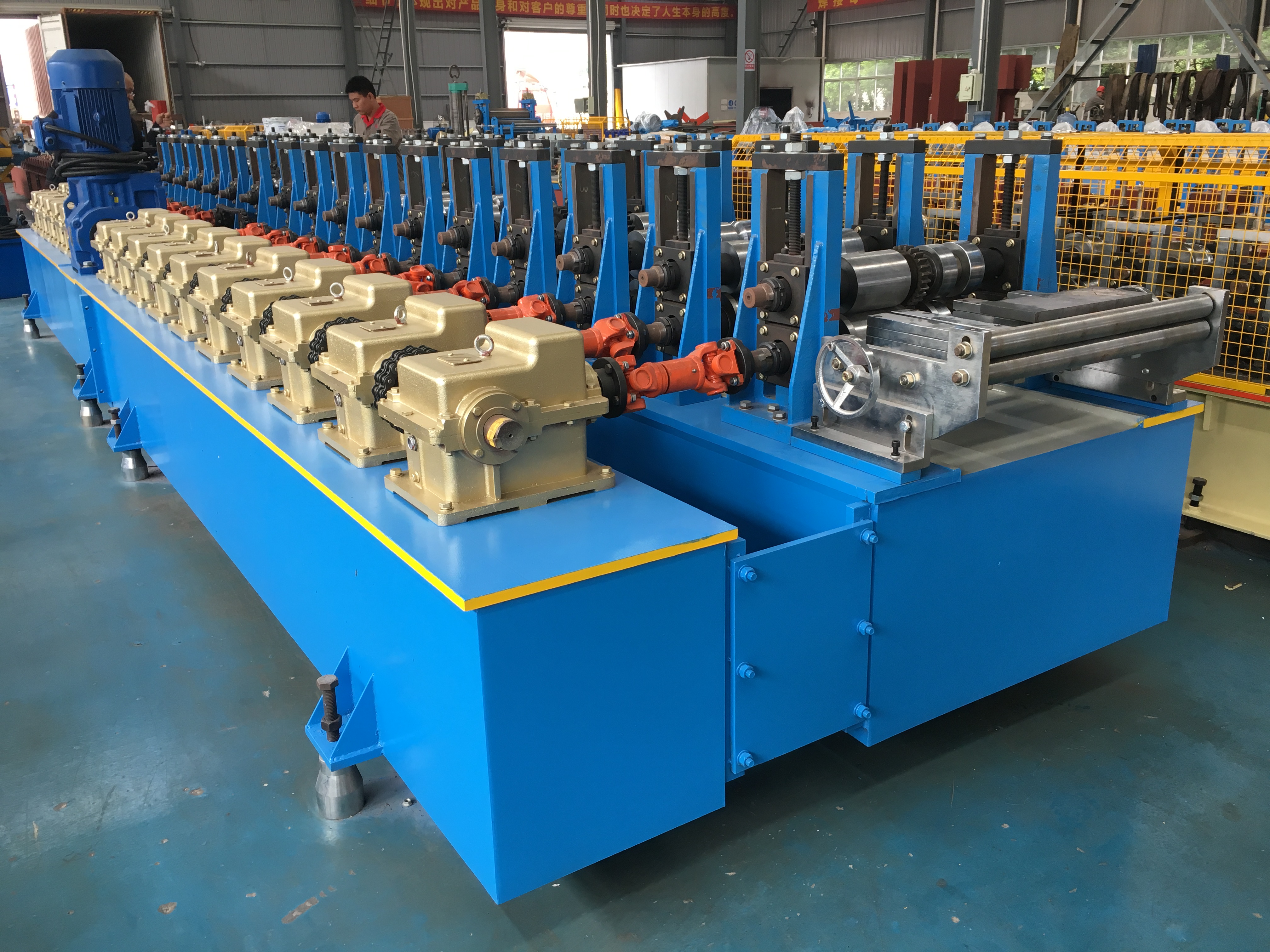

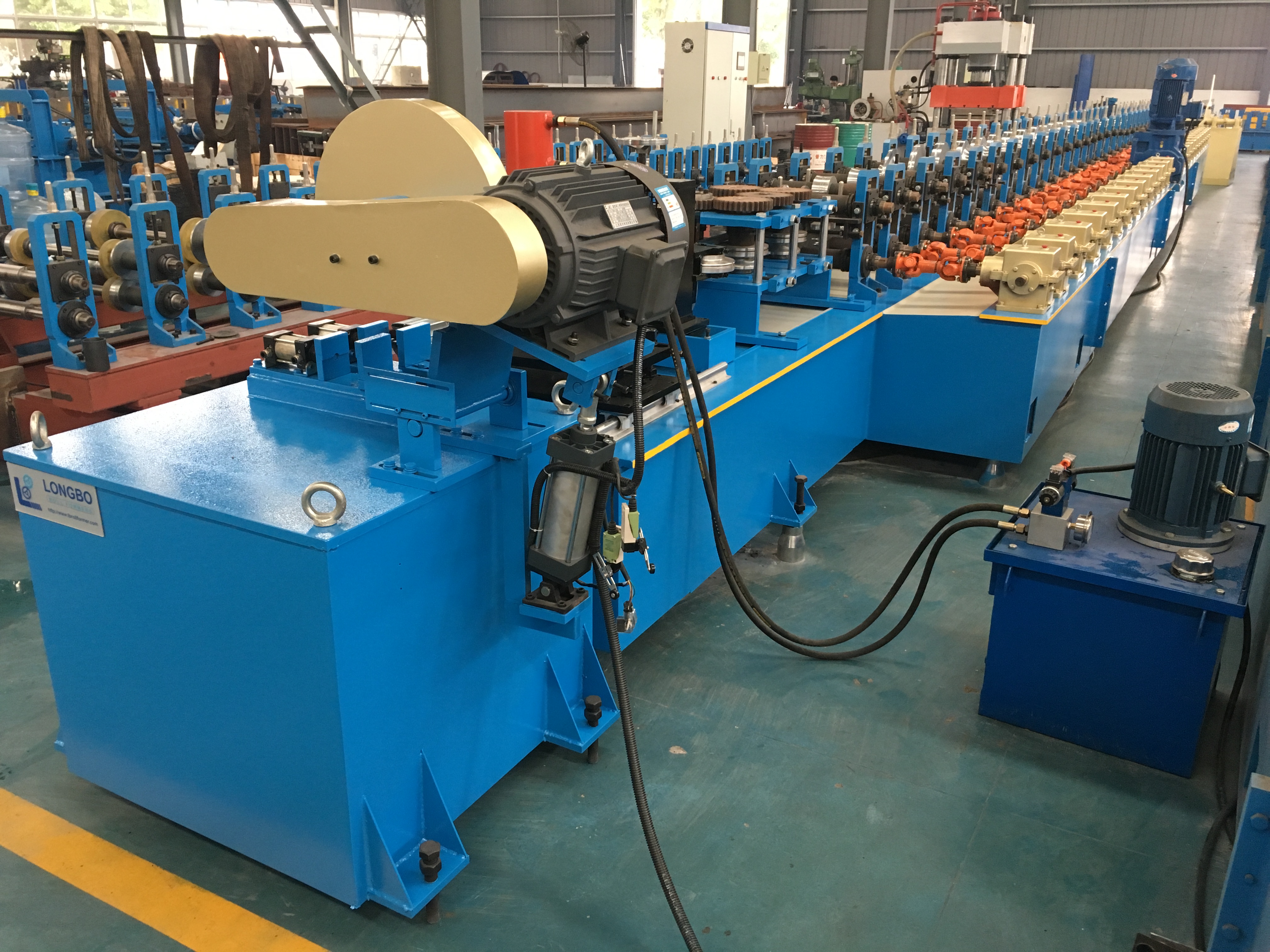

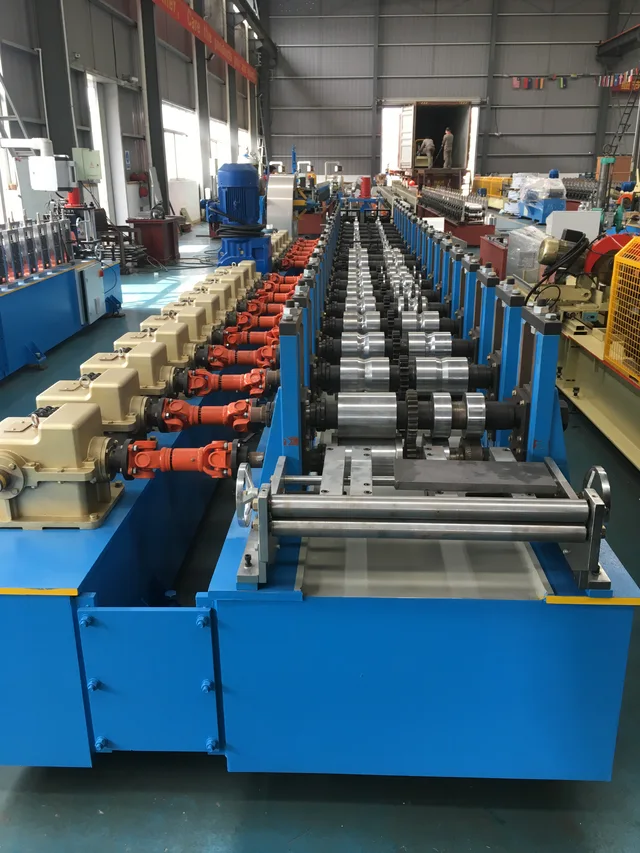

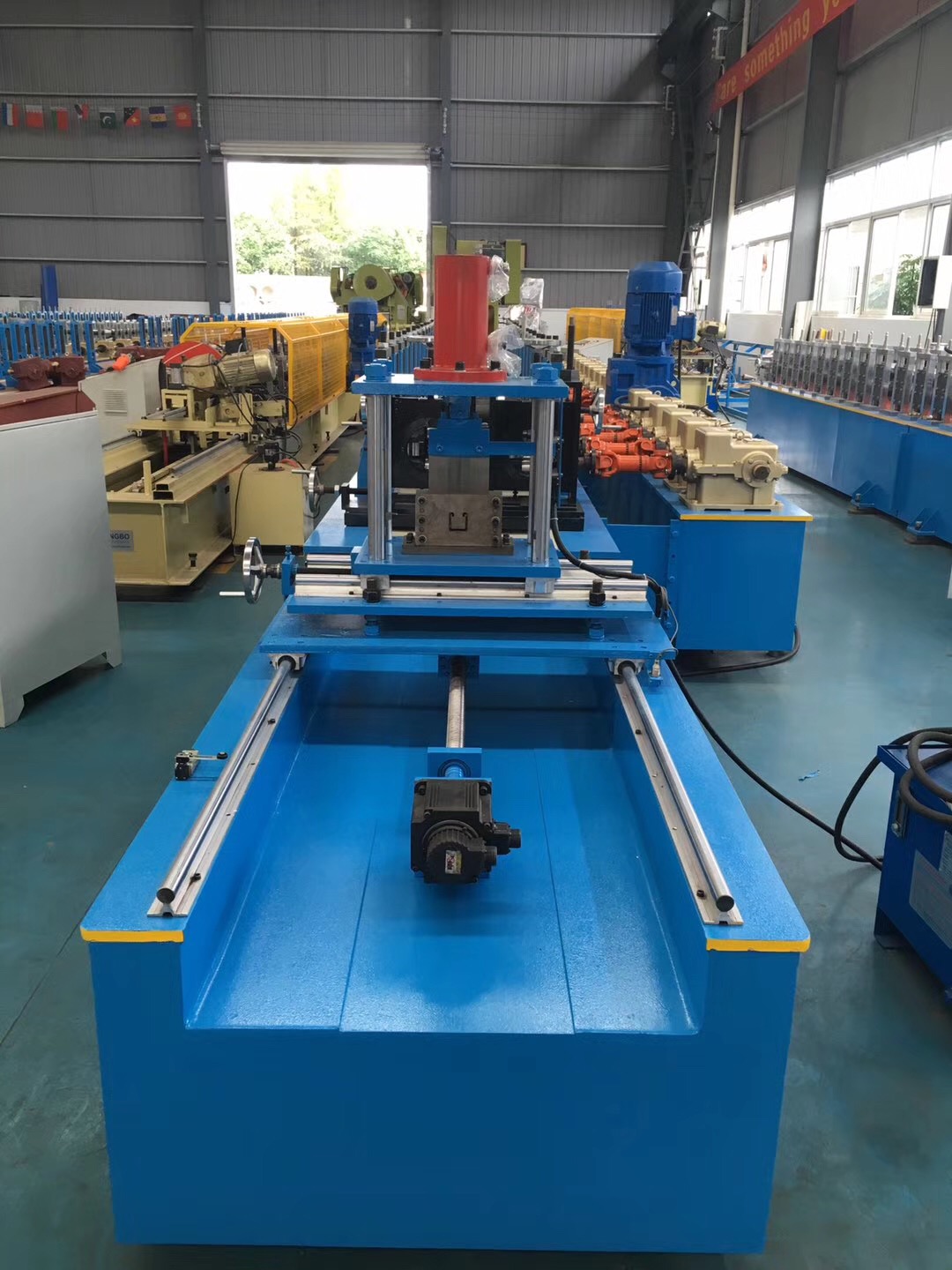

Purline profiles forming machine
WUXI LONGBO ROLL FORMING MACHINERY CO.,LTD
See what’s includedHide breakdown
- FOB goods (100)
- $1,111,111
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $38,889
- Section 301 tariff (25.0%)
- $277,778
- Customs fees (MPF/HMF)
- $2,024
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,111,111
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $38,889
- Section 301 tariff (25.0%)
- $277,778
- Customs fees (MPF/HMF)
- $2,024
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Purline profiles forming machine
WUXI LONGBO ROLL FORMING MACHINERY CO.,LTDSee what’s includedHide breakdown
- FOB goods (100)
- $1,111,111
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $38,889
- Section 301 tariff (25.0%)
- $277,778
- Customs fees (MPF/HMF)
- $2,024
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,111,111
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $38,889
- Section 301 tariff (25.0%)
- $277,778
- Customs fees (MPF/HMF)
- $2,024
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: mould steel
- Size: 8500x1200x1000
- Color: BLUE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Jiangsu, China
About this product
- Materials: mould steel
- Size: 8500x1200x1000
- Color: BLUE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Jiangsu, China
Product details
| Materials | mould steel |
|---|---|
| Size | 8500x1200x1000 |
| Color | BLUE |
Product details
| Materials | mould steel |
|---|---|
| Size | 8500x1200x1000 |
| Color | BLUE |
From the supplier
Technical parameters as below:
1、Suitable plate of the rolling :For your choice2、Forming speed: 2-4m/min
3、Forming stands: 12
Thickness: 2.0mm
4、Roller material: CR15, HRC 60℃、Roller datum roller diameter φ1205、Material of principal axis: Fine steel modulation processing of 45（axis diameter:φ50）
6、Sprocket wheel: 45 steel high-frequencies quench; distance 25.4. Quantity: 13pcs
7、Motor power: 7.5 KW8、Cut-off system: Adopts hydraulic pressure drive, cut off after forming.9、Hydraulic system electrical machinery power: 4 KW10、Hydraulic system pressure: 10Mpa
11、PLC Control system: Brand of Delta; Touch screen is brand of Delta；Encoder is Omron brand; the inverter is the Delta brand12、Rack row of work place: Steel rack of 446X199H; Detachable wall plate type row of work placeFrom the supplier
Technical parameters as below:
1、Suitable plate of the rolling :For your choice2、Forming speed: 2-4m/min
3、Forming stands: 12
Thickness: 2.0mm
4、Roller material: CR15, HRC 60℃、Roller datum roller diameter φ1205、Material of principal axis: Fine steel modulation processing of 45（axis diameter:φ50）
6、Sprocket wheel: 45 steel high-frequencies quench; distance 25.4. Quantity: 13pcs
7、Motor power: 7.5 KW8、Cut-off system: Adopts hydraulic pressure drive, cut off after forming.9、Hydraulic system electrical machinery power: 4 KW10、Hydraulic system pressure: 10Mpa
11、PLC Control system: Brand of Delta; Touch screen is brand of Delta；Encoder is Omron brand; the inverter is the Delta brand12、Rack row of work place: Steel rack of 446X199H; Detachable wall plate type row of work placeAbout the supplier
Main products: Roller Shutter Operator
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2015
Manufacturing exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2015
