About this product
- Materials: flat steel
- Size: 3380x3200x2680
- Color: Gray, or support customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangxi, China
About this product
- Materials: flat steel
- Size: 3380x3200x2680
- Color: Gray, or support customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangxi, China
Product details
| Materials | flat steel |
|---|---|
| Size | 3380x3200x2680 |
| Color | Gray, or support customized |
From the supplier

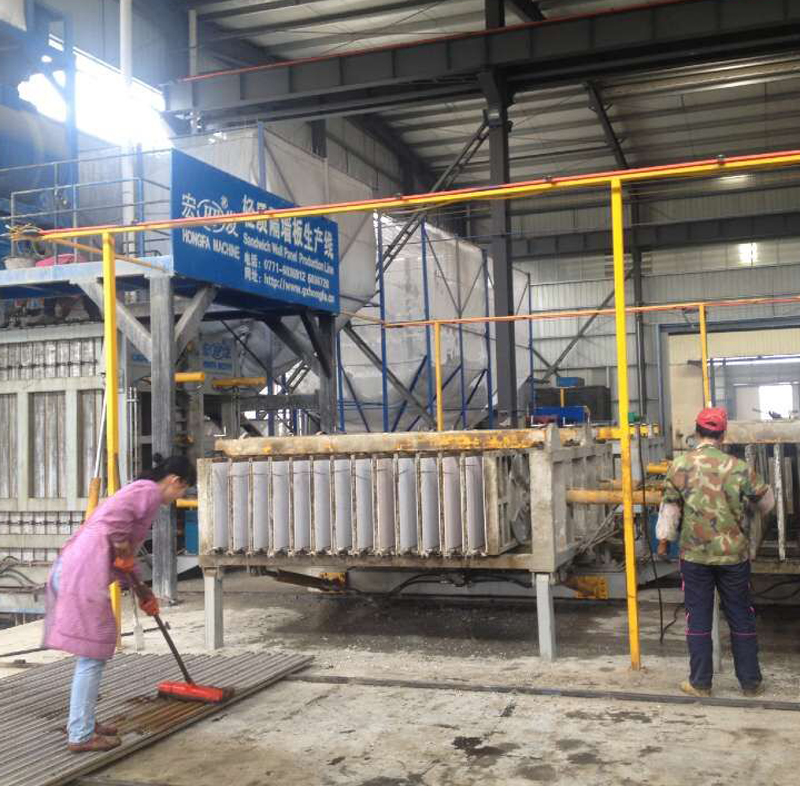

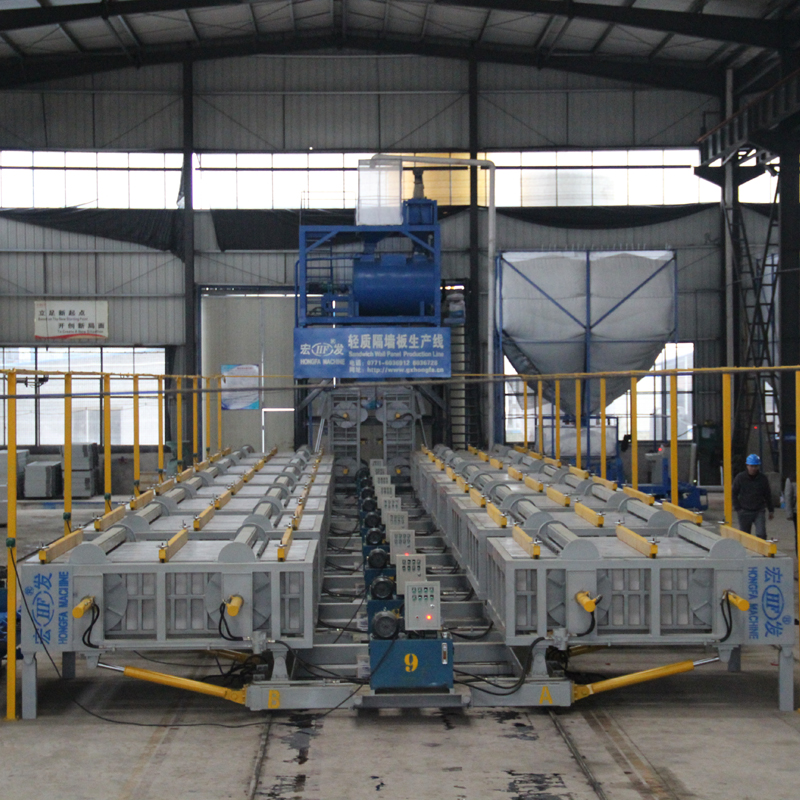

Automatic vertical wall panel machine HFP530A wall panel production line
HFP530A full automatic lightweight concrete wall panel system is Hongfa hot sale product, for 10 sets molding machine, total production line only needs 7 women, labor density and intensity is low.
It adapts the hydraulic de-molding system, it is fast and convenient, also suitable for pallet stacking. It can decrease the broken rate efficiently.
Its PLC control system, the mold opening and closing is hydraulic, hence it can be controlled automatic.
In addition, the wall panel machine can produce the lightweight panel length of 3000mm, width of 600mmm, the thickness of 60-200mm. Panel size also can be produced by customer requirements.
Since electrical and steam-powered heating system. Therefore makes demoulding fast, short time conservation, and the cost is much less.
Because forming mold chamber has high stiffness. So panel making has high precision, the thickness is prospective, the surface of the panel is smooth.
For hollow panels, plastic core tube is lining metal tube, so it is durable, free washing, pulling tube by electric.
Hongfa Lightweight Concrete Wall Panel Machine Advantages
1)High Capacity
Hongfa's finished products is in high yield, for the silicate board don't fall off from the panel.
Others: Silicate board falling off from the panels happens often for other brand machines.
2) Intact finished products
Because of the higher pressure of the slurry infusing machine, the surface of the panel is neater and more complete.
Others: The surface of wall panel is not flat and the edge is not complete.
3)Good Flatness
With the flat and smooth partition board Hongfa
use, the finished panel is much straight and even.
Others: The finished panel is not straight and even, for they use the low quality partitioin board.
4)High Strengh
Because of the superb sealing performance of the Hongfa machine, no cement slurry missing, the panel is stronger.
Others: Leaking cement and slurring makes the panel in lower strength and intensity
HFP530A Automatic Molding Car Parameter and Productivity
Overall dimensions(mm)
Power(KW)
Output / Pieces per mould
75mm
90mm
100mm
120mm
150mm
200mm
3030*2250*3100mm
4KW/5.5KW, Total 80KW
30pcs
26pcs
22pcs
26pcs
22pcs
16pcs
Other main machines part for complete production line

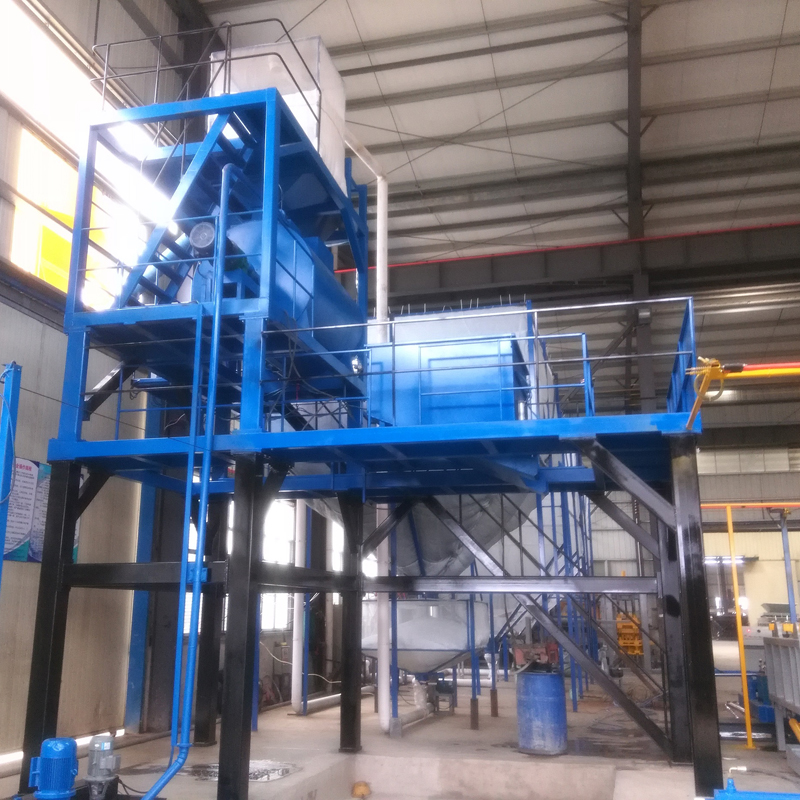

1. Mixing plant
HONGFA mixing plant consists of mixer, movable infusion unit and aggregating system. It can mix all raw material automatically and record every data for production. 3.6CBM capacity mixer guarantees infusion efficiency. It only needs about 15seconds to finish a panel with size 2440*610*100mm.
2. EPS expander
EPS expander is used for expanding raw polysterene, one-time expander can make EPS around 15-18kg/CBM, interval expander can get proportion on 9-11kg/CBM.

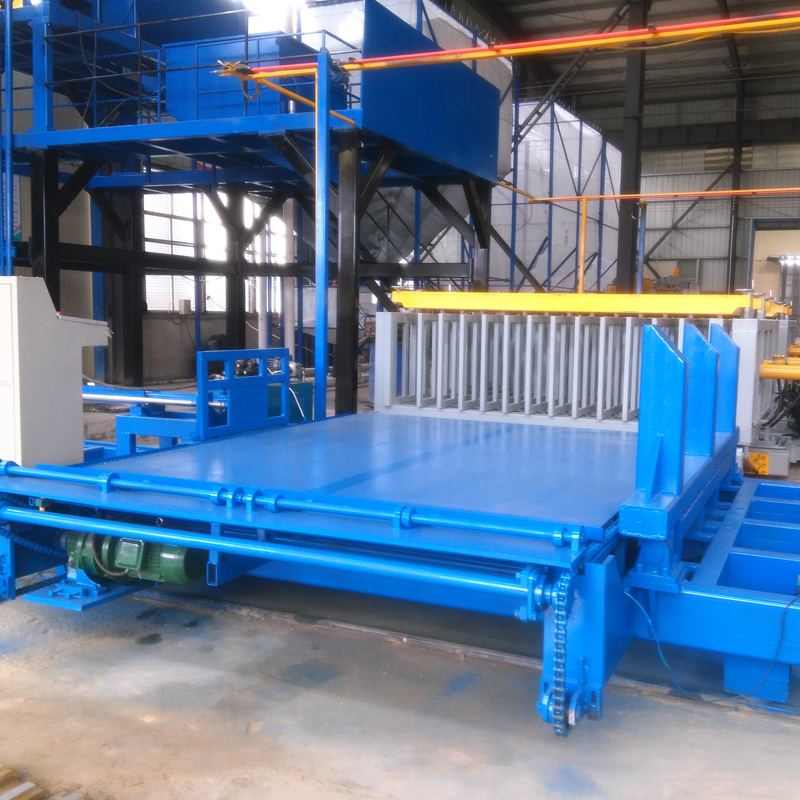

3. De-molding machine
De-molding machine can pull the cured panels out deirectly, Hongfa design it based on 6 years panel manufacturing experience, make it possible that demolding machine is movable, after demolding, the molds can be installed immediately without any delay. Multiwork is possible so efficiency is triple compared to traditional vertical manual and semi horizontal production line.

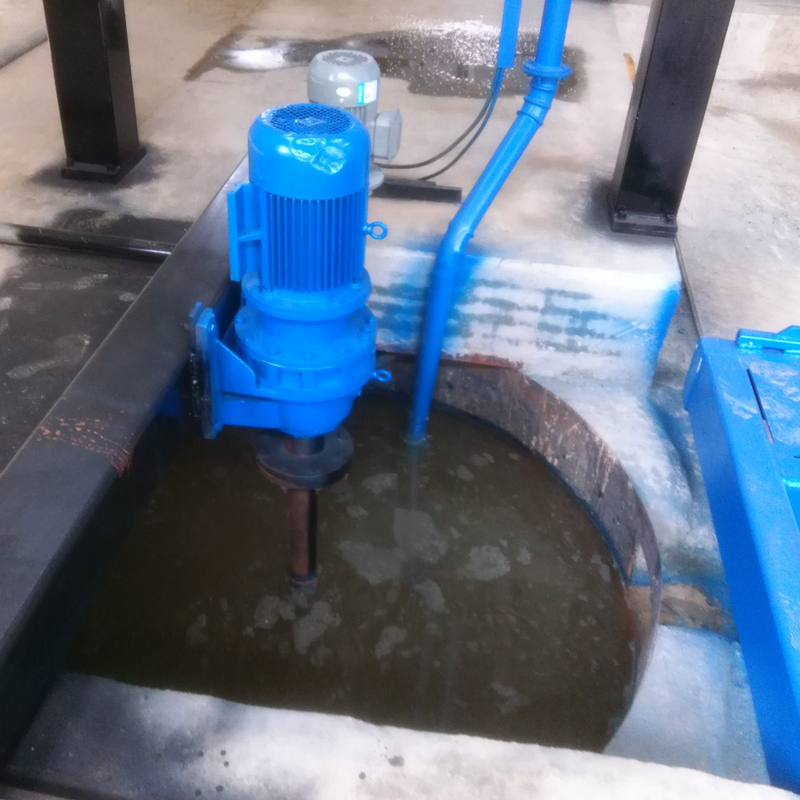

4. Recycling unit
Recycling unit can save eveything in production, waste slurry settling in underground mixer, the cement and sand will be pumped into mixer again for next mixing cycle. Keep production clean and make waste recycling, cost saving.
Application of lightweight wall panel
