Introduce of HF400 Hydraulic Block Machine

This is a double sides hydraulic pressing machine,the machine electricity and hydraulic are all in one ,and controlling by the PLC system.Here is one specific mold with the machine,it can produce insulating block,meanwhile it can produce different shape and size of block by changing the molds.With low labor intensity and high productivity to produce high strength new energy-saving building materials,by using industry waste,like steel slag and fly ash,ect.by this way ,it can save a lot arable land for the state.

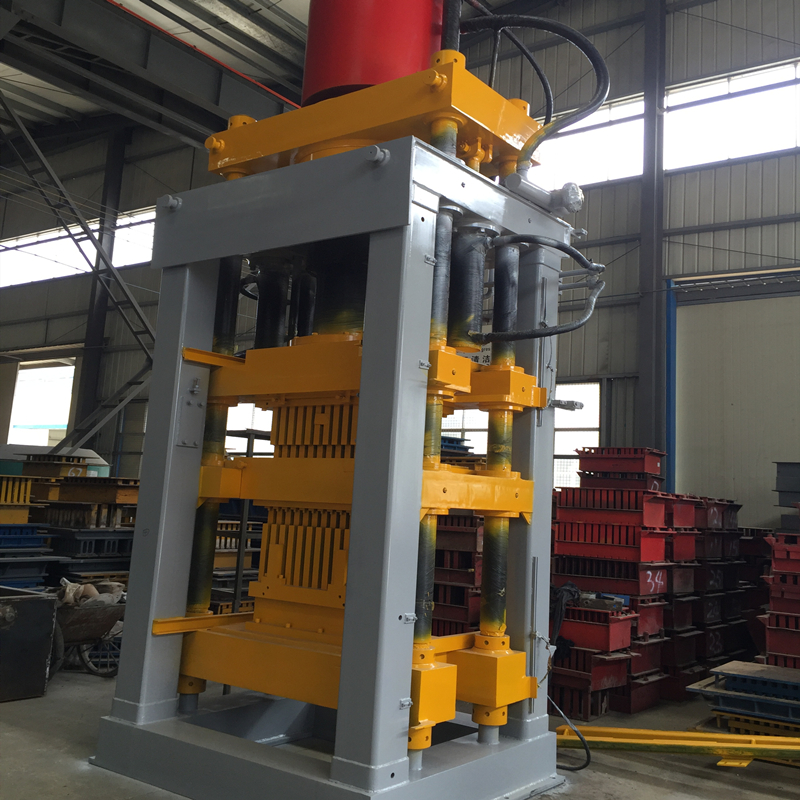

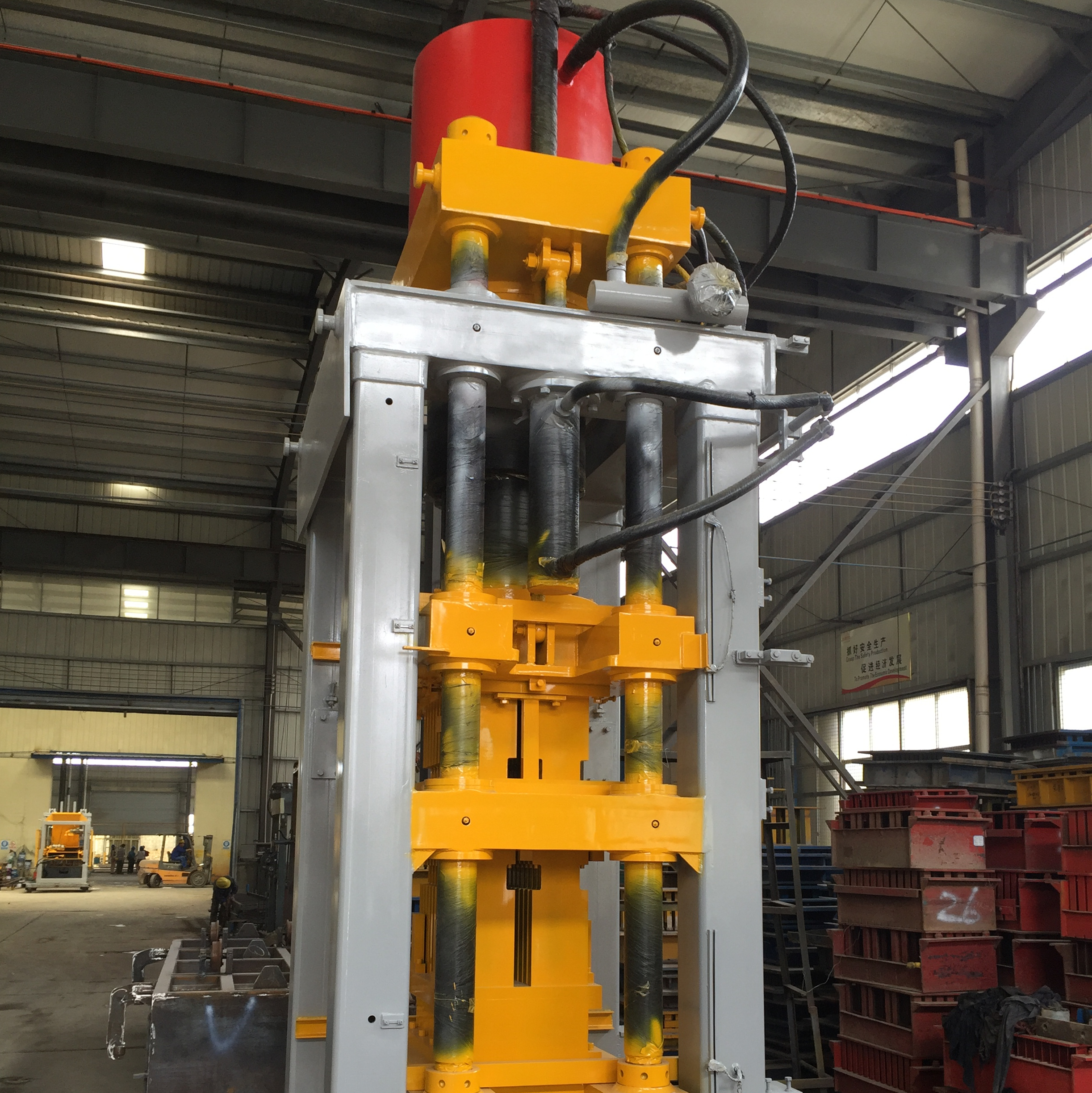

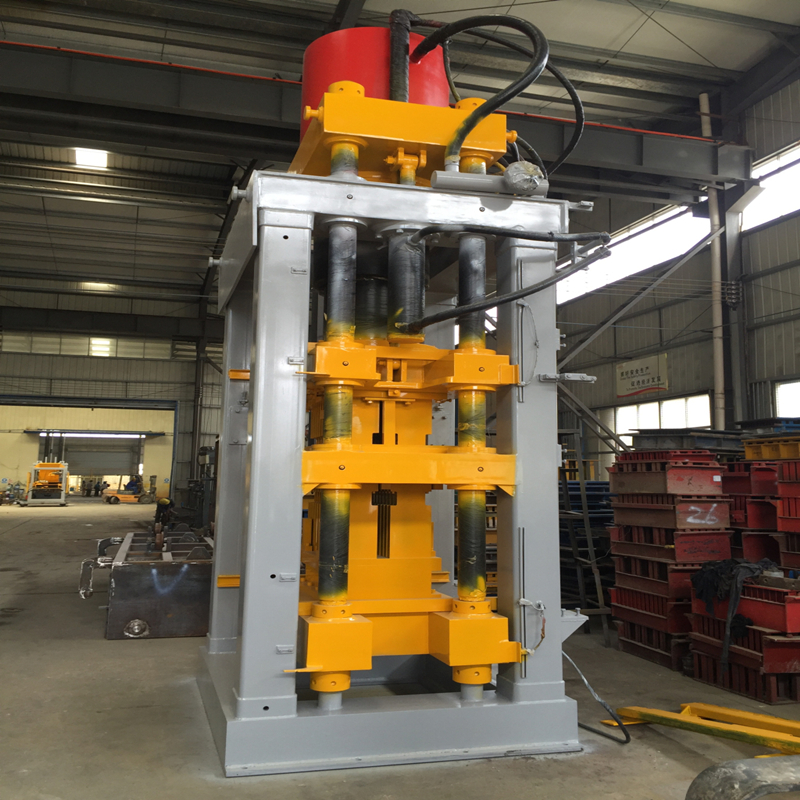

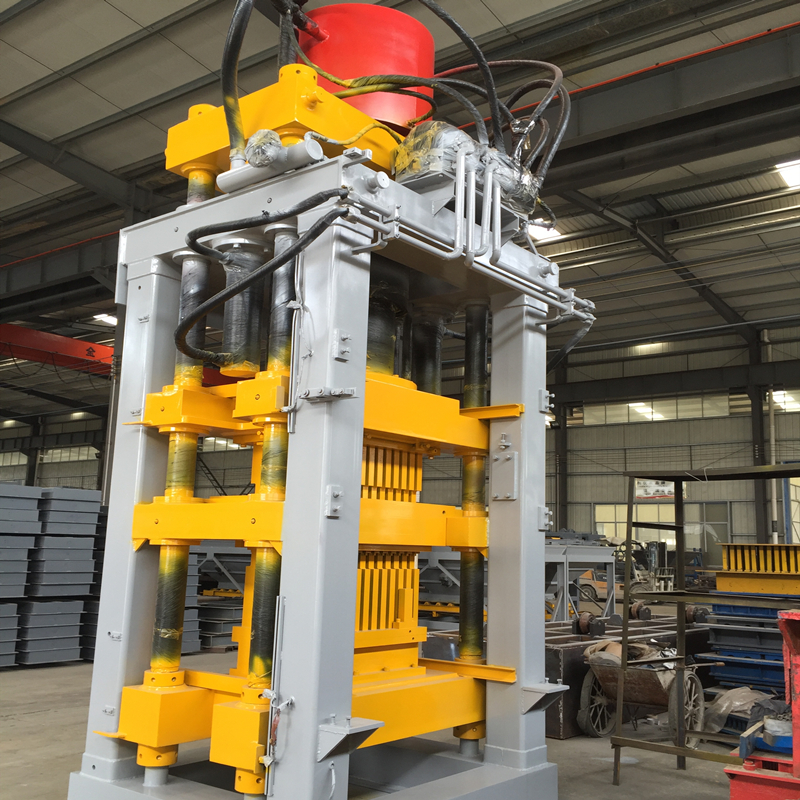

Main structure

The machine is made of forming machine ,materials

Feeder,hydraulic system,electrical system,block receiver

and stacker.And the forming machine includes Frame,

upper mold,mold core&core seat component

(or call #2 panel),#3panel,bottom part & ejector rob

Component,forming die impression,hook compon ent

And buffer .

The materials feeder has the components of frame,

Materials feeding case,drawing panel,guide rail and

Hopper.The block receiver is working by pneumatic

Pulley and all the pneumatic gas valve are from well

Known brand-AirTAC ,so it has the advantage of simple

And reliable ,Easily operating ,dependable performance and insure controlling .The hydraulic system includes hydraulic hydraulic unit ,pipe and cylinder,all the hydraulic components are from famous domestic & overseas brand,it has reliable performance and Insure controlling .The hydraulic unit is made of oil tank,motor ,high-press pump,pile-up valve group,cooler and oil in-return filter .also the oil tank brings oil thermometer ,liquid level meter and filter element blockage a larm,when the filter element was blocked up,it will notify to change.

Eletrical system is using Mitsubishi FX2Z PLC ,Siemens contator and omron relay ,having the functions of automatic operation and realizing fault diagnosis.It also adopts safety logic controller to avoid incorrect operation effectively,to make sure the machine running in an effective and accurate way ,also for the operator’s safety.

Advantage of hydraulic block machine

Programmable Controlled

Mechanical,Electrical and Hydraulic Integration

Double-sides Hydraulic pressure System

High production efficiency, low labor intensity

Green,Energy-saving and sustainable

Applied to produce varies sizes and types of Concrete Blocks and Bricks by replacing molds with corresponding specifications. Wide range materials can be used for making New Energy-saving Building Materials,such as sand,stone powder, steel slag, fly ash and other industrial wastes.

Technical Parameter

Molding cycle

≦20s

Maximum pressing force

4000kn

Maximum demoulding force

318kn

Maximum system pressure

31.5Mpa

System working pressure

25Mpa

Host power

42.2kw

Host dimension

1750*1000*4200mm

Pallet size

900*800mm

Standard block

30pcs/mold  240*115*50mm

Paving block

21pcs/mold 200*100*50mm

Host machine weight

14.5T

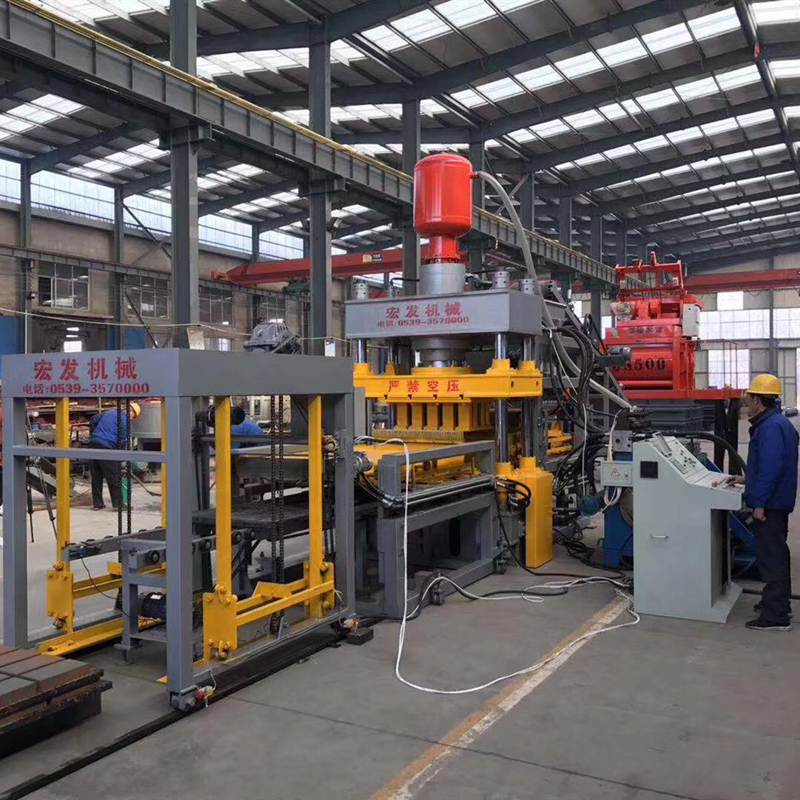

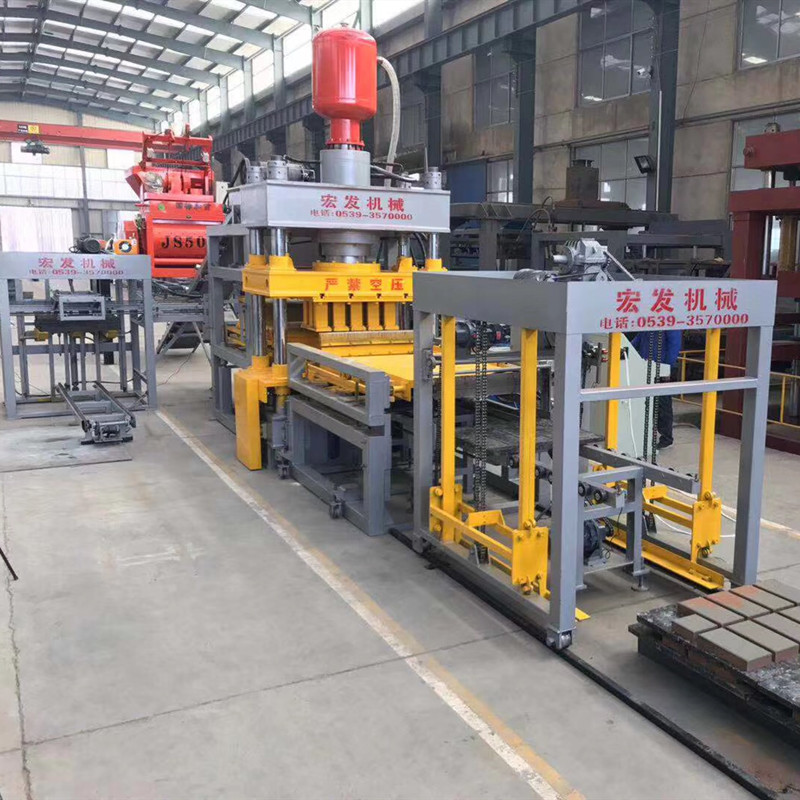

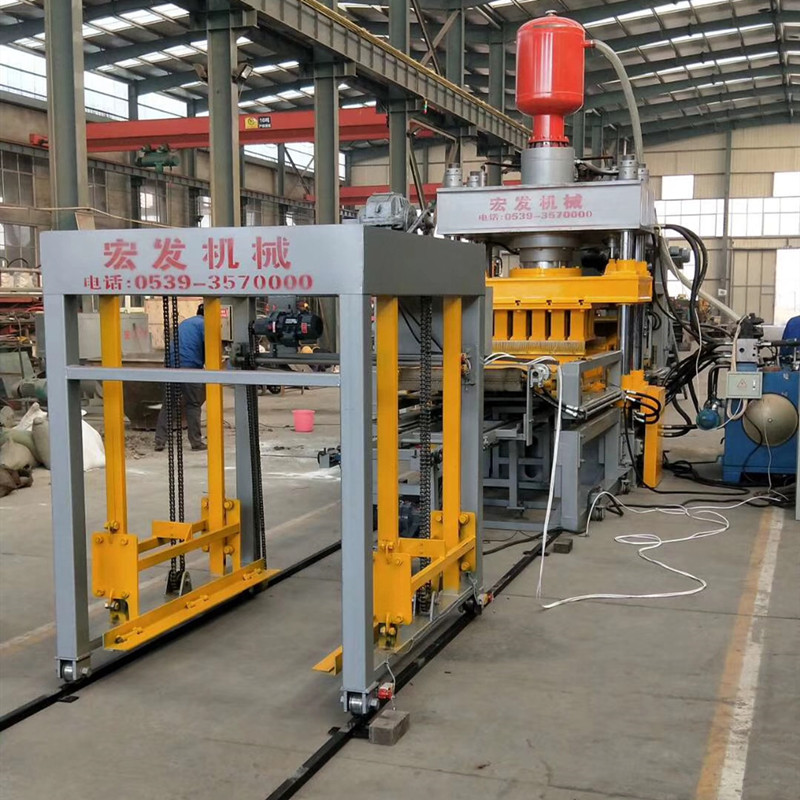

Layout of Hydraulic block machine production line

• 1. Pick up block shelf →2.automatic stacker →3.hydraulic block machine→4.mixer→5.batching machine→6.loader→7.finished goods storage→8.Impact Crusher→9.Crusher→10.raw materials→11.finished block curing area

Packing & Delivery

Packaging

Size

20' Container20

Weight

20T

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use per film for packing or pack it according to customers special request.

Packaging

Size

40' Container

Weight

28 T

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use per film for packing or pack it according to customers special request.
