AFI-PV-63 B/C curve Photovoltaic DC Arc Fault Circuit Interrupter AFDD AFCI Breaker DC500V/250V
Adidi Electric(Suzhou)Co.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
AFI-PV-63 B/C curve Photovoltaic DC Arc Fault Circuit Interrupter AFDD AFCI Breaker DC500V/250V
Adidi Electric(Suzhou)Co.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: CCCOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: CCCOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | CCCOther |
| Poles number | Other |
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | CCCOther |
| Poles number | Other |
From the supplier
The AFI-PV-63 series photovoltaic DC Arc Fault Detection Devices are assembled from DC circuit breakers, tripping mechanisms, and DC arc - detection modules. They use chip - detection programs to detect DC arc faults. When a DC fault arc occurs in the circuit, the AFI-PV-63 series photovoltaic DC Arc Fault Detection Devices can effectively identify the fault arc in the circuit and immediately cut off the power supply, playing the role of arc - fault protection.
Technical Parameters

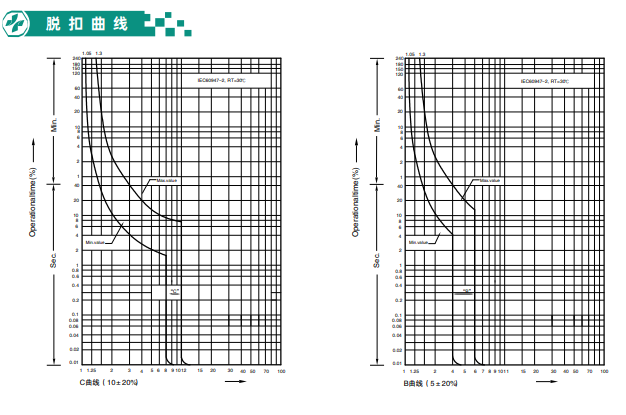

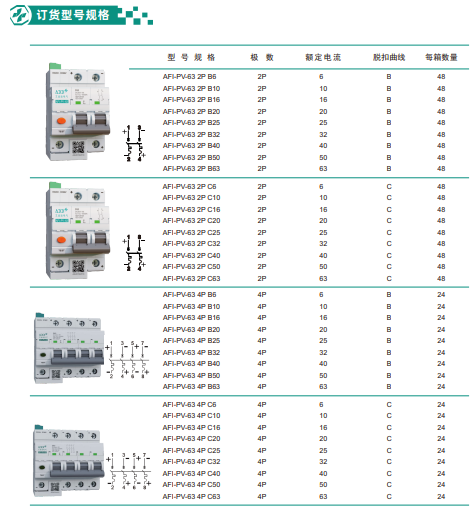

ContentTechnical ParametersRated voltage Ue, VDC500Rated operating voltage for AFD unit, VDC24 - DC60Rated current In, A6, 10, 16, 20, 25, 32, 40, 50, 63Number of poles2P/4PInstantaneous tripping typeSet value, Type B 5In ± 20%, Type C 10In ± 20%Rated short-circuit breaking capacity Icn, A10,000Service short-circuit breaking capacity Ics, A10,000StandardsIEC63027 GB/T 39750From the supplier
The AFI-PV-63 series photovoltaic DC Arc Fault Detection Devices are assembled from DC circuit breakers, tripping mechanisms, and DC arc - detection modules. They use chip - detection programs to detect DC arc faults. When a DC fault arc occurs in the circuit, the AFI-PV-63 series photovoltaic DC Arc Fault Detection Devices can effectively identify the fault arc in the circuit and immediately cut off the power supply, playing the role of arc - fault protection.
Technical Parameters
ContentTechnical ParametersRated voltage Ue, VDC500Rated operating voltage for AFD unit, VDC24 - DC60Rated current In, A6, 10, 16, 20, 25, 32, 40, 50, 63Number of poles2P/4PInstantaneous tripping typeSet value, Type B 5In ± 20%, Type C 10In ± 20%Rated short-circuit breaking capacity Icn, A10,000Service short-circuit breaking capacity Ics, A10,000StandardsIEC63027 GB/T 39750About the supplier
