ADDF5-40 6A~40A AFDD+RCBO 1P+N High Performance Product AC230/240v 50Hz
Adidi Electric(Suzhou)Co.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
ADDF5-40 6A~40A AFDD+RCBO 1P+N High Performance Product AC230/240v 50Hz
Adidi Electric(Suzhou)Co.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: CEOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: CEOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | CEOther |
| Poles number | Other |
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | CEOther |
| Poles number | Other |
From the supplier

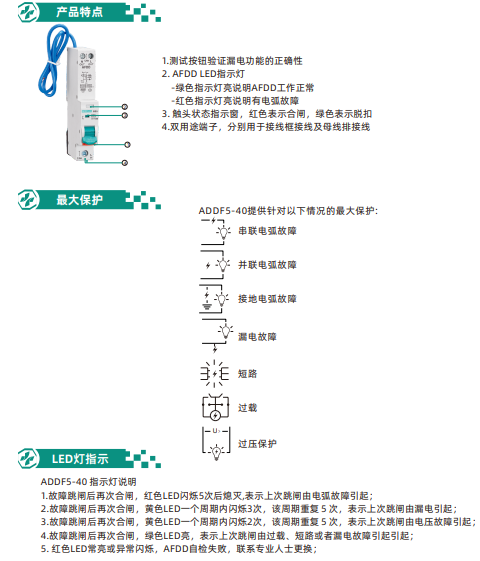

The ADDF5-40 series Arc Fault Detection Device are assembled from 18mm - wide double - pole leakage circuit breakers (RCBO) and arc - detection modules. The products have functions of short - circuit protection, over - current protection, over - voltage protection, leakage protection, and arc - fault protection. The ADDF5-40 series Arc Fault Detection Device meet the performance requirements of the standard IEC62606 - 2013. The ADD F5 - 40 series is designed in particular for UK market.
Technical Parameters
ContentTechnical ParametersRated voltage Ue, VAC230/240ApprovalsUKCA, CERated frequency, Hz50Rated insulation voltage Ui, V500Rated impulse withstand voltage Uimp, V4000Rated current In, A6, 10, 16, 20, 25, 32, 40Number of poles1+NInstantaneous tripping typeB, CSensitivity I n, mA30RCD typeAC, ARated short circuit breaking capacity Icn, A6000Mechanical and electrical endurance, cycles4000Protection degreeIP20Ambient temperature, °C-25~+40StandardsIEC 62206, IEC61009-1From the supplier
The ADDF5-40 series Arc Fault Detection Device are assembled from 18mm - wide double - pole leakage circuit breakers (RCBO) and arc - detection modules. The products have functions of short - circuit protection, over - current protection, over - voltage protection, leakage protection, and arc - fault protection. The ADDF5-40 series Arc Fault Detection Device meet the performance requirements of the standard IEC62606 - 2013. The ADD F5 - 40 series is designed in particular for UK market.
Technical Parameters
ContentTechnical ParametersRated voltage Ue, VAC230/240ApprovalsUKCA, CERated frequency, Hz50Rated insulation voltage Ui, V500Rated impulse withstand voltage Uimp, V4000Rated current In, A6, 10, 16, 20, 25, 32, 40Number of poles1+NInstantaneous tripping typeB, CSensitivity I n, mA30RCD typeAC, ARated short circuit breaking capacity Icn, A6000Mechanical and electrical endurance, cycles4000Protection degreeIP20Ambient temperature, °C-25~+40StandardsIEC 62206, IEC61009-1About the supplier
Main products: AC breaker, Circuit breaker, Small breaker ( low-voltage apparatus), Switch disconnector/Circuit breaker, Surge protector, Earth Leakage Circuit Breaker, GFCI (Ground Fault Circuit Interrupter), Signal Lamp Circuit Breaker
