ADDF-63 6A~63A Arc Fault Circuit Interrupter AFDD+MCB AFCI Breaker Protector AC230/240v 50Hz
Adidi Electric(Suzhou)Co.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
ADDF-63 6A~63A Arc Fault Circuit Interrupter AFDD+MCB AFCI Breaker Protector AC230/240v 50Hz
Adidi Electric(Suzhou)Co.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: CCC
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: CCC
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | CCC |
| Poles number | Other |
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | CCC |
| Poles number | Other |
From the supplier
The ADDF-63 series Arc Fault Detection Device are assembled from miniature circuit breakers (MCB) and arc detection modules. The Arc Fault Detection Device have functions of short-circuit protection, overload protection, and arc-fault protection. They detect arc-faults through chip-based detection procedures and cut off the power supply when a fault-arc occurs in the circuit, providing arc-fault protection. According to the statistics of the China Fire Yearbook, the proportion of electrical fires among all fires is increasing year by year and 70% of electrical fires are caused by fault-arcs. The ADDF-63 series Arc Fault Detection Device can effectively reduce the risk of fires caused by fault-arcs.

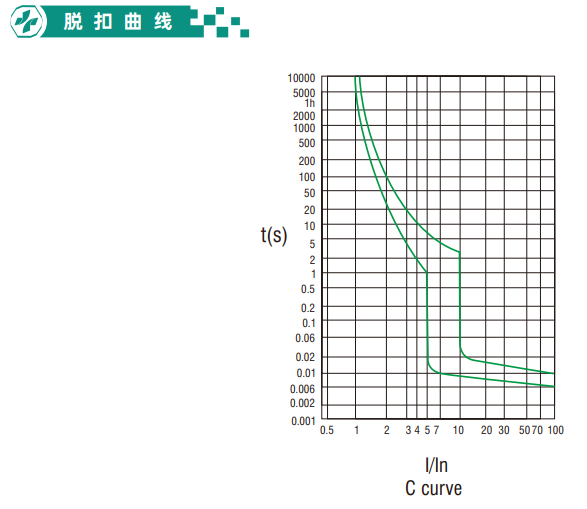

ContentTechnical ParametersStandardsIEC/EN62606; IEC60898-1ApprovalsCQCNumber of poles2Rated current In, A6, 10, 16, 20, 25, 32, 40, 50, 63Rated voltage Ue, VAC230/240Rated insulation voltage Ui, V500Rated frequency, Hz50Rated short-circuit breaking capacity Icn, A4500Rated impulse withstand voltage Uimp, V4000Dielectric strength test voltage for 1min, V2000Mechanical and electrical endurance, cycles4000Protection degreeIP20Connection capacity, mm²25Terminal tightening torque, N.m2.5Instantaneous tripping typeType C (5-10) InAmbient temperature, ℃-25~+40
From the supplier
The ADDF-63 series Arc Fault Detection Device are assembled from miniature circuit breakers (MCB) and arc detection modules. The Arc Fault Detection Device have functions of short-circuit protection, overload protection, and arc-fault protection. They detect arc-faults through chip-based detection procedures and cut off the power supply when a fault-arc occurs in the circuit, providing arc-fault protection. According to the statistics of the China Fire Yearbook, the proportion of electrical fires among all fires is increasing year by year and 70% of electrical fires are caused by fault-arcs. The ADDF-63 series Arc Fault Detection Device can effectively reduce the risk of fires caused by fault-arcs.
ContentTechnical ParametersStandardsIEC/EN62606; IEC60898-1ApprovalsCQCNumber of poles2Rated current In, A6, 10, 16, 20, 25, 32, 40, 50, 63Rated voltage Ue, VAC230/240Rated insulation voltage Ui, V500Rated frequency, Hz50Rated short-circuit breaking capacity Icn, A4500Rated impulse withstand voltage Uimp, V4000Dielectric strength test voltage for 1min, V2000Mechanical and electrical endurance, cycles4000Protection degreeIP20Connection capacity, mm²25Terminal tightening torque, N.m2.5Instantaneous tripping typeType C (5-10) InAmbient temperature, ℃-25~+40
About the supplier
Main products: AC breaker, Circuit breaker, Small breaker ( low-voltage apparatus), Switch disconnector/Circuit breaker, Surge protector, Earth Leakage Circuit Breaker, GFCI (Ground Fault Circuit Interrupter), Signal Lamp Circuit Breaker
