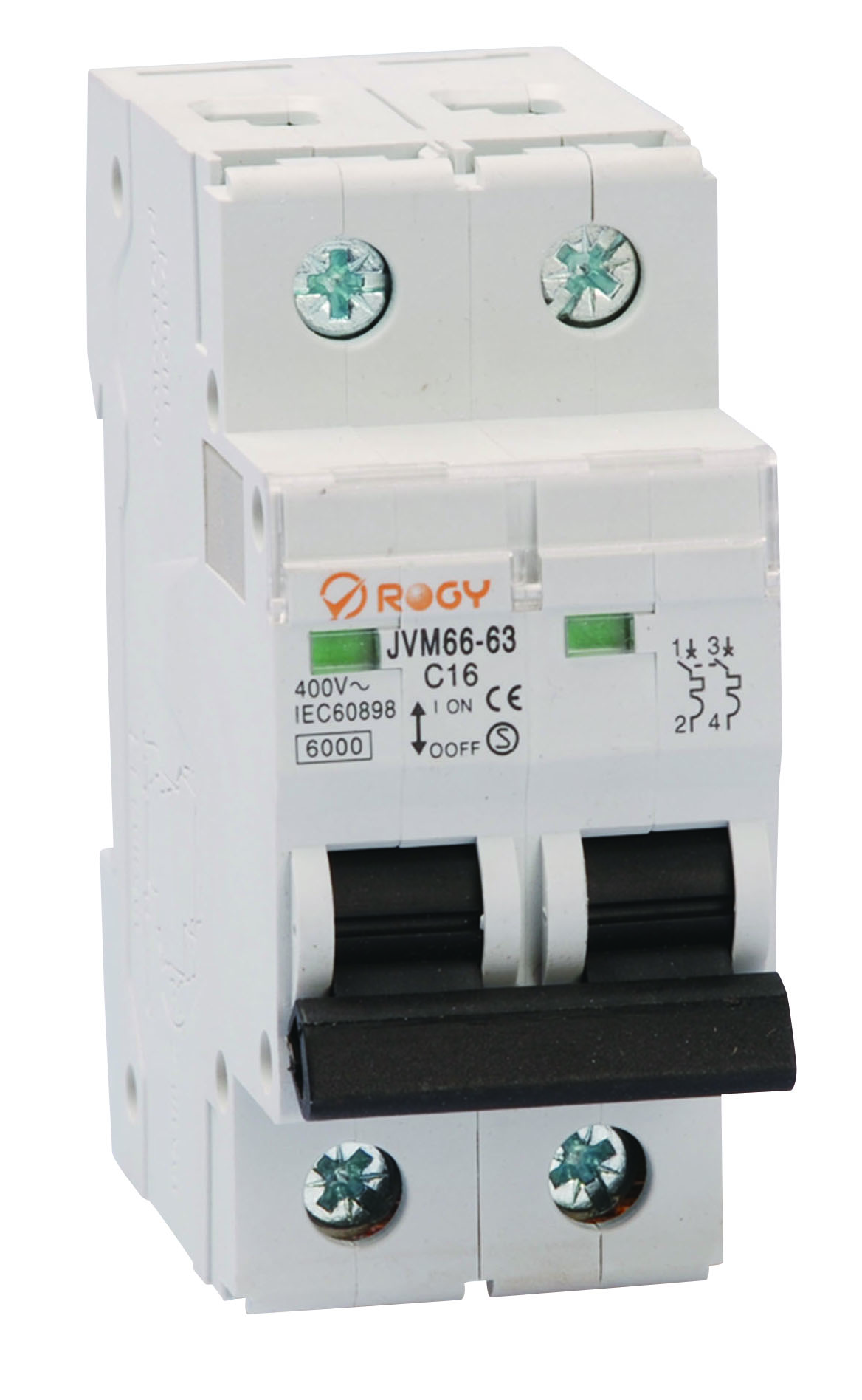

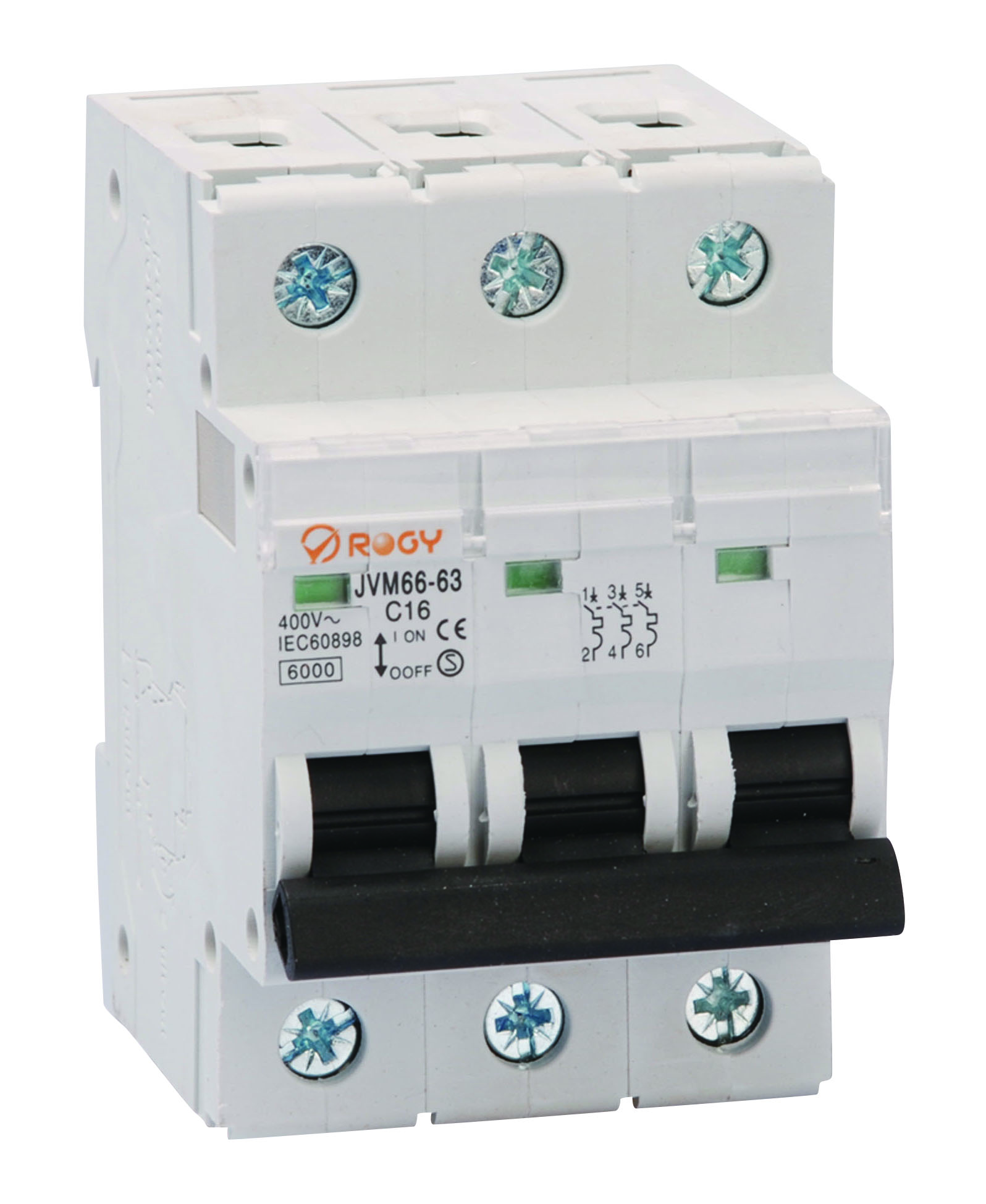

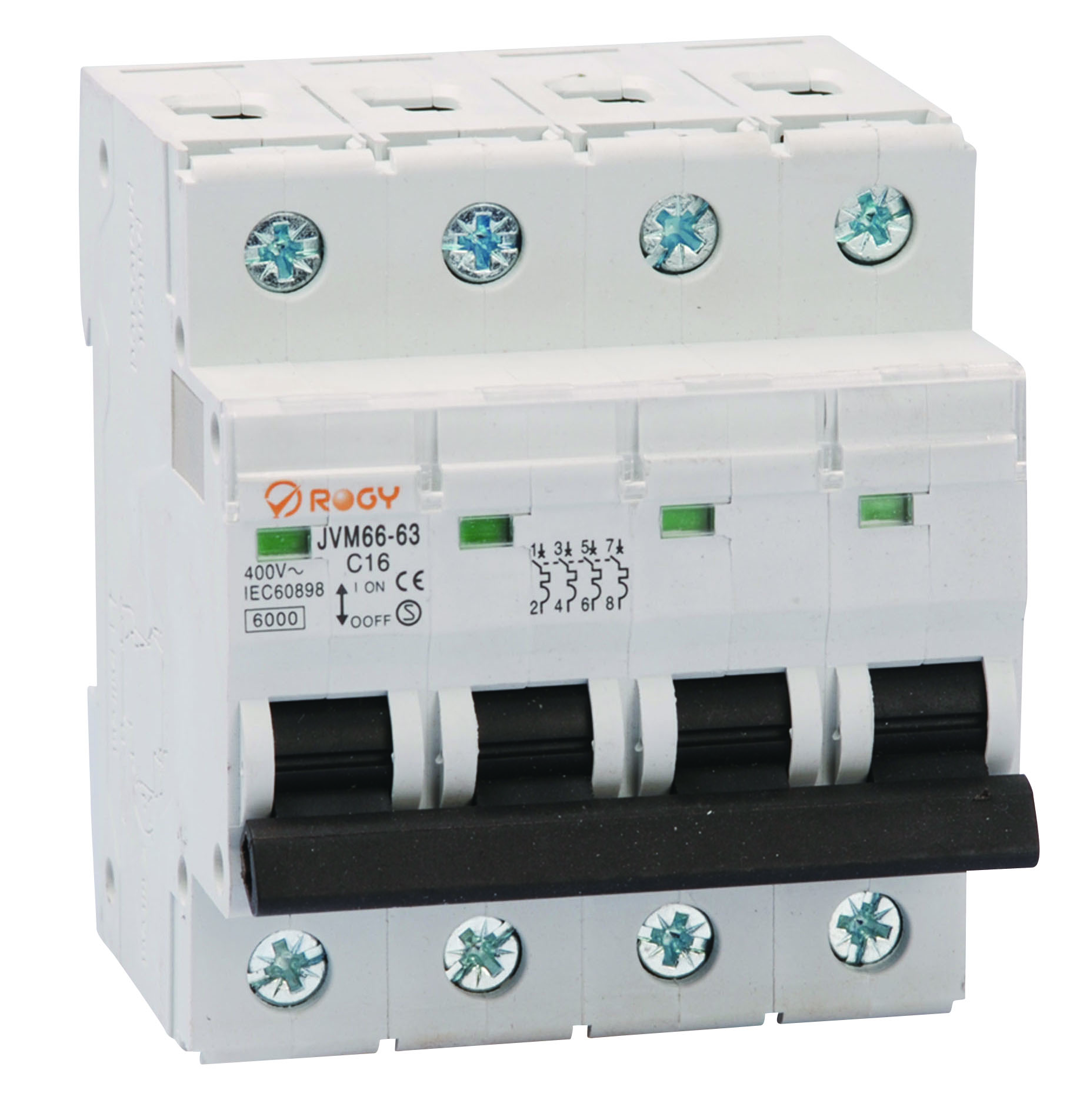

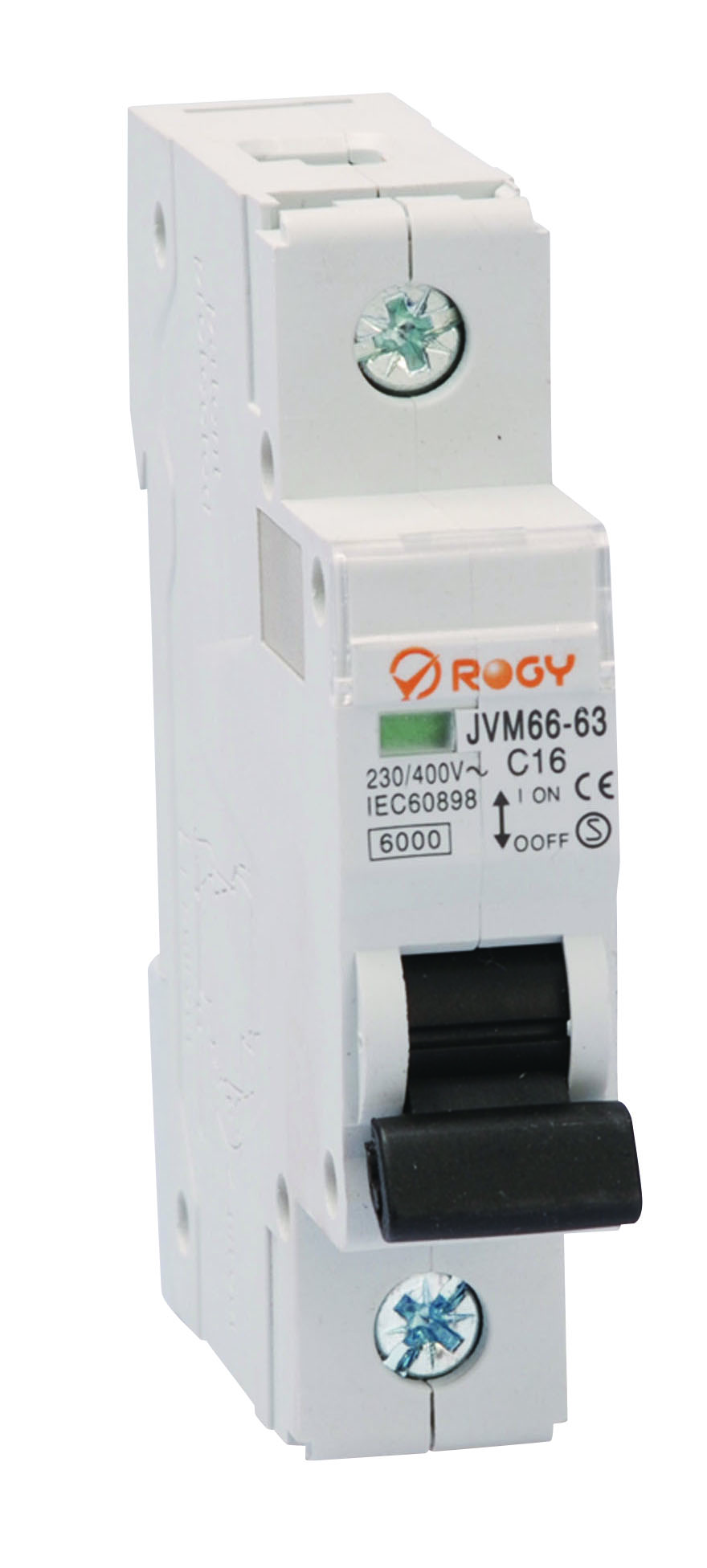

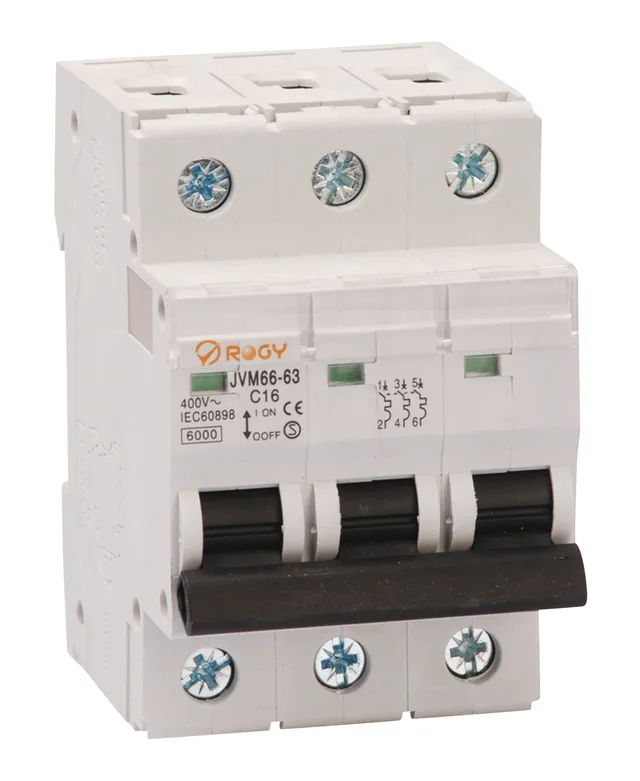

Miniature Circuit Breaker
SHANGHAI YONGJI ELECTRICAL CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Miniature Circuit Breaker
SHANGHAI YONGJI ELECTRICAL CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: JVM66-63
- Size: 81
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: JVM66-63
- Size: 81
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | JVM66-63 |
|---|---|
| Size | 81 |
Product details
| Materials | JVM66-63 |
|---|---|
| Size | 81 |
From the supplier
Construction and Feature
Fine and unique appearance
Short-circuit and overload dual-protection performance
High-breaking capacity (10KA) that is leading among the world similar products
Unique label, transparent window
Convenient and reliable installation mode
Technical Data
Model:JVM66-63
Pole No.:1P, 2P, 3P, 4P
Rated current:1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63A
Rated working voltage:24/415V
Rated frequency: 50/60Hz
Rated frequency (miniature circuit breaker):400V
Curve (miniature circuit breaker):B, C, D
High short-circuit breaking capacity:6000A(6KA)
Instantaneous tripping current:5In (B type) 10In (C type) 20In (D type)
Instantaneous non-tripping current:3In (B type) 5In (C type) 10In (D type)
Mechanical life:4000 times
Degree of protection:IP20
Wiring mode:Front wiring
From the supplier
Construction and Feature
Fine and unique appearance
Short-circuit and overload dual-protection performance
High-breaking capacity (10KA) that is leading among the world similar products
Unique label, transparent window
Convenient and reliable installation mode
Technical Data
Model:JVM66-63
Pole No.:1P, 2P, 3P, 4P
Rated current:1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63A
Rated working voltage:24/415V
Rated frequency: 50/60Hz
Rated frequency (miniature circuit breaker):400V
Curve (miniature circuit breaker):B, C, D
High short-circuit breaking capacity:6000A(6KA)
Instantaneous tripping current:5In (B type) 10In (C type) 20In (D type)
Instantaneous non-tripping current:3In (B type) 5In (C type) 10In (D type)
Mechanical life:4000 times
Degree of protection:IP20
Wiring mode:Front wiring
