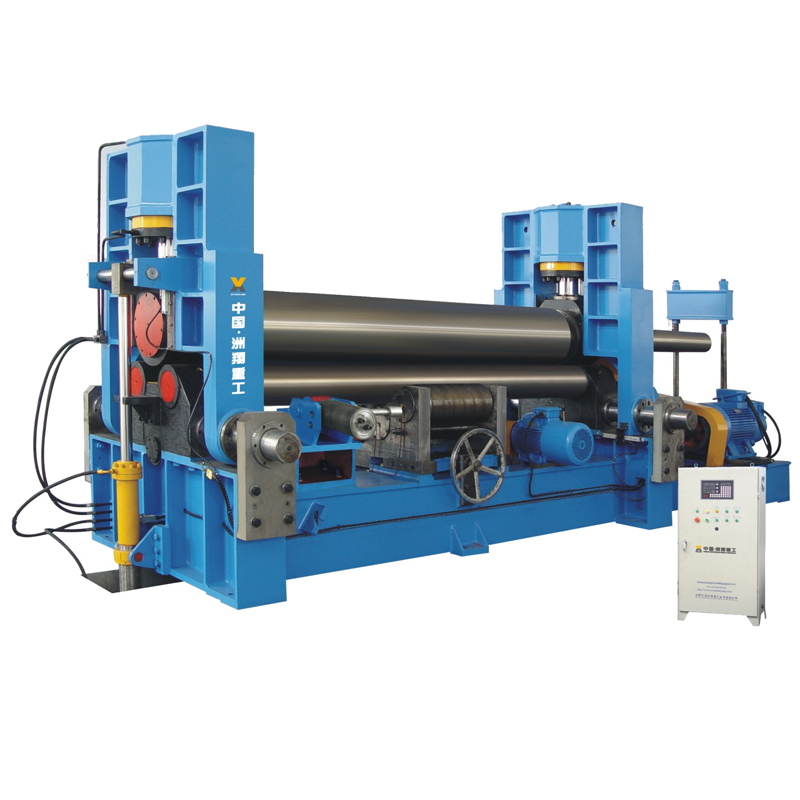

This machine, using the principle of three points defining one circle, is specialized equipment for rolling metal sheets into arc-shaped and cylindrical piece, which has the following actions:

1. The upper roller moves vertically. Power: hydraulic cylinder. Functions: to exert pressure on the plates to ensure that bending deformation occurs.

2. The lower rollers rotate. Power: electric motors. Functions: to move plates, and to exert pressure on them in order to make them bend and deform continuously to become cylinders.

 3. The upper roller moves horizontally. Power: hydraulic cylinder. Functions: to change the distance between the upper roll and lower rollers to achieve plates end-prebending to reduce the length of remain edge.

4. Flipping Bearings flip and relocate. Power: Hydraulic cylinder. Functions: remove the finished cylinders.

\n \n Normal\n 0\n \n \n \n 7.8 lbs\n 0\n 2\n \n false\n false\n false\n \n EN-US\n ZH-CN\n X-NONE\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n\n\n\n\n

Technical parameter

1．Max thickness　　　　　　　　　                        25mm

2．Max width    　                                      2500mm

3．Plate limit of yielding　　　　　　　                   σs≤245MPa

4．Max pre-bending thickness　　　　　　　                   20mm

5．Min. bending diameter of full load  　                   Φ1100mm

6．Upper roller’s diameter    　　                         Φ380mm

7. Lower rollers’ diameter      　　　                       Φ220mm

8.supporting rollers’ diameter：                             Φ230mm

9.quantity of supporting rollers：                               1set

10. Center distance of lower rollers:                            360mm

11. Max pressure on the upper roller:                          190Tons

12．Rolling speed:　　　                                   4m/min

13．Main motor power:   　                                 22KW

14. Hydraulic motor power:                                   7.5KW

15. Assistant motor power:                                    4KW

"}
