Aluminum flexible duct forming machine
NANTONG ZHENHUAN TRADE CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
From the supplier

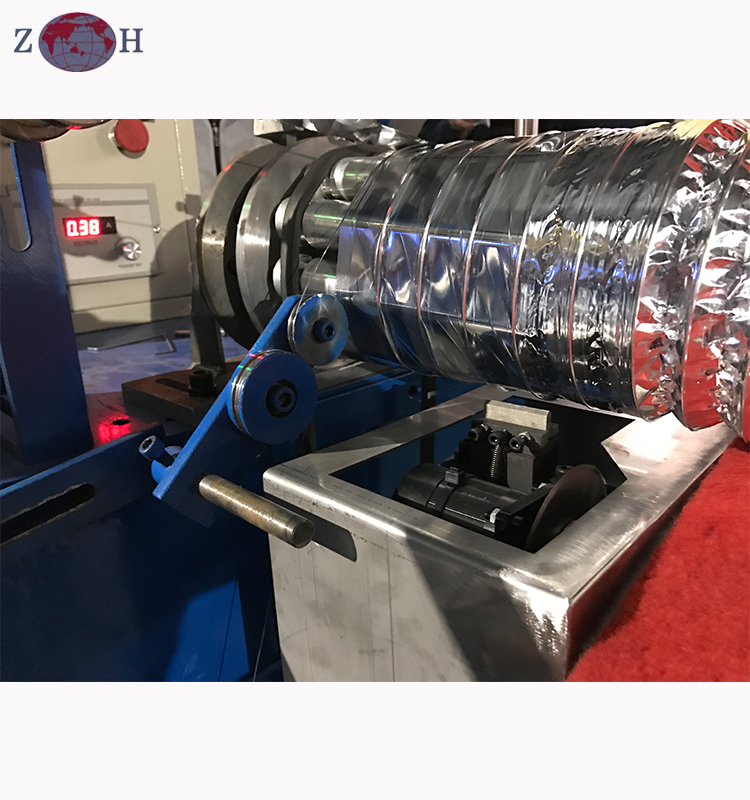

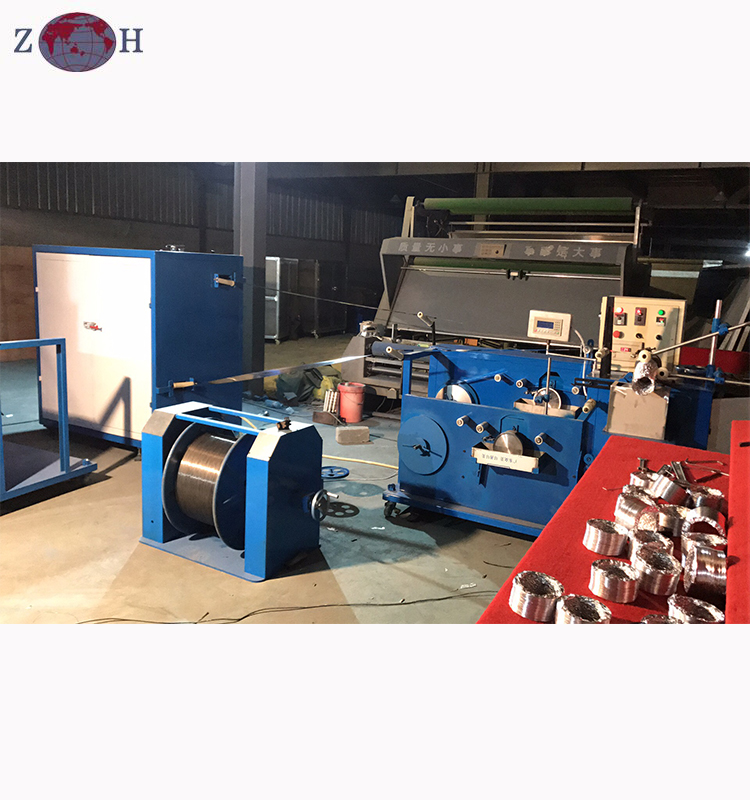

This machine is specially for producing aluminum flexible ducts with aluminum foil or metalized PET film with steel wire reinforced for ventilation purpose.
I Main technical data
No.
Item
Data
1
Diameter range
60-600mm
2
Length of aluminum tube
1-10m
3
Raw material
metalized PET film, 0.023mm, width 40-60mm, Steel wire 0.8-1.4mm dia.
4
Dimension (L x W x H)
Main machine: 1900 x 1000 x 1400mm
Heating oven: 1600 x 1100 x 1200mm
5
Weight
About 950kg
6
Main motor power
1.5kW
7
Temperature
40~120º
8
Electric heating power
2.4kW
9
Working speed
1~35m/min
10
Feature of finished ducts
Temperature resistance: -30°C-140°C
Max. air flux: 30m/s
Max. working pressure: 2500Pa
Pitch between corrugations: 20mm
From the supplier
This machine is specially for producing aluminum flexible ducts with aluminum foil or metalized PET film with steel wire reinforced for ventilation purpose.
I Main technical data
No.
Item
Data
1
Diameter range
60-600mm
2
Length of aluminum tube
1-10m
3
Raw material
metalized PET film, 0.023mm, width 40-60mm, Steel wire 0.8-1.4mm dia.
4
Dimension (L x W x H)
Main machine: 1900 x 1000 x 1400mm
Heating oven: 1600 x 1100 x 1200mm
5
Weight
About 950kg
6
Main motor power
1.5kW
7
Temperature
40~120º
8
Electric heating power
2.4kW
9
Working speed
1~35m/min
10
Feature of finished ducts
Temperature resistance: -30°C-140°C
Max. air flux: 30m/s
Max. working pressure: 2500Pa
Pitch between corrugations: 20mm
