About this product
- Materials: steel, aluminum iron and rubber
- Size: 10500*30000*5700mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: steel, aluminum iron and rubber
- Size: 10500*30000*5700mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | steel, aluminum iron and rubber |
|---|---|
| Size | 10500*30000*5700mm |
| Color | Zhouxiang standard blue |
Product details
| Materials | steel, aluminum iron and rubber |
|---|---|
| Size | 10500*30000*5700mm |
| Color | Zhouxiang standard blue |
From the supplier

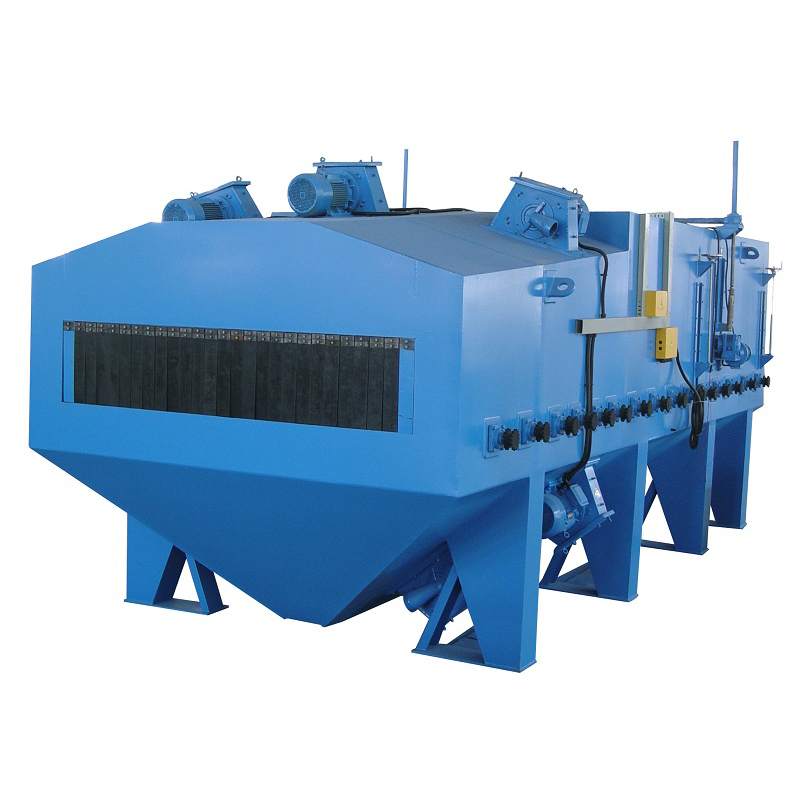

Shot-blasting machine is a kind of shot-blasting equipment, which is applied to clean the surface of steel structure welding workpiece, H-style steel, plate and other profiles. It can clean away rusty spot, rusty scale, welding slag on the workpiece surface, as well as welding stress, in order to remove stress and improve surface lacquer quality and rot proofness of steel structure and steel.
Technical parameter
- Size of workpiece
Width×height ≤800×1600㎜
Length 3000-15000㎜
- Quality requirement Sa2.5, Ra15-50
- Impeller head (8)
Model of impeller head QZ320
Quantity of shot-blasting 8×200kg/min
Turning speed 2940r/min
Shot blasting speed: 73m/s
Driving power: 8×11KW
- Workpiece conveying system
Length of input roller conveyor 12000mm
Length of output roller conveyor 12000mm
Load capacity of roller conveyor 1000kg/m
Conveying speed 0.5-5m/min
- Shot conveying system
Capacity of shot conveying 120T/h
- Longitudinal screw conveyor
Driving power 5.5KW
- Power of bucket hoister
Driving power 7.5KW
Hoisting speed 1.5m/s
Hoisting capacity 120T/h
- Power of curtain separator
Driving power 4KW
Width of curtain 2000mm
- Steel shot diameter ф0.8-ф1.2mm
- Model of dusting system: LMF-I
Discharge quantity ﹤120mg/m3
Wind speed of the gate ﹤5m/s
Handling volume of dusting system 15000m3/h
Quantity of filter core 12
Filtering area (12×20) 240㎡
- Centrifugal ventilator Model 4-72-5A
- Centrifugal ventilator air volume 15000m3/h
- Centrifugal ventilator wind pressure 2022 Pa
- Centrifugal ventilator power 15KW
- Cleaning system ventilator power 15KW
- Overall power ≈140KW
- Whole machine air volume 15000m3/h
From the supplier
Shot-blasting machine is a kind of shot-blasting equipment, which is applied to clean the surface of steel structure welding workpiece, H-style steel, plate and other profiles. It can clean away rusty spot, rusty scale, welding slag on the workpiece surface, as well as welding stress, in order to remove stress and improve surface lacquer quality and rot proofness of steel structure and steel.
Technical parameter
- Size of workpiece
Width×height ≤800×1600㎜
Length 3000-15000㎜
- Quality requirement Sa2.5, Ra15-50
- Impeller head (8)
Model of impeller head QZ320
Quantity of shot-blasting 8×200kg/min
Turning speed 2940r/min
Shot blasting speed: 73m/s
Driving power: 8×11KW
- Workpiece conveying system
Length of input roller conveyor 12000mm
Length of output roller conveyor 12000mm
Load capacity of roller conveyor 1000kg/m
Conveying speed 0.5-5m/min
- Shot conveying system
Capacity of shot conveying 120T/h
- Longitudinal screw conveyor
Driving power 5.5KW
- Power of bucket hoister
Driving power 7.5KW
Hoisting speed 1.5m/s
Hoisting capacity 120T/h
- Power of curtain separator
Driving power 4KW
Width of curtain 2000mm
- Steel shot diameter ф0.8-ф1.2mm
- Model of dusting system: LMF-I
Discharge quantity ﹤120mg/m3
Wind speed of the gate ﹤5m/s
Handling volume of dusting system 15000m3/h
Quantity of filter core 12
Filtering area (12×20) 240㎡
- Centrifugal ventilator Model 4-72-5A
- Centrifugal ventilator air volume 15000m3/h
- Centrifugal ventilator wind pressure 2022 Pa
- Centrifugal ventilator power 15KW
- Cleaning system ventilator power 15KW
- Overall power ≈140KW
- Whole machine air volume 15000m3/h
