Product Description

Sand suction pump machine is also known as horizontal simple sand suction pump. The sand suction pump machine is suitable to extract small granular sand. River sand suction pump uses the principle of centrifugal force. The sand suction pump machine produces a huge suction by the high speed rotation of the impeller, so that the sand suction pump machine can carry out high efficient sand extraction task. The sand suction pump machine is commonly used in pumping system that move sand deposits to long distance. This kind of centrifugal sand suction pump machine has good price and high performance in our 10 kinds of sand pump machines. At present, the dredger equipped with sand suction pump machine is our main export products. The customers can choose the type of sand suction pump and corollary equipment according to their own requirements.

Specification20”  2480 20 750 67518”  1950 20 750 45016”  1500 20 750 220 14”  1100 20 750 175 12”  900 20 900 14510”  480 15 1200 132 8”  360 15 120090 6” 26012  1400564”15012140022SizeFlow(m³/h)Head(m)Speed(rpm)Power(KW)

Remark:  1.  All these pump have two types: double flange one and single flange
                    one, please choose according to your actual requirements.
               2. The pump material can be iron casting, alloy according to different
                   site situation requirements.
The information in the table is not complete. Please click here to get more detailed data.

Features

1. Single stage, single suction, centrifugal sand pump.
2. Easy operation, transportation and maintenance.
3. Open impeller, wear resistance, big flow and better non-blockage performance.
4. Two types: double flange and single flange.
5. Two materials: iron cast and alloy.

Application

1. Mainly used for pumping sand from small river, lake, pond, pool.
2. Unloading or sucking sand from large dredger.

Successful cases

Our customer from Guangzhou extracted sand in the inland river, the sand was pumping to transport vessel directly. The depth of water was 10m. The customers’ requirements were as follows, the output of sand was 200m3/h – 250m3/h, the volume of the sand dredging machine should be small, and the dredging equipment should be easy to install. The customer had a set of 150kw diesel engine.

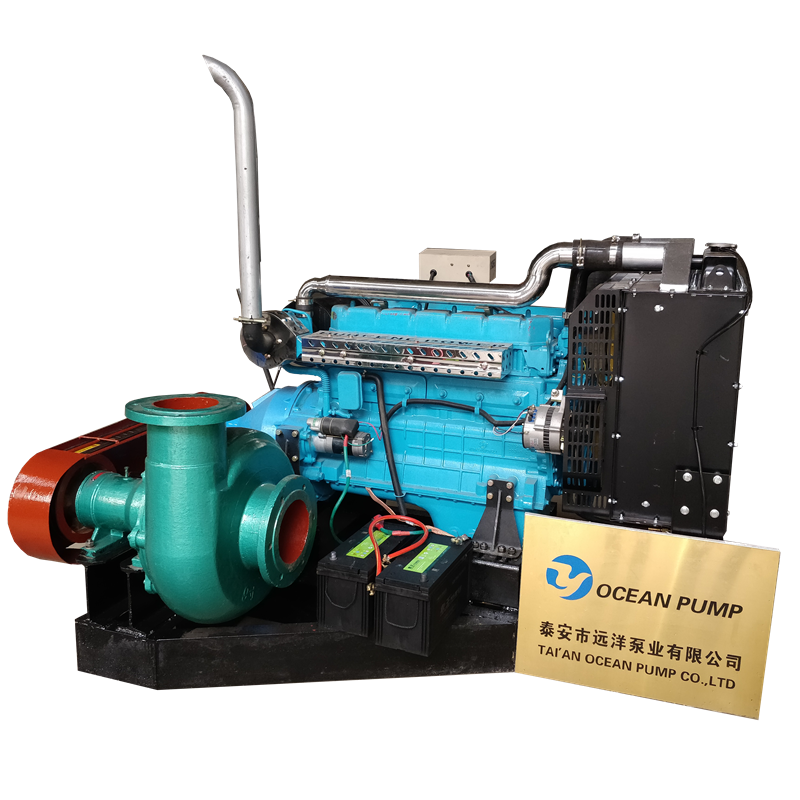

According to the similar construction experience and the customer’s actual operation requirements, our technical team recommended 12PS portable sand suction pump machine to the customer. This kind of sand pumping machine can meet the customers’ requirements. Its small size made it easy to install, move and operate. The over-flow parts were made of abrasion materials-chromium alloy. The advantages of the material were goog wear resistance, long life span, long parts replacement cycle, low maintain cost.

12PS Sand Suction Pump Machine ParametersFlow1000m³/hHead20mSpeed800rpmEntrance250mmExit250mmPower150kw



After several times of communication, the customer accepted our plan, and signed a contract to purchased a set of 12PS horizontal portable river sand suction pump. We arranged the production immediately after we received the deposit. Then we sent to sand suction pump machine to the customer’s construction site. After the sand suction pump machine arrived the working site, our technical team guided their operators to install by telephone and video. According to explain of our technical team, the operators of the customer matched the sand suction pump machine with diesel engine in short time, then they carried on a sand extraction experiment. The sand suction pump machine unit ran two hours, the output of sand was up to 530m3/h, the sand suction pump machine greatly improved the efficiency of our customer. They were very satisfied with the sand suction pump machine.
