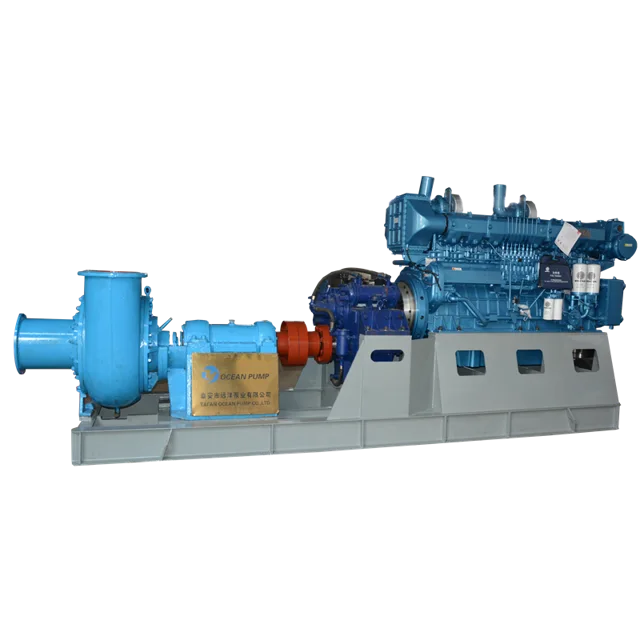

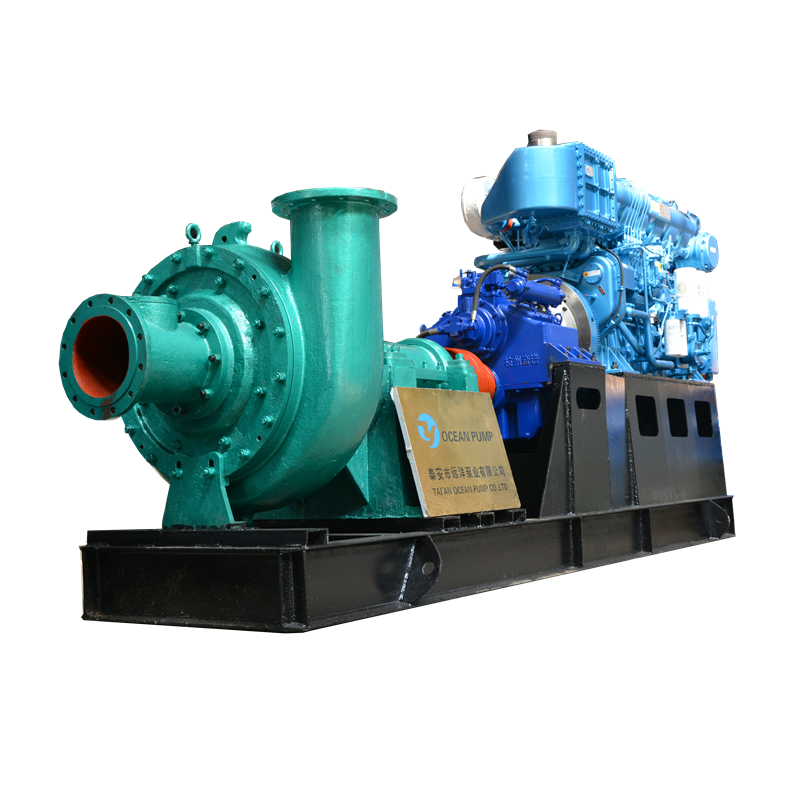

High Performance Sand Suction Machine with Long Life Span

More details please contact:

Maggie Wu

Whatsapp: +86 17806285992

Email: oceanpump14@tsbeng.com

Product Description

Sand suction machine is the powerful equipment to pump sand and gravel equipped on dredger ship or boat. Our sand suction machine is passed through the trial test and industrial operation test. sand suction machine has the characteristics of high qaulity, energy saving, high hydraulic efficiency, good wear resistance  and reliable operation in the delivery of solid particles. The sand suction machine is suitable for inland river dredging,  coastal embankment , coal mines, power plants and other enterprises to transport solid particles containing slurry, medium particles up to 50-80 mm. The sand suction machine is also used to pump sand or slurry in the river, lake, sea and reservoir,  land reclamation, pumping iron ore, gold sand.

Specification

Sand suction machine structure description diagram



sand pump specifications



TypeFlowHeadRotation rateDiesel engineImpeller diameterDiameter(inch)(m³/h)(m)(r/min)(hp)(mm)InletOutlet200PNS-305404898018055086410287307586250PNS-248503898025055010862021730122108250ND-2280022730150-2506201010250PNS-30111030730185-250650108250PNS-35145035730250670108350PNS-24165024730250-3005601412350PNS-35180035730350-4086901412400PNS-30220030730408-4506501614450PNS-30260030700520-6007201816500PNS-40285038700580-7207502016350DN-50240050550720-8189501614450DN-60315042550540-72010001816500DN-30392028550818-10009002016550DN-60400060500818-120010002218

The information in the table is not complete. Please click here to get more detailed data.

Features

1.Material : Using the cast iron ,cast steel or high wear resistant and strong corrosion resistance chrome alloy to make the over -flow part .

2.Long-term bearing life .The bearing assembly is composed of large diameter shaft and short overhang.

3.with distinctive innovation in hydraulic and structural design.

4.Large dredging depth, high density of dredging mud, good NPSH (net positive suction head)and strong suction lift ability.

5. the suction depth up to 35 meter under water, discharge head up to 60 meter and discharge distance up to 1000 meter-1500 meter without boost pump. The gravel size allow to pass through up to 80mm.

Application

Apply for sand suction and dredging, extracting mud for ship, marine reclamation land, wharf building electric power and metallurgical industry for conveying tailing, and in coal washing industry for filtering coal slime.

Successful cases

Zhejiang customers signed Yushan blowing sand reclamation project.They are pumping the dry sand in the sand transport vessel.The required distance is 800 -1500 meters, with sand output for 500m³/h.Our company designed the high efficiency sand pump to complete the construction program.

First of all, the high-pressure water pump jetting dry sand in the sand transport ship. And the sand-water mixture is drawn through multiple vertical silt pumps.Then the sand suction machine transport for long distance relay to complete the reclamation. After discussions with customers several times. Finally,customer signed three sets of procurement contracts for high efficiency sand suction machines.



Sand suction machine parameters for customer

Model450PNS-50Capacity2600m³/hHead50mRotate speed600rpmDiesel engineWeichai8170, 818hp, 1350rpmGear boxType 600 with reduction ratio2:1Inner diameter450mmout diameter400mm



We sent the sand suction machine units to the customer designated site. The customer actual use the sand suction machines, with high efficiency.Also sand suction machine is easy to operate, and high concentration of blowing.Customers are very satisfied with the sand suction machine. At present, the sand suction machine units have been constructed in Yushan for more than one year. After pumping 1.4 million square meters of sand, the impeller, guard plate and pump case can still be used continuously.And good wear-resisting makes the customer surprised, which reduce downtime and maintenance costs.
