Advantage:

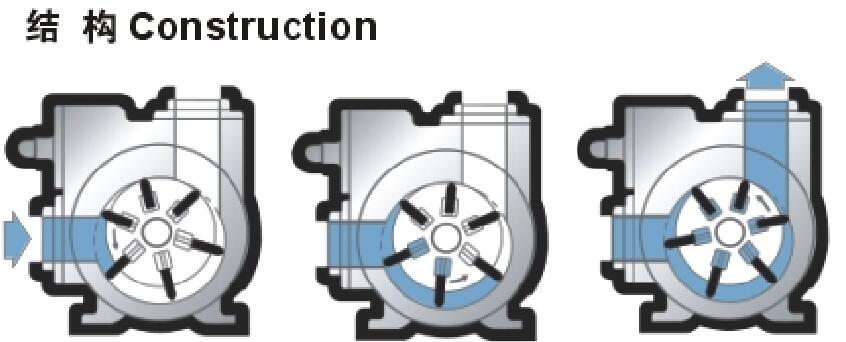

Durable pumps for fast and quiet operation. Sliding vane design provides sustained and trouble free operation, high reliability. Adjustable relief protects pump from excessive pressure.

Application:

Oil tank truck, Fleet refueling, Lube oil, Aviation refuelers, Transport of petro chemicals, gasoline, biofuels, solvents and many more.

1、Material

No.

Name

Material

1

Cylinder、Head

Cast Steel

2

Rotor

Nodular Cast Iron

3

Shaft

Alloy Steel

4

Bypass Valve

Cast Steel

5

Bypass Valve Cover

Cast Steel

6

Bypass Valve Spring

Spring Steel

7

O-Rings

Fluorine Rubber

8

Vane

Synthetic Material

2、Work Performance Data

Maximum Working Temperature

115℃

Viscosity

20,000SSU

Maximum Working Pressure

175PSI(1.2MPa)

Maximum Differential Pressure

125 PSI(0.86MPa)



\n \n 800x600\n \n\n \n Normal\n 0\n \n \n \n \n false\n false\n false\n \n EN-US\n ZH-CN\n X-NONE\n \n \n \n \n \n \n \n \n \n \n \n \n MicrosoftInternetExplorer4\n \n \n \n \n \n \n \n \n \n \n \n \n \n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n\n\n\n\n

Pressure (Bar)

2”

2.5”

3”

4”

1.5-3.5

×







3.5-5.2

×





×

3.5-7.6



×

×



5.2-7.6

×





×

7.6-8.6

×

×

×





"}
