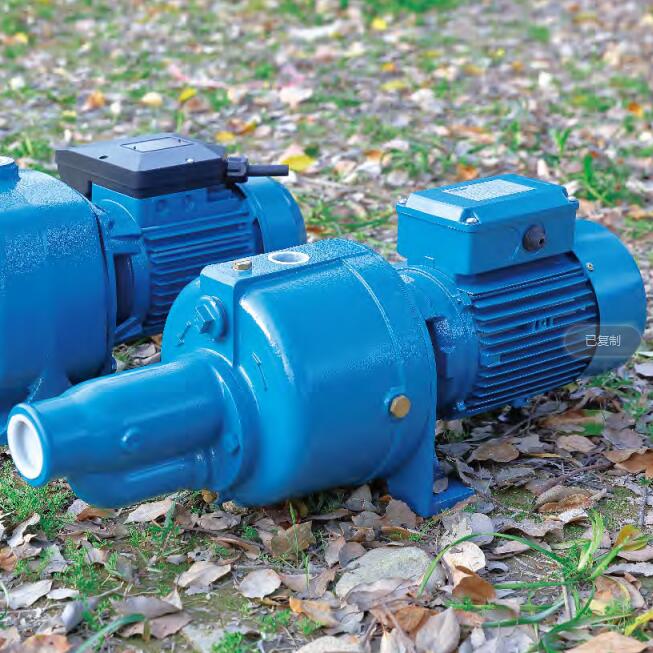

CAB series self-priming deep-well pump
FUJIAN ELESTAR MOTOR CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
CAB series self-priming deep-well pump
FUJIAN ELESTAR MOTOR CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Cast iron
- Size: 610*235*275
- Color: Blue
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
About this product
- Materials: Cast iron
- Size: 610*235*275
- Color: Blue
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
Product details
| Materials | Cast iron |
|---|---|
| Size | 610*235*275 |
| Color | Blue |
Product details
| Materials | Cast iron |
|---|---|
| Size | 610*235*275 |
| Color | Blue |
From the supplier
CAB Self-priming deep-well pumps consist of an ejector unit and a centrifugal pump. The ejector unit can be put in a 4" diameter well. These pumps are suitable to convey clean water or non-aggressive chemical fluids. They are suitable to pump water from deep well and supply water automatically by pressure tank and pressure control. It's always advisable to install a foot valve with a strainer on the bottom of inlet pipe.
1. Working conditions
* The maximum fluid temperature is 60 ℃
* The maximum ambient temperature is 40 ℃
* The maximum suction stroke is 9m
* Can work continuously for 24 hours
2. Structural characteristics
* Simplex
* Continuous work (S1)
* Motor housing: aluminum alloy
* Shaft: 45 # steel / stainless steel
* Insulation class: Class B / Class F
* Protection grade: IP44 / IP54
* Cooling method: air cooling
* Pump body: stainless steel
* Impeller: brass / PPO / stainless steel
* Mechanical seal: silicon carbide / ceramic / stainless steel
From the supplier
CAB Self-priming deep-well pumps consist of an ejector unit and a centrifugal pump. The ejector unit can be put in a 4" diameter well. These pumps are suitable to convey clean water or non-aggressive chemical fluids. They are suitable to pump water from deep well and supply water automatically by pressure tank and pressure control. It's always advisable to install a foot valve with a strainer on the bottom of inlet pipe.
1. Working conditions
* The maximum fluid temperature is 60 ℃
* The maximum ambient temperature is 40 ℃
* The maximum suction stroke is 9m
* Can work continuously for 24 hours
2. Structural characteristics
* Simplex
* Continuous work (S1)
* Motor housing: aluminum alloy
* Shaft: 45 # steel / stainless steel
* Insulation class: Class B / Class F
* Protection grade: IP44 / IP54
* Cooling method: air cooling
* Pump body: stainless steel
* Impeller: brass / PPO / stainless steel
* Mechanical seal: silicon carbide / ceramic / stainless steel
