Geologic Surveying&Mapping Electromagnetic Instrument Proton Magnetometer

About Product

WCZ-1B proton magnetometer is developed especially for home practical instance by referring abroad technique. It can measure magnetic in precision of 1nT. The resolving power can reach 0.1nT. These are in accord with the requirement of former Ministry of Geologic and Mineral, China. Its large memory, high resolution, agility make it a portable, mobile, base station fitted magnetometer. By changing the structure of the sonde, it can make the horizontal gradient measurement and the vertical gradient measurement at a resolution of 0.1nT.

Application

1. Mineral prospecting, such as iron ore, lead-zinc mine, copper mine.
2. Cooperative mine prospecting, study the ore body’s burial depth, dipping and continuity, study the ore body’s shape, size, estimate mineral bed’s scale.
3. Prospecting for gas or oil, research geologic structure relevant to gas or oil
4. Geologic survey, geologic mapping
5. Ground diurnal variation for aero-magnetic and marine magnetic survey
6. Faults orientation.
7. Archaeology
8. Hydrology
9. Engineering prospecting, e.g, pipeline finding.

10. Earthquake monitoring, volcano monitoring, and other environmental and disaster.
11. Small ferromagnetic objects' finding.

Technical specification

Transmitter WCZ-1 WCZ-3 Measuring range 20000nT~100000nT 20000nT~100000nT Accuracy 1nT 0.5nT Resolution 0.1nT 0.05nT Gradient permitted 5000Nt/m 8000Nt/m Data stored 100000 2000000 GPS antenna built-in no yes Interface RS 232 standard serial port RS-232 standard serial port Dimension 210x85x190mm,2.1kg 206x85x155mm,1.5kg

Features

1. Geomagnetic field and normal gradient of geomagnetic field (horizontal gradient component of geomagnetic field or vertical gradient component of geomagnetic field, need special sonde and support).
2. Suitable for field investigation and base station measurement.
3. Built-in precision clock, data and time coexist, regular measurement, and timely storage.
4. Large screen display, Chinese interface presentation, automatic display of magnetic curve, easy operation.
5. Backlit LCD screen, can be operated at night.
6. Private customized keyboard, use both hands, easy to control.
7. Automatic or manual tuning, as you like.
8. Lightweight and portable, the whole system adopts streamlined design, one person can complete all tasks.
9. RS-232C interface, communication without boundaries.
10. Equipped with geological software, drawing contour lines and sections, professional and accurate.

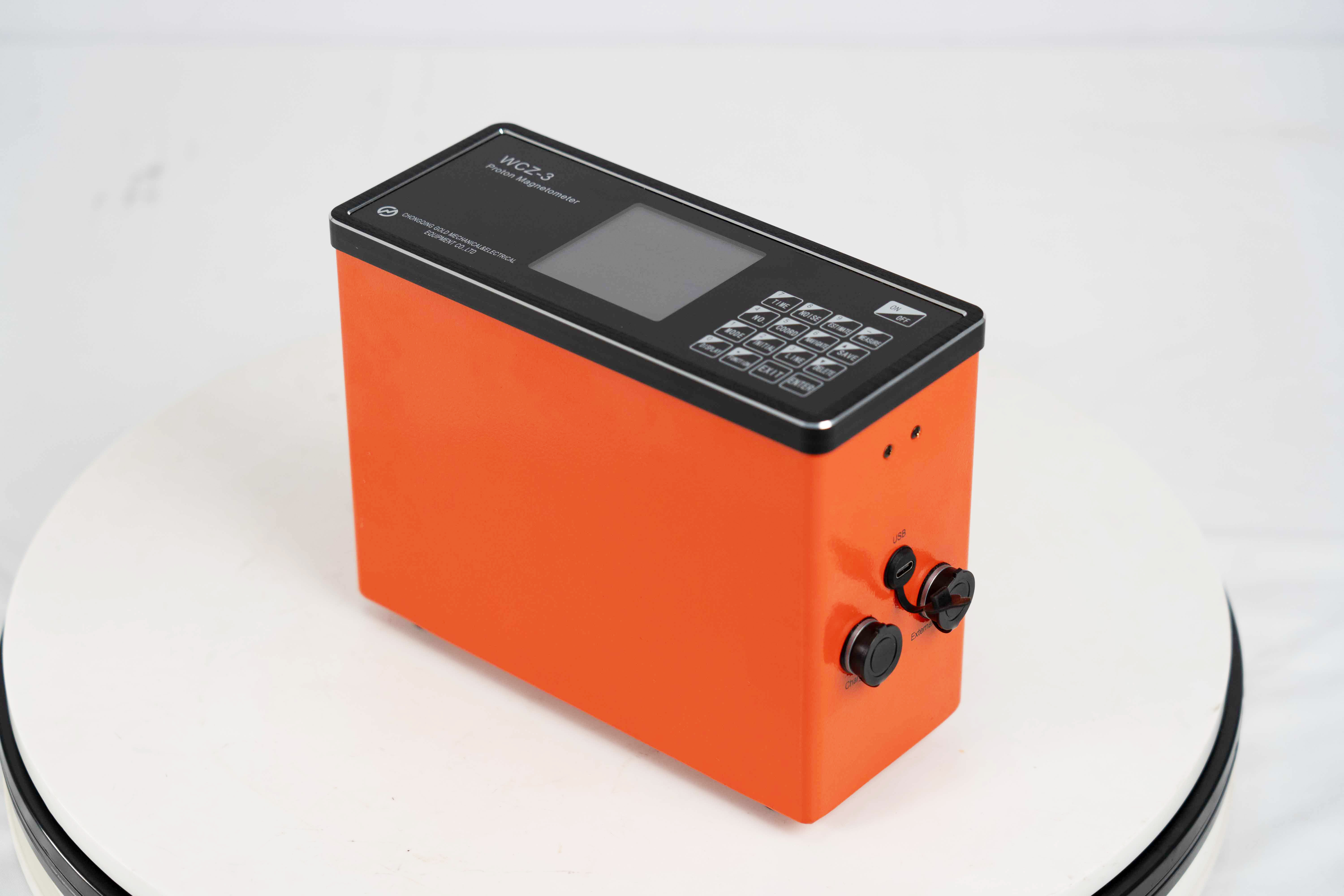

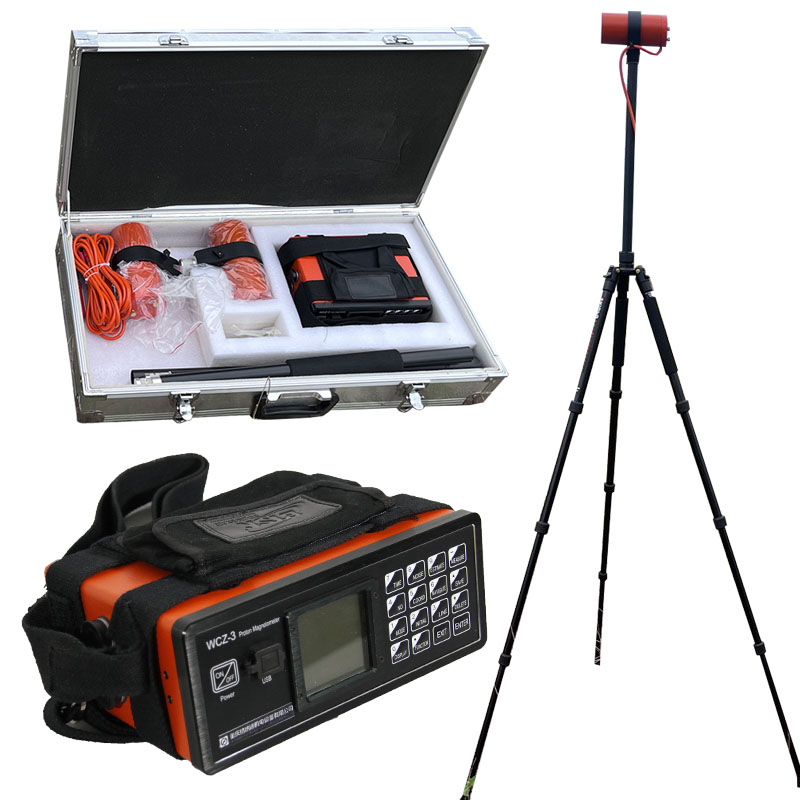

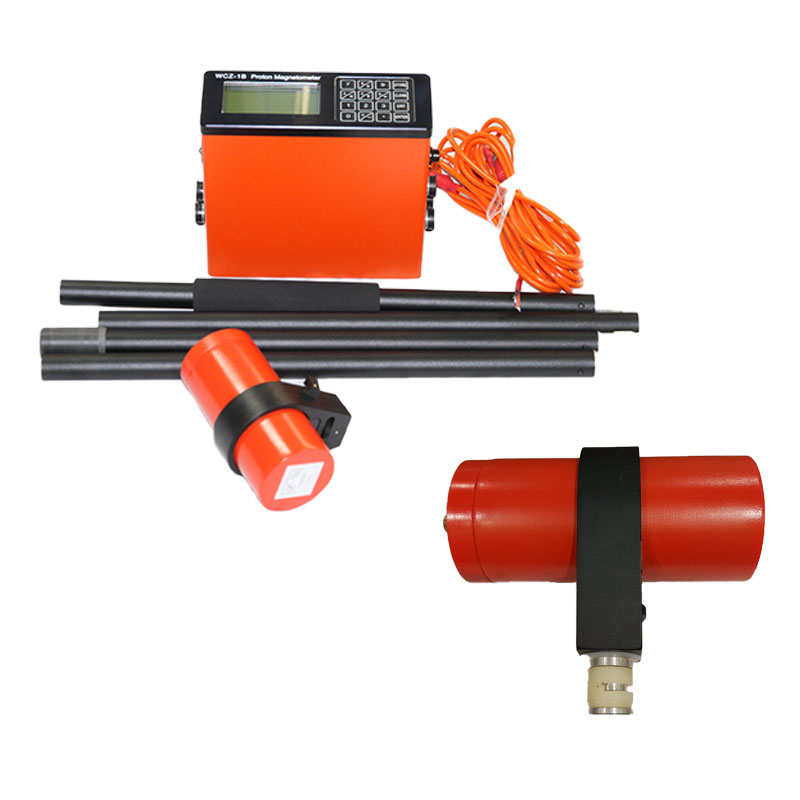

Product Show

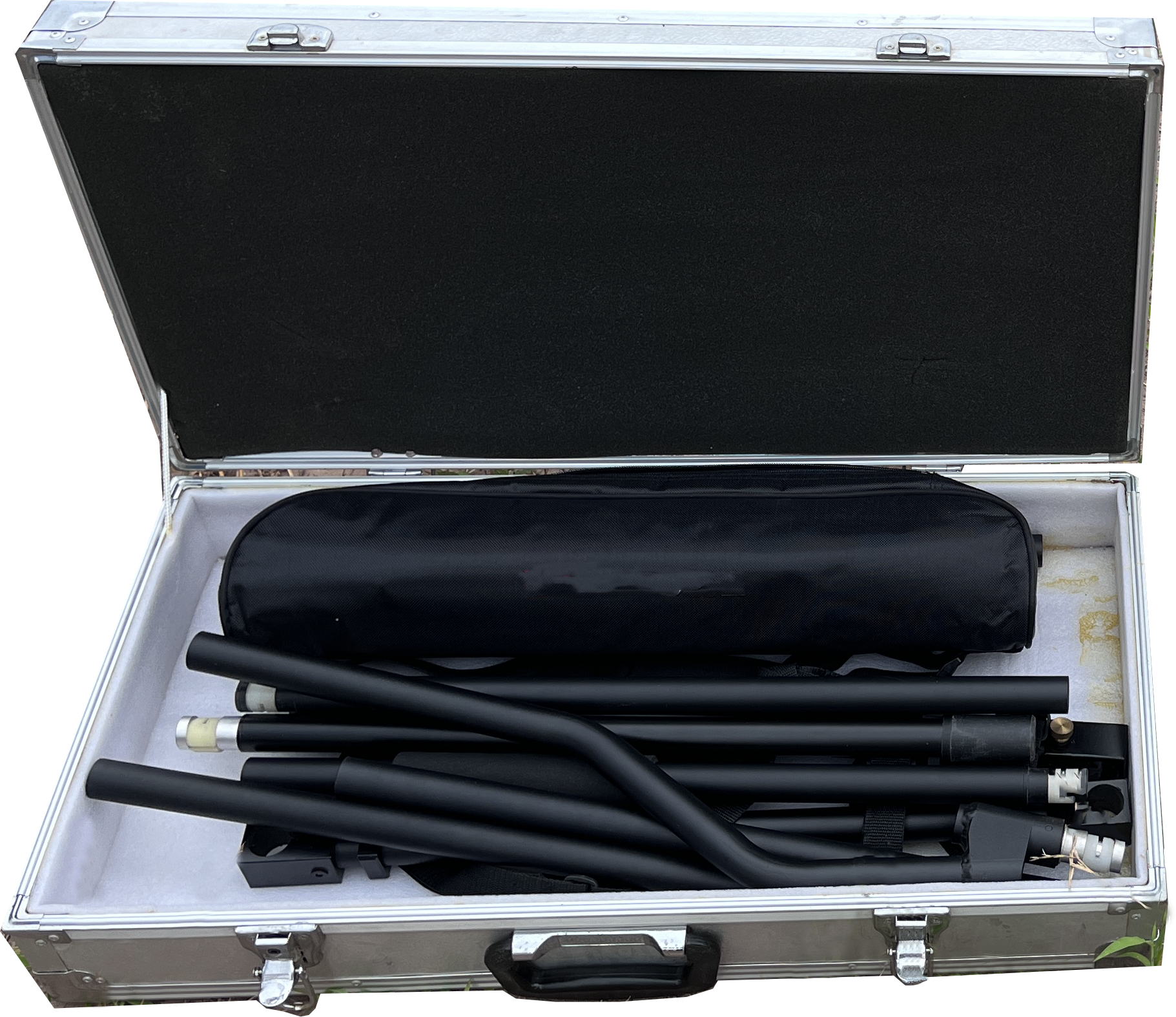

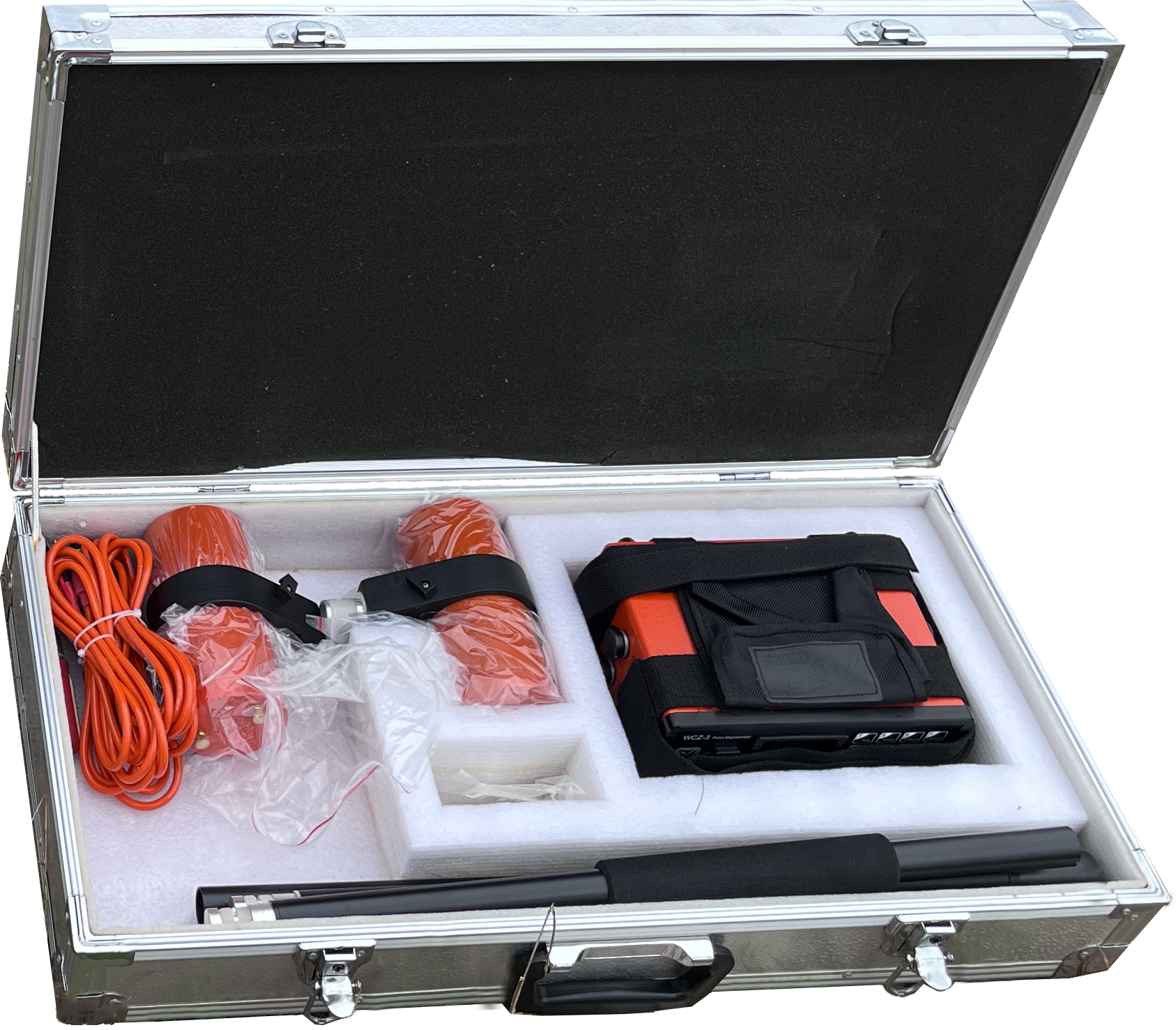

Packing
