About this product
- Size: 45*50*50CM
- Color: China
- Accuracy: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Chongqing, China
About this product
- Size: 45*50*50CM
- Color: China
- Accuracy: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Chongqing, China
Product details
| Size | 45*50*50CM |
|---|---|
| Color | China |
| Accuracy | Other |
From the supplier

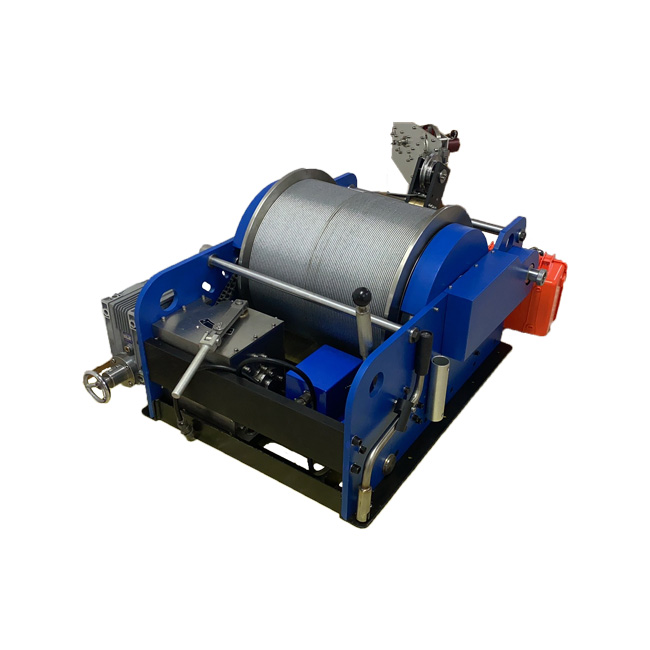

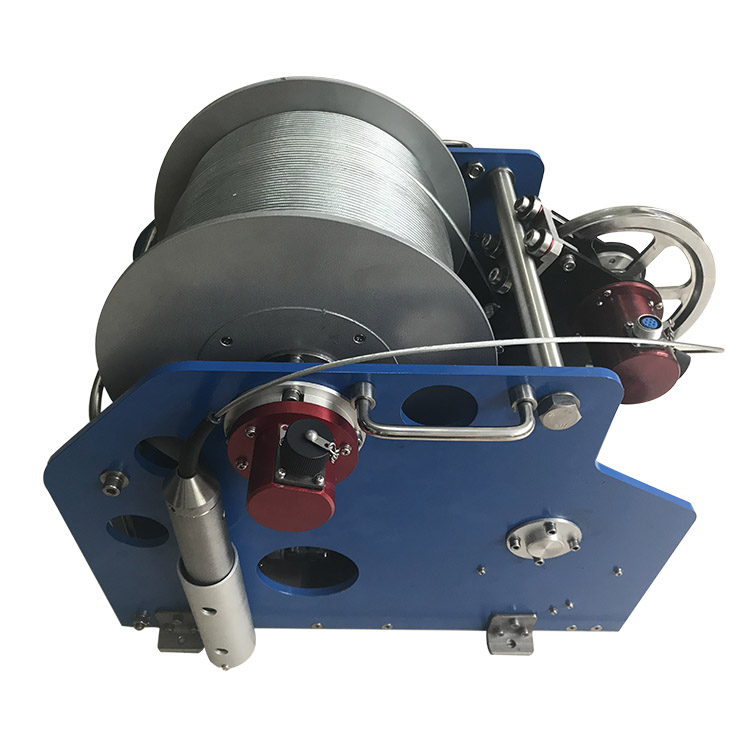

The winch equipped with GDQ-2D is currently the lightest electric logging winch. The winch is made of high-strength aluminum alloy. It has significant features such as non-magnetic, low sensitivity, light weight and durability. The winch works with stepless speed change and has a very reliable anti-slip function, manual function, and fully automatic tight cable arrangement function. Logging cables can range from armored single core to rubber multi-core according to the equipment required by the user. Everything from coaxial to multi-core spirals can be used. The JHQ-2D downhole tool does not have strict requirements on cables.

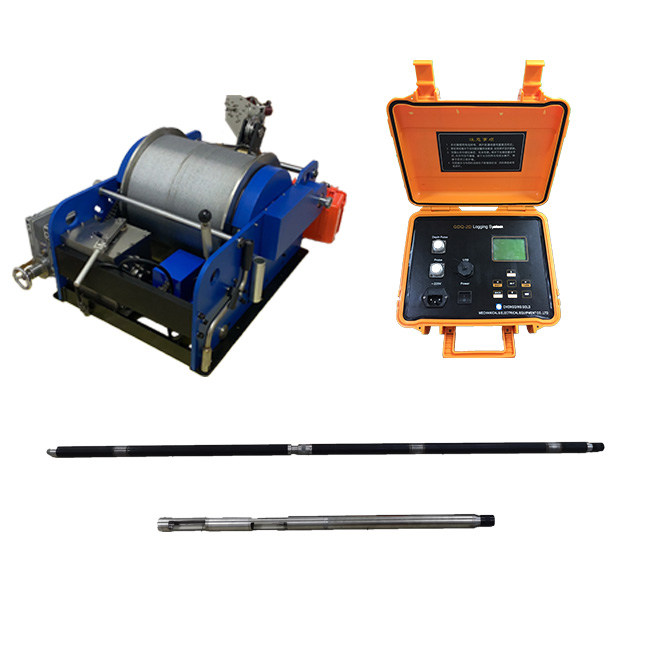

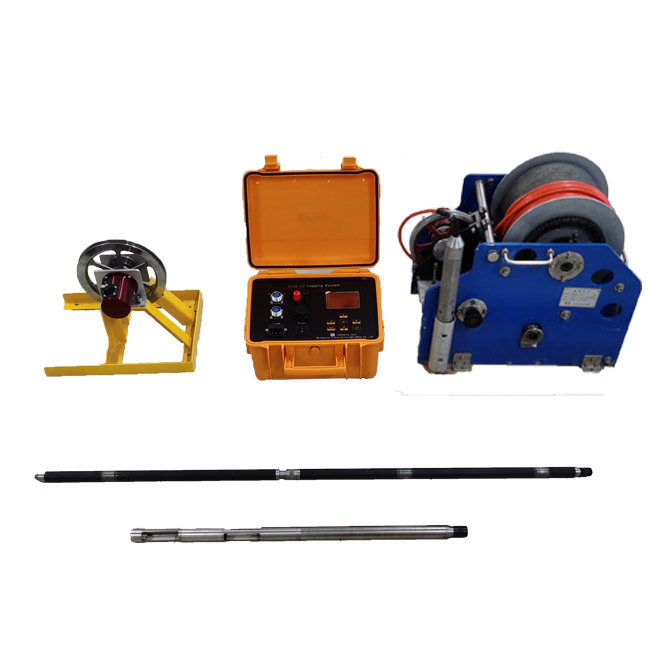

The GDQ-2D comprehensive CNC logging system is specially designed for the convenience of field work and can be connected to a digital logging system of various logging probe pipes. Since this system adopts a series of advanced technologies, the past heavy equipment of one downhole probe pipe corresponding to one surface instrument has been improved into a portable method in which one surface instrument can connect various logging probe pipes. The system can also be equipped with the following equipment:
Winch controller description
The DJQ winch controller is mainly used to control the speed and direction of the electric winch, as well as display the depth and speed of the cable. DJQ winch controller has the following product models:
DJQ-1 winch controller equipped with DJ1048, DJ1548 electric winch, no depth indication
DJQ-1A winch controller equipped with DJ1048 and DJ1548 electric winches, with depth indication
DJQ-2 winch controller equipped with DJ2048 electric winch, no depth indication
DJQ-2A winch controller equipped with DJ2048 electric winch, with depth indication
Technical Specification
Speed adjustment range: 0~30m/h
Depth range: 0~9999.99m
Control power: 1.5kW (DJQ-1); 2.2kW (DJQ-2)
Power supply: 220V 50Hz
Capacity
(m)
Cable
OD(inch)
ConductorSpeed
(m/h)
Lifting force Auto/Manual DJ0331 300 steel,1/8 1 600/1200 1.8/0.9 yes DJ0348 300 steel,3/16 4 600/1200 1.8/0.9 yes DJ0648 650 steel,3/16 4 800/1960 2.6/1.1 yes DJ1031 1000 steel,1/8 1 800/1960 2.6/1.1 yes DJ1231 1200 steel,1/8 1 800/1960 2.6/1.1 yes DJ1048 1000 steel,3/16 4 800/1800 5.9/2.6 yes DJ2048 2000 steel,3/16 4 660/1725 10/5.1 yes DJ2548 2500 steel,3/16 4 660/1725 10/5.1 yes DJ3048 3000 steel,3/16 4 660/1725 10/5.1 yes
Main Application
1.Advanced AC variable-frequency regulating speed technology
2.Automatic constant speed and manual speed control,automatic overload protection
3.Automatically calculate the depth,self-compensate depth error
4.Self-locking brake and manual brake.
