Underground Mineral Detector Electronic Measuring Instruments

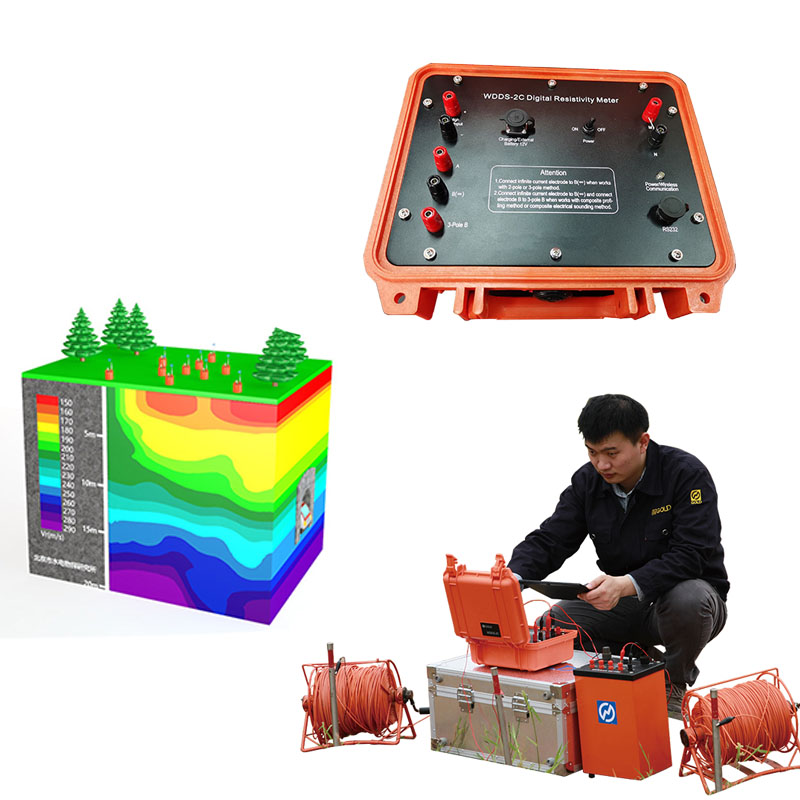

The WDDS-2C/3C digital resistivity meter, also referred to as the WDDS-2C/3C mainframe or WDDS-2C/3C meter, represents a cutting-edge DC resistivity tool. It incorporates 24-bit A/D technology and 32-bit microcontroller technology advancements, drawing on the innovative electrical equipment expertise of BTSK for resistivity surveys. This device finds application in various sectors, including hydrology, engineering geology, groundwater exploration, dam foundation assessment, mineral resource detection, urban geophysical surveys, railway and bridge inspections, and geothermal exploration.

FEATURE

nWith the incorporation of Bluetooth technology and wireless remote control features, users can experience seamless connectivity and enhanced operational flexibility.

nThe system offers Tablet PC operation with a wide array of powerful functions, providing users with advanced capabilities and ease of use.

nIt includes a grounding resistance check function, enabling users to ensure proper grounding and enhance system safety and reliability.

nFor efficient troubleshooting, the equipment comes equipped with fault diagnosis capabilities, allowing for quick identification and resolution of issues.

nDesigned to be light and flexible, the device ensures portability and ease of handling during field operations, enhancing user convenience.

nBoasting a large power supply, wide operational range, and high precision, the equipment delivers reliable and accurate results across various applications.

APPLICATION

1.By utilizing the apparent resistivity parameters WDDS-2c resistivity meter is widely used in hydrology,environmental protection, engineering geophysical exploration,metal and non-metal mineral resources exploration.

2.This instrument applies to electrial prospecting such as vertical electrical sounding,electrical profiling,charging method and spontaneous potential method on ground and in trench.

Hydrological

Coal

Oil&Gas

Geothermal

Solid Metal Ore

Construction Engineering

TECHNICAL PARAMETERS

Parameter WDDS-2c max voltage ±1000V max current ±3.5A voltage channel ±24V,±0.5%±1byte,24A/D voltage max sampling resolution 0.01μV input resistance ≥50MΩ SP compensation range ±10V Current channel 3.5A,±0.5%±1byte,24A/D Current max sampling resolution 0.02μA Port A、B、M、N、DC、RS-232、USB、 and so on Size 270*246*175mm Work temperature -10℃~50℃，95%RH

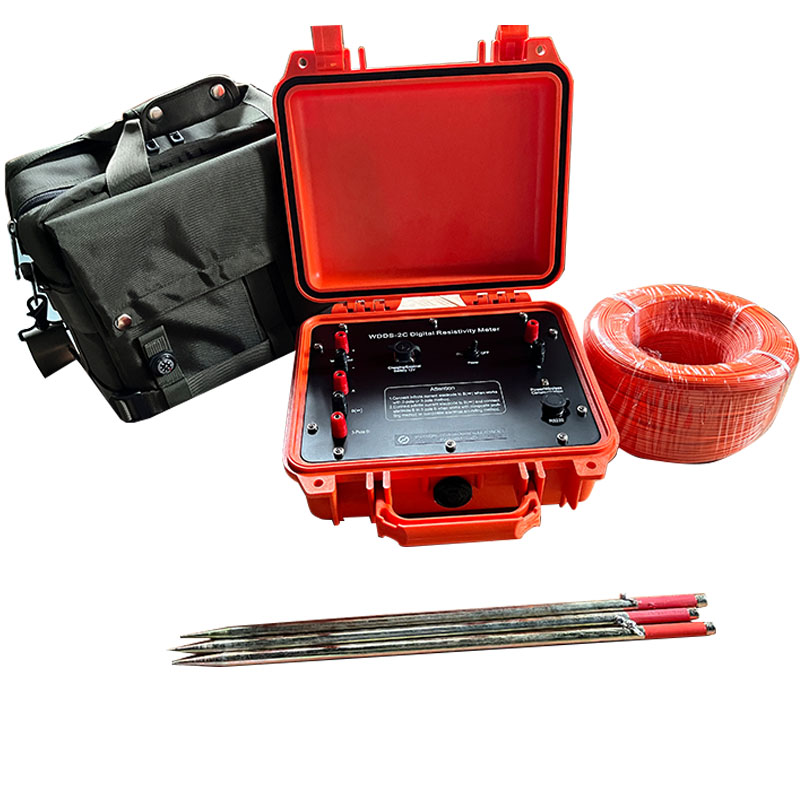

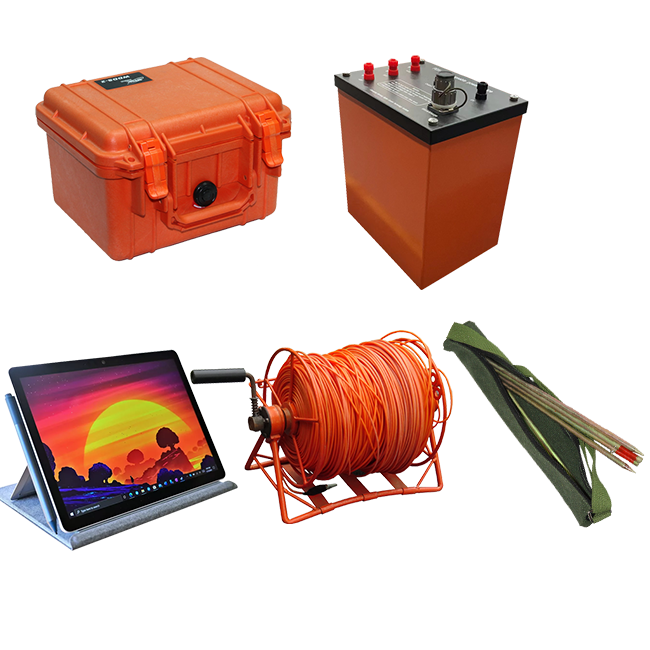

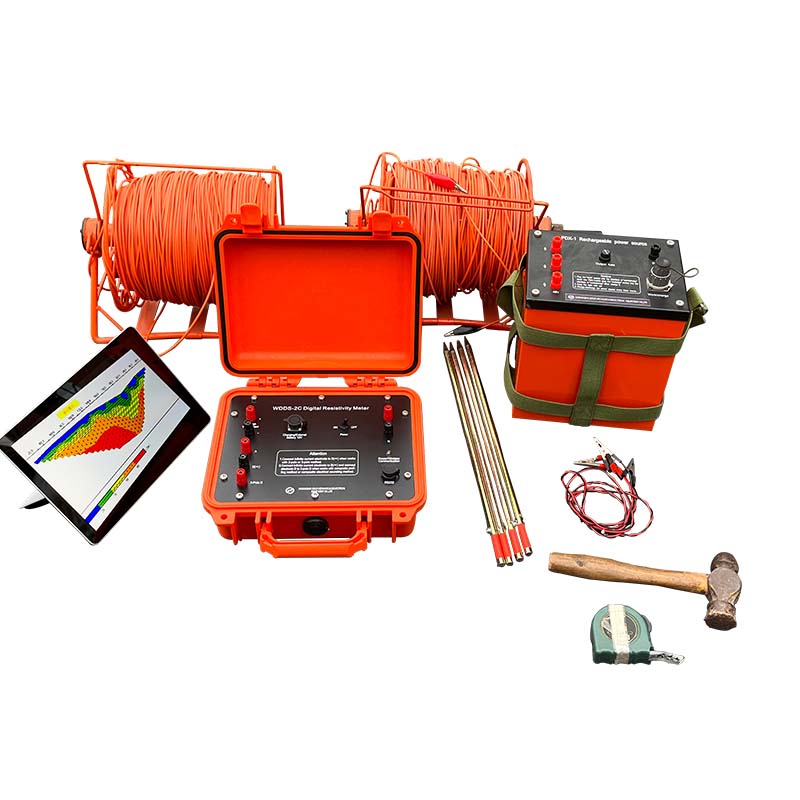

CONFIGURATION

No.

Name

Pictures

1

WDDS-2C Digital DC Resistivity Instrument

2

IPAD

3

Copper Eelectrode

4

AB Wire(112 core), 500m /Roll

5

MN Wire, 500m/roll

PACKAGING AND DELIVERY
